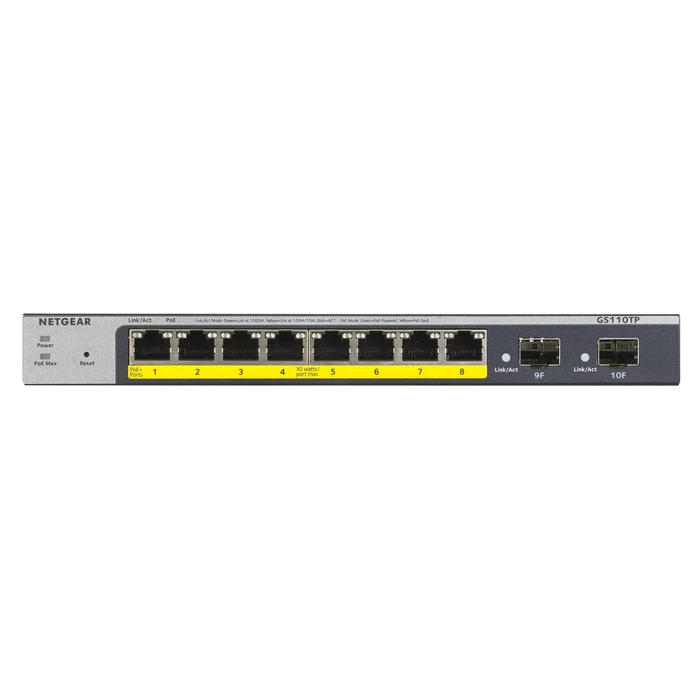

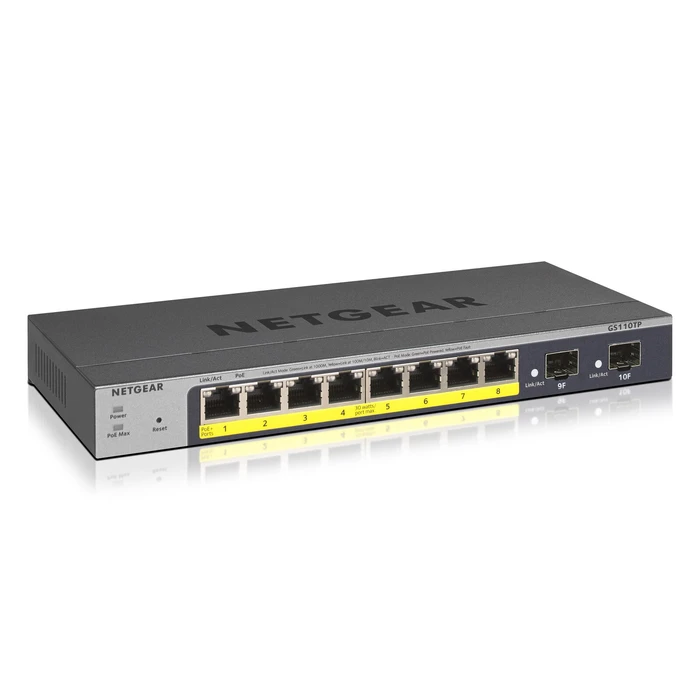

Network Switch Netgear GS110TP Managed L2/L3/L4 Gigabit (10/100/1000) Grey v1

Technical Specifications

• Switch type
  Managed
• Switch layer
  L2/L3/L4
• Quality of Service (QoS) support
  Y
• Web-based management
  Y
• ARP inspection
  Y
• Basic switching RJ-45 Ethernet ports quantity
  8
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• SFP module slots quantity
  2
• Networking standards
  IEEE 802.3abIEEE 802.3afIEEE 802.3iExpand
• Copper ethernet cabling technology
  1000BASE-T100BASE-TX10BASE-T
• Port mirroring
  Y
• Full duplex
  Y
• Flow control support
  Y
• Link aggregation
  Y
• Broadcast storm control
  Y
• Rate limiting
  Y
• Spanning tree protocol
  Y
• MAC address auto-learning supported
  Y
• Number of VLANs
  64
• Switching capacity
  20 Gbit/s
• MAC address table
  8000 entries
• Store-and-forward
  Y
• Jumbo frames support
  Y
• Packet buffer memory
  0.5 MB
• DHCP features
  DHCP client
• Access Control List (ACL)
  Y
• Access Control List (ACL) IPv6 entries
  100
• IGMP snooping
  Y
• Security algorithms
  802.1x RADIUS
• MAC address filtering
  Y
• Multicast support
  Y
• IPv4 multicast entries
  32
• Number of multicast groups filtered
  256
• Data link protocols
  Ethernet, Fast Ethernet, Gigabit Ethernet
• Product colour
  Gray
• LED indicators
  ActivityLANLinkExpand
• Processor frequency
  500 MHz
• Internal memory
  128 MB
• Flash memory
  32 MB
• Mean time between failures (MTBF)
  1200041 h
• Power supply included
  Y
• AC input voltage
  100 - 240 V
• AC input frequency
  50/60 Hz
• DC input voltage
  54 V
• Input current
  1.25 A
• Power consumption (max)
  15.1 W
• Power over Ethernet (PoE)
  Y
• Power over Ethernet plus (PoE+) ports quantity
  8
• Power over Ethernet (PoE) power per port
  55 W
• Total Power over Ethernet (PoE) budget
  69.5 W
• Operating temperature (T-T)
  0 - 40 °C
• Storage temperature (T-T)
  -20 - 70 °C
• Operating relative humidity (H-H)
  0 - 95%
• Storage relative humidity (H-H)
  0 - 95%
• Operating altitude
  0 - 3000 m
• Non-operating altitude
  0 - 3000 m
• Heat dissipation
  237.38 BTU/h
• Width
  236 mm
• Depth
  101 mm
• Height
  27 mm
• Weight
  610 g
• Manual
  Y
• Package width
  161 mm
• Package depth
  267 mm
• Package height
  86 mm
• Package weight
  1.49 kg
• Master (outer) case width
  27.4 cm
• Master (outer) case length
  35 cm
• Master (outer) case height
  30.9 cm
• Master (outer) case weight
  9.73 kg
• Quantity per master (outer) case
  6 pc(s)
