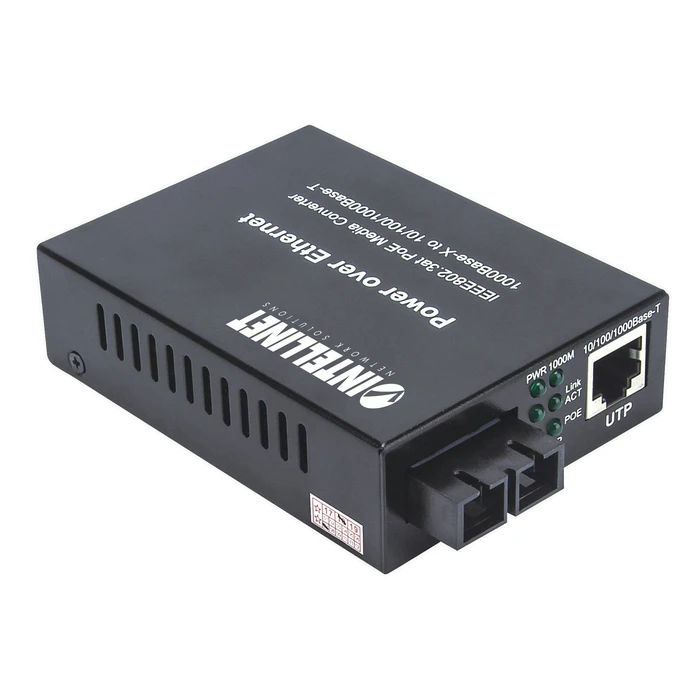

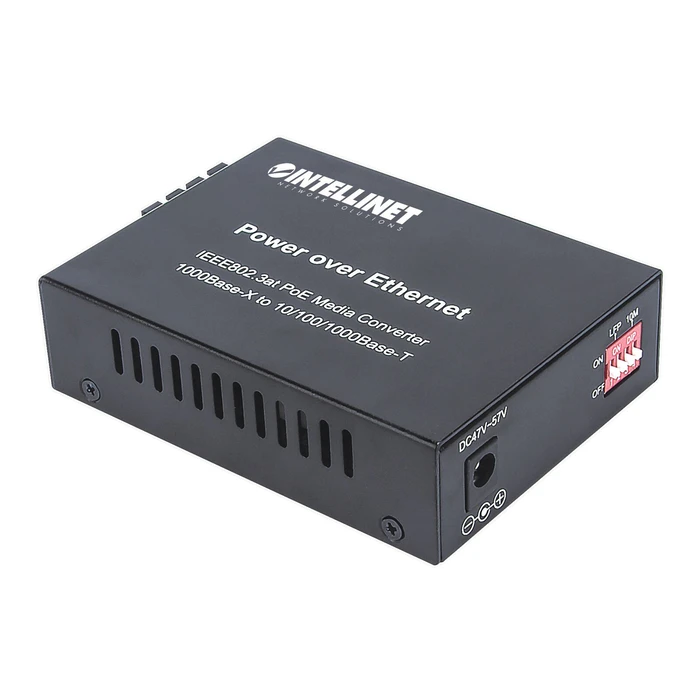

Network Switch Intellinet Gigabit PoE + Medienkonverter SC Singlemode 20km

Technical Specifications

• Total output Power over Ethernet (PoE)
  30 W
• input voltage
  56 V
• input current
  0.5 A
• Power over Ethernet (PoE)
  Yes
• Data transfer rate (max)
  1000 Mbit / s
• Converter input interface
  1000Base-T
• Converter output surface
  1000Base-LX
• Networking standards
  IEEE 802.3, IEEE 802.3ab, 802.3at IEEE 802.3af, IEEE, IEEE 802.3u
• Ethernet Interface Type
  Gigabit Ethernet
• Ethernet LAN data transfer rates
  10,100,1000 Mbit / s
• Duplex system
  Full, Half
• DC connection
  Yes
• transmission technology
  Wired
• Ethernet LAN (RJ-45)
  1
• Fiber Channel ports
  1
• Optical cable connector
  SC
• Maximum transfer distance
  20000 m
• Cable mode structure
  Single mode
• certification
  FCC A
• Built-in
  No
• housing material
  metal
• International protection (IP code)
  IP30
• Color of product
  black
• LED displays
  Activity, Link, PoE, power
• AC power adapter
  Yes
• operating manual
  Yes
• Temperature range in operation
  0-55 ° C
• Storage temperature range
  -10 - 70 ° C
• Humidity in operation
  5-80%
• width
  70 mm
• depth
  95 mm
• height
  25 mm
• mass
  200 g
