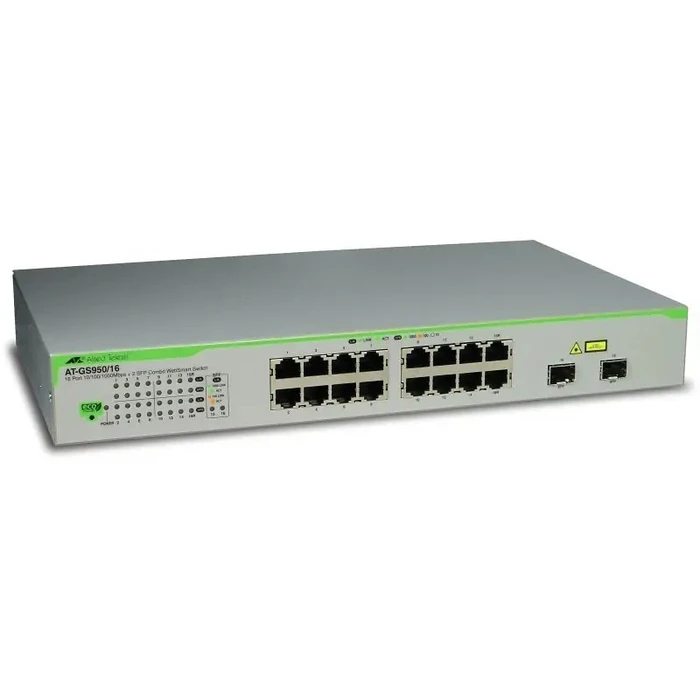

Network Switch Allied Telesis L2 WS GE 16 P W/ 2 X SFP

Technical Specifications

• Device Type
  Switch - 16 ports - Managed
• Enclosure Type
  Desktop
• Subtype
  Gigabit Ethernet
• Ports
  16 x 10/100/1000 + 2 x GBIC
• MAC Address Table Size
  8K entries
• Remote Management Protocol
  HTTP
• Features
  Flow control, trunking, auto-uplink (auto MDI/MDI-X), port mirroring
• Compliant Standards
  IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x
• RAM
  512 KB
• Interfaces
  16 x 1000Base-T - RJ-45 ¦ 1 x serial (RS-232) - DB-9 - management ¦ 2 x GBIC
• Power Device
  Internal power supply
• Voltage Required
  AC 120/230 V (50/60 Hz)
• Mounting Kit
  Included
• Rack Mounting Kit
  Included
• Compliant Standards
  FCC Class A certified, TUV, C-Tick, EN 60950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A
• Localisation
  Europe
• Width
  35.2 cm
• Depth
  25.6 cm
• Height
  4.3 cm
• Service & Support
  Limited warranty - lifetime
• Min Operating Temperature
  0 °C
• Max Operating Temperature
  40 °C
• Humidity Range Operating
  5 - 90%
