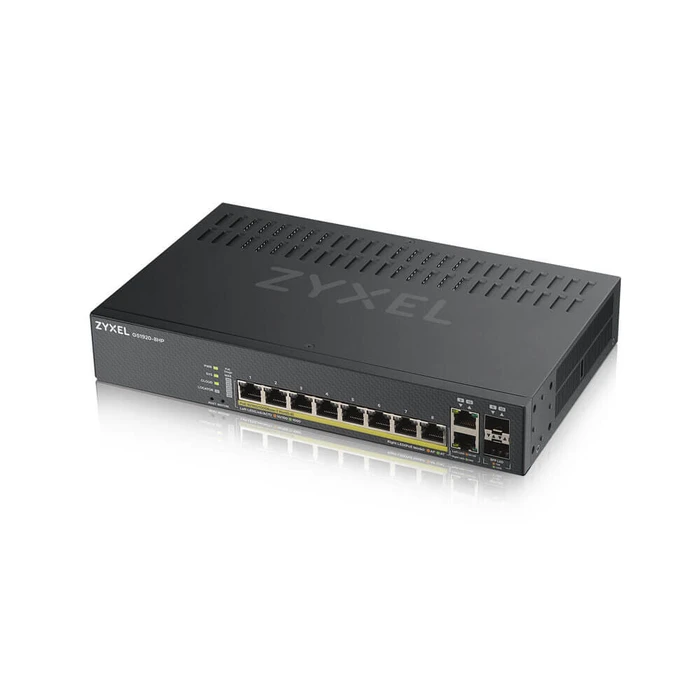

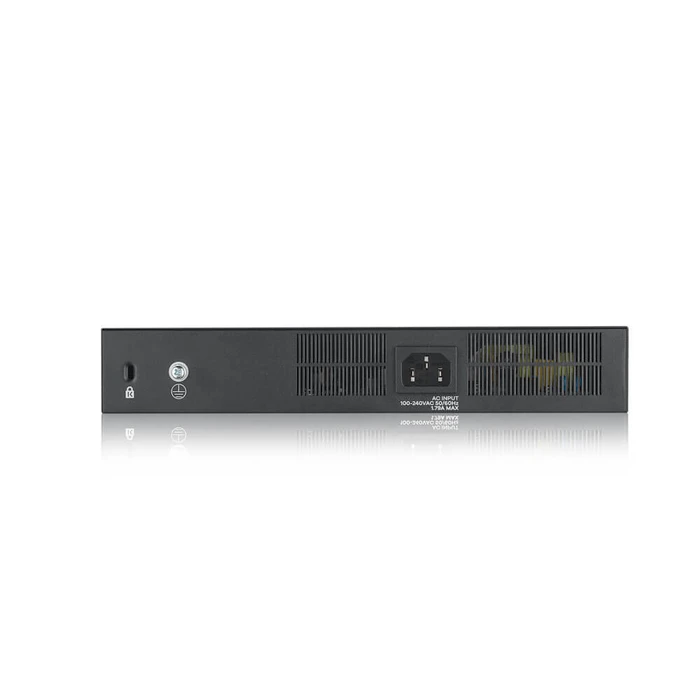

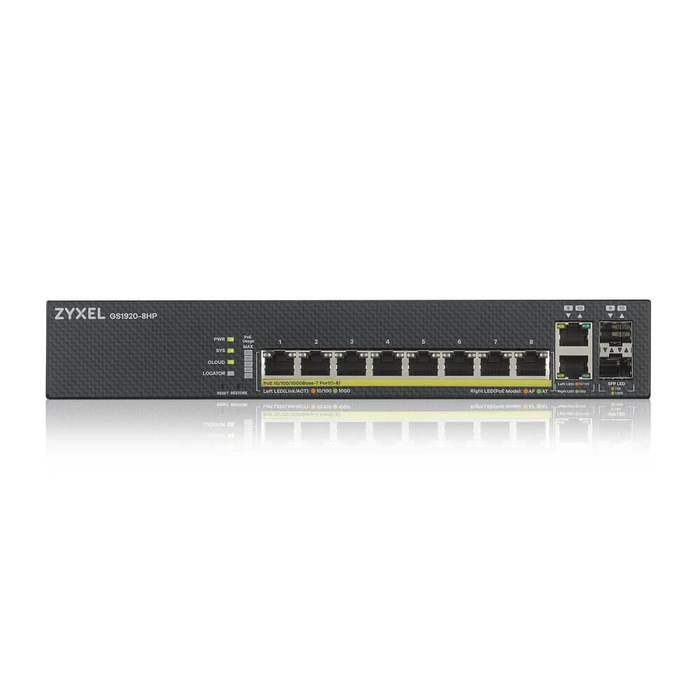

Network Switch 8-port ZyXEL GE GS1920-8HPV2 PoE+

Technical Specifications

• Optical cable connector
  SFP
• Ethernet cable
  1000BASE-X
• IP-MAC-Port Binding
  Yes
• Queue scheduling algorithms
  SPQ, WFQ, Weighted Round Robin (WRR)
• MAC address filtering
  Yes
• DHCPv6 Relay
  Yes
• DHCP snooping
  Yes
• IGMP snooping
  Yes
• Supported security algorithms
  802.1x RADIUS, SNMP, SNMPv3
• authentication
  Guest VLAN, port-based authentication
• DHCP relay
  Yes
• Password protection
  Yes
• Access control list
  Yes
• CPU defense
  Yes
• security
  LVD, BSMI
• Electromagnetic compatibility
  FCC 15 A, CE A, BSMI EMC
• certification
  RoHS
• Rack mounting
  Yes
• Color of product
  black
• LED displays
  Yes
• Mean time between failures (MTBF)
  513,985 h
• RAM
  256 MB
• Flash memory
  32 MB
• Data packet buffer memory
  1.5 MB
• Power consumption (max.)
  161.8 W
• AC input voltage
  100-240 V
• AC input frequency
  50/60 Hz
• Power over Ethernet (PoE)
  Yes
• Number of Power over Ethernet (PoE) ports
  8th
• Total output Power over Ethernet (PoE)
  130 W
• Switch type
  managed
• Quality of Service (QoS) support
  Yes
• System Event Log
  Yes
• MIB support
  RFC 1066, RFC 1213, RFC 1157, RFC 1493, RFC 1643, RFC 1757, RFC 2011.2012,2013, RFC 2233, RFC 2358, RFC 2674, RFC 2819.2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293
• ARP inspection
  Yes
• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic switching RJ-45 Ethernet port type
  Gigabit Ethernet (10/100/1000)
• Number of SPF Combo Ports
  2
• Copper Ethernet cabling technology
  100BASE-TX, 1000BASE-T
• Networking standards
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, 802.3at IEEE, IEEE 802.3u, IEEE 802.3 x, IEEE 802.3z
• 10G support
  No
• DHCP client
  Yes
• Flow control support
  Yes
• rate limiting
  Yes
• Spanning tree protocol
  Yes
• MAC address table
  16000 entries
• Routing / switching capacity
  20 Gbit / s
• transfer rate
  15 Mpps
• VLAN support
  Yes
• private VLAN
  Yes
• Voice VLAN
  Yes
• Protocol-Based VLAN
  Yes
• MAC address-based VLAN
  Yes
• Port-based VLAN
  Yes
• IP subnet-based VLAN
  Yes
• multicast support
  Yes
• width
  267 mm
• depth
  162 mm
• height
  44 mm
• mass
  1.9 kg
• rack mounting kit
  Yes
• cables included
  AC
• heat dissipation
  551.74 BTU / hr
• Temperature range in operation
  0 - 50 ° C
• Storage temperature range
  -40 - 70 ° C
• Humidity in operation
  10 - 95%
• Storage humidity
  10 - 95%
• packaging width
  375 mm
• packaging depth
  235 mm
• packaging height
  61 mm
• package weight
  2.73 kg
