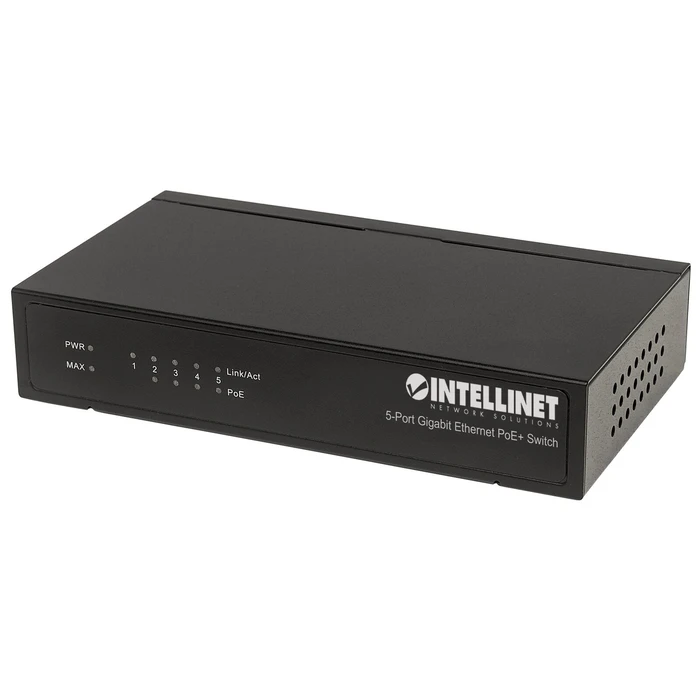

Network Switch 5-Port Intellinet PoE+ Gigabit Ethernet 60W Desktop

Technical Specifications

• certification
  FCC Class B, CE
• Rack mounting
  No
• Color of product
  black
• LED displays
  Activity, Link, PoE, power
• housing material
  metal
• Auto-negotiation function
  Yes
• Power consumption (max.)
  70 W
• AC input voltage
  100-240
• power supply
  Yes
• AC input frequency
  50/60
• Power protection features
  Overvoltage, overload protection, short circuit
• Power over Ethernet (PoE) support
  Yes
• Number of Ports Power over Ethernet Plus (PoE +)
  5
• Power-over-Ethernet (PoE) power per port
  30 W
• Total output Power over Ethernet (PoE)
  60 W
• Number of basic switching RJ-45 Ethernet ports
  5
• Basic switching RJ-45 Ethernet port type
  Gigabit Ethernet (10/100/1000)
• Copper Ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• Networking standards
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, 802.3at IEEE, IEEE 802.3az, IEEE 802.3u
• Flow control support
  Yes
• Auto MDI / MDI-X
  Yes
• MAC address table
  2000 entries
• Routing / switching capacity
  10 Gbit / s
• transfer rate
  1,488 Mpps
• Store-and-Forward
  Yes
• Jumbo Frames support
  Yes
• Jumbo Frames
  9000
• width
  140 mm
• depth
  76 mm
• height
  27 mm
• mass
  710 g
• Quick start guide
  Yes
• Temperature range in operation
  0 - 40 ° C
• Storage temperature range
  -20 - 70 ° C
• Humidity in operation
  10 - 90%
