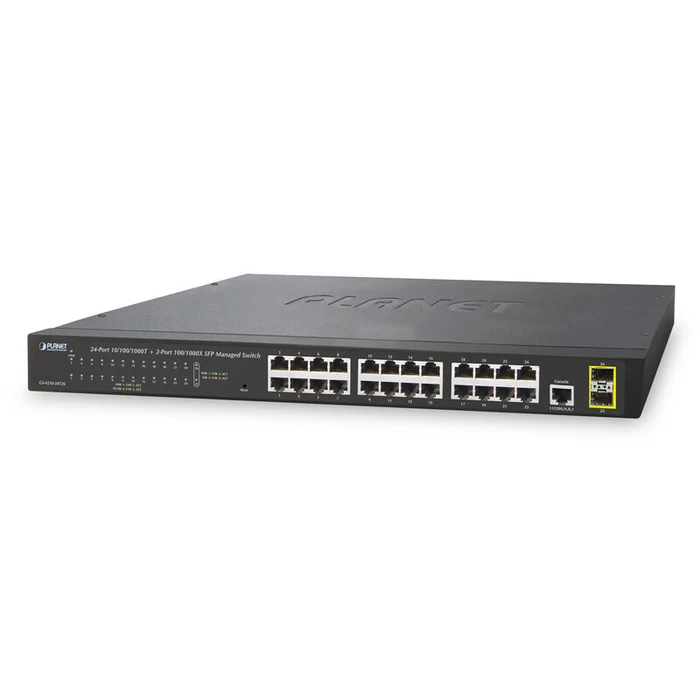

Network Switch 24-Port Planet Layer 2 Managed Gigabit Ethernet +

Technical Specifications

• MAC address filtering
  Yes
• Supported security algorithms
  HTTPS, SNMP
• IGMP snooping
  Yes
• Static port security
  Yes
• Supported network protocols
  IPv4 / IPv6 IP-based ACL / MAC-based ACL
• certification
  FCC Part 15 Class A, CE
• form factor
  1U
• Color of product
  black
• LED displays
  Activity Link
• housing material
  metal
• Current consumption (operating)
  14 W
• AC input voltage
  100-240 V
• AC input frequency
  50/60 Hz
• input current
  0.8 A
• Power over Ethernet (PoE)
  No
• Switch type
  managed
• Switch level
  L2
• Quality of Service (QoS) support
  Yes
• MIB support
  RFC 3635 Ethernet-like MIB, RFC 2863 Interface Group MIB, RFC 2819 RMON (1, 2, 3, 9), RFC 1493 Bridge MIB
• Number of basic switching RJ-45 Ethernet ports
  24
• Basic switching RJ-45 Ethernet port type
  Gigabit Ethernet (10/100/1000)
• Amount of the SFP module slots
  2
• Networking standards
  IEEE 802.1ab, IEEE 802.1D, IEEE 802.1, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
• 10G support
  No
• MAC address table
  8000 entries
• Routing / switching capacity
  52 Gbit / s
• passage
  38.6 Mpps
• Store-and-Forward
  Yes
• Jumbo Frames support
  Yes
• width
  445 mm
• depth
  207 mm
• height
  45 mm
• mass
  2.1 kg
• heat dissipation
  47 BTU / h
• Temperature range in operation
  0 - 50 ° C
• Storage temperature range
  -10 - 70 ° C
• Humidity in operation
  5 - 95%
• Storage humidity
  5 - 95%
