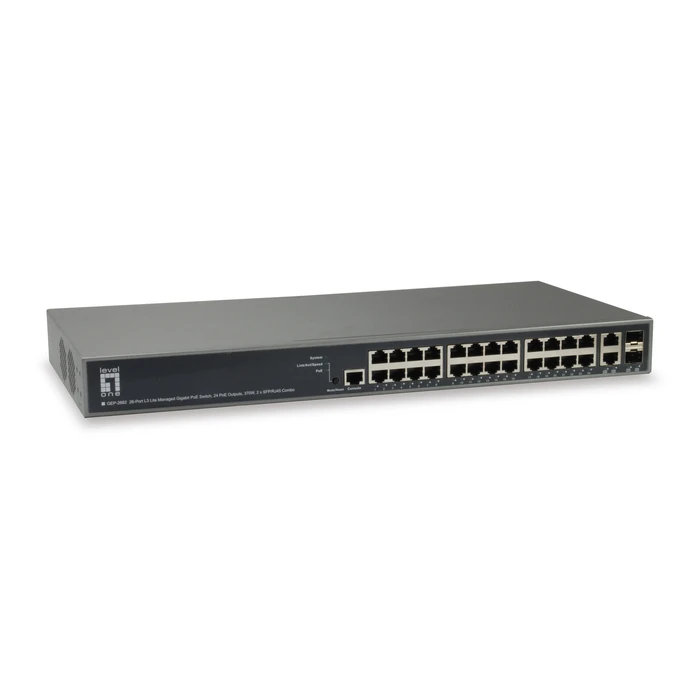

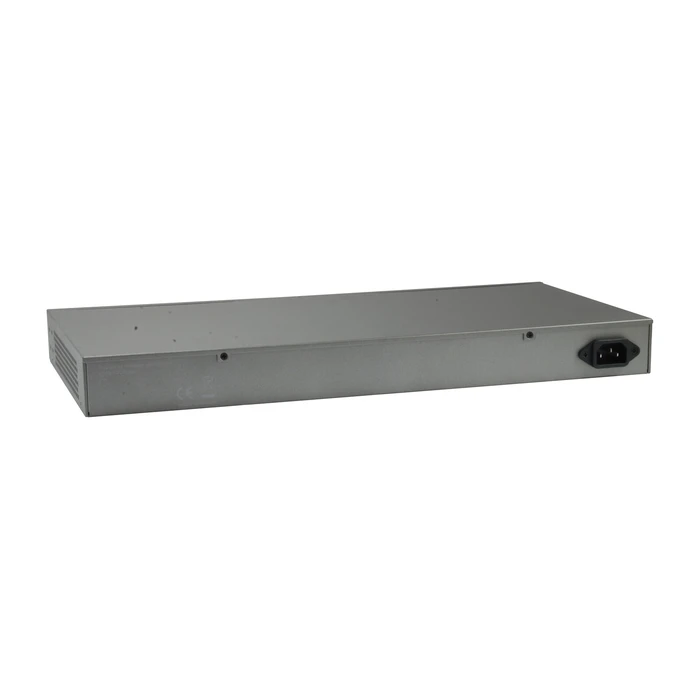

Network Switch 24-port LevelOne GE GEP-2682 2xGSFP 370W PoE

Technical Specifications

• Ethernet cable
  1000BASE-X
• loop Protection
  Yes
• Supported security algorithms
  802.1x RADIUS
• BPDU filtering / protection
  Yes
• Access control list
  Yes
• SSH / SSL support
  Yes
• DHCP snooping
  Yes
• IGMP snooping
  Yes
• DHCP relay
  Yes
• GARP VLAN Registration Protocol (GVRP)
  Yes
• Supported network protocols
  IPv4 / IPv6
• security
  CB IEC 60950, UL 60950-1, 2nd Edition, 2014-10-14, CAN / CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10
• certification
  CE, FCC Part 15 Class A
• Rack mounting
  Yes
• LED displays
  Activity, Link, PoE, speed, system
• Mean time between failures (MTBF)
  211272 h
• Flash memory
  32 MB
• RAM
  128 MB
• buffer size
  512 KB
• sFlow
  Yes
• Firmware upgradeable
  Yes
• Telnet
  Yes
• Current consumption (operating)
  20.71 W
• AC input voltage
  100-240 V
• AC input frequency
  50/60 Hz
• Power over Ethernet (PoE)
  Yes
• Number of Ports Power over Ethernet Plus (PoE +)
  24
• Power over Ethernet (PoE) power per port
  30 W
• Total output Power over Ethernet (PoE)
  370 W
• Switch type
  managed
• Switch level
  L3
• System Event Log
  Yes
• Quality of Service (QoS) support
  Yes
• Web-based management
  Yes
• Number of basic switching RJ-45 Ethernet ports
  24
• Basic switching RJ-45 Ethernet port type
  Gigabit Ethernet (10/100/1000)
• Number of SPF Combo Ports
  2
• Console port
  RJ-45
• Copper Ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• Number Gigabit Ethernet (copper) connections
  24
• Networking standards
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, 802.3at IEEE, IEEE 802.3az, IEEE 802.3u , IEEE 802.3x, IEEE 802.3z
• Flow control support
  Yes
• link aggregation
  Yes
• DHCP client
  Yes
• Broadcast Storm Control
  Yes
• Spanning tree protocol
  Yes
• DHCP server
  Yes
• Cable length detection
  Yes
• 10G support
  No
• MAC address table
  8000 entries
• Routing / switching capacity
  52 Gbit / s
• transfer rate
  38.7 Mpps
• Store-and-Forward
  Yes
• static route
  Yes
• Jumbo Frames support
  Yes
• Jumbo Frames
  9600
• VLAN support
  Yes
• private VLAN
  Yes
• Tagged VLAN
  Yes
• MAC address-based VLAN
  Yes
• Port-based VLAN
  Yes
• width
  442 mm
• depth
  211 mm
• height
  44 mm
• mass
  3.5 kg
• Width of the shipping carton
  48.2 cm
• Master Carton Length
  54 cm
• Carton height
  32.4 cm
• Weight master carton
  20.7 kg
• Amount per master carton
  5 piece (s)
• Resource CD
  Yes
• cables included
  AC, LAN (RJ-45)
• Quick start guide
  Yes
• Temperature range in operation
  0 - 45 ° C
• Storage temperature range
  -20 - 70 ° C
• Humidity in operation
  10 - 90%
• Storage humidity
  10 - 90%
• country of origin
  Taiwan
• packaging width
  300 mm
• packaging depth
  520 mm
• packaging height
  90 mm
• package weight
  3.9 kg
• Packaging
  Blister
