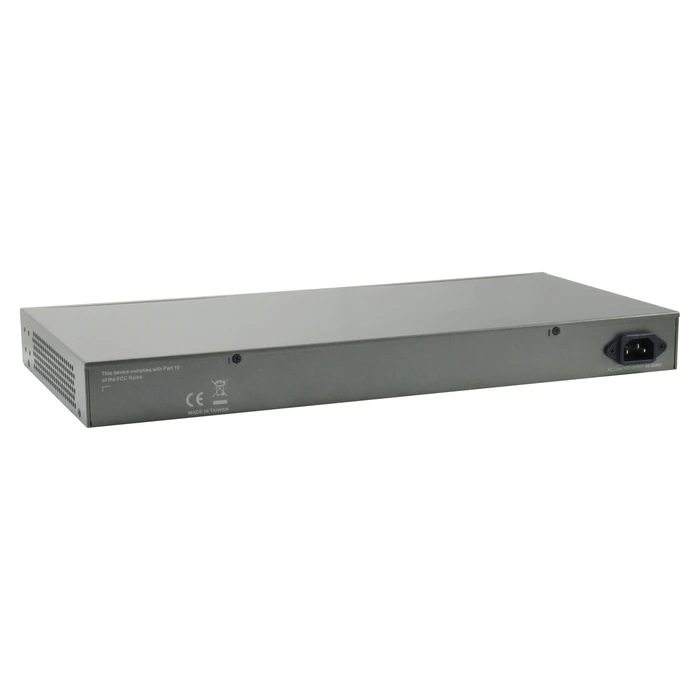

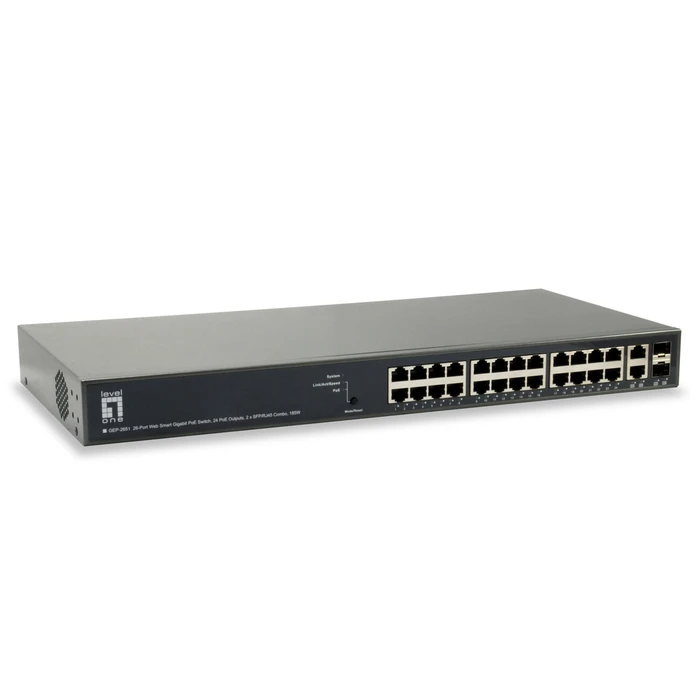

Network Switch 24-port LevelOne GE GEP-2651 2xGSFP 185W PoE+

Technical Specifications

• Product description
  LevelOne GEP-2651 - Switch - 26 ports - Smart - rack mountable
• Device Type
  Switch - 26 ports - Smart
• type
  Rack mountable 1U
• Subtype
  Gigabit Ethernet
• ports
  24 x 10/100/1000 (PoE +) + 2 x Combi Gigabit SFP
• Power Over Ethernet (PoE)
  PoE +
• PoE budget
  185 W
• Power
  Switching capacity
• Capacity
  Active VLANs
• Size of the MAC address table
  8000 entries
• Jumbo Frame Support
  9600 bytes
• Routing Protocol
  IGMPv2, IGMP, IGMPv3
• Remote Management Protocol
  RMON 1, RMON 2, SNMP, RMON 3, RMON 9, HTTP
• Features
  Trunking, VLAN support, IGMP snooping, syslog support, port mirroring, store-and-forward, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP Snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Reset button, STP Root Guard, IPv4 support, LLDP support, DHCP Client, Energy Efficient Ethernet, Labeled VLAN, Bridge Protocol Data Unit (BPDU), Network Timing Protocol (NTP)
• Standards
  IEEE 802.3u, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at IEEE 802.3az
• Power supply
  AC 120/230 V (50/60 Hz)
• Dimensions (width x depth x height)
  44.2 cm x 21.1 cm x 4.4 cm
• Mass
  3.1 kg
• Manufacturer
  LevelOne
• Herst.Art.Nr .
  GEP-2651
• EAN
  4015867198957
• Device Type
  Switch - 26 ports - Smart
• type
  Rack mountable 1U
• Subtype
  Gigabit Ethernet
• ports
  24 x 10/100/1000 (PoE +) + 2 x Combi Gigabit SFP
• Power Over Ethernet (PoE)
  PoE +
• PoE budget
  185 W
• Power
  Switching capacity
• Capacity
  Active VLANs
• Size of the MAC address table
  8000 entries
• Jumbo Frame Support
  9600 bytes
• Routing Protocol
  IGMPv2, IGMP, IGMPv3
• Remote Management Protocol
  RMON 1, RMON 2, SNMP, RMON 3, RMON 9, HTTP
• Features
  Trunking, VLAN support, IGMP snooping, syslog support, port mirroring, store-and-forward, IPv6 support, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP Snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Reset button, STP Root Guard, IPv4 support, LLDP support, DHCP Client, Energy Efficient Ethernet, Labeled VLAN, Bridge Protocol Data Unit (BPDU), Network Timing Protocol (NTP)
• Standards
  IEEE 802.3u, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at IEEE 802.3az
• R.A.M
  128 MB
• Flash memory
  32 MB
• Status Indicators
  Port Transmission Speed, System, PoE, Link / Activity
• interfaces
  24 x 1000Base-T RJ-45 PoE +
• Power Device
  Internal power supply
• Required mains voltage
  AC 120/230 V (50/60 Hz)
• Power consumption in operation
  18.29 watts
• MTBF
  211,272 hours
• Width
  44.2 cm
• Depth
  21.1 cm
• Height
  4.4 cm
• Mass
  3.1 kg
• Min operating temperature
  0 ° C
• Max. Operating temperature
  45 ° C
• Permissible humidity in operation
  10 - 90% (non-condensing)
• Min. Storage temperature
  -20 ° C
• Max. Storage temperature
  70 ° C
• Permissible humidity during storage
  10 - 90% (non-condensing)
