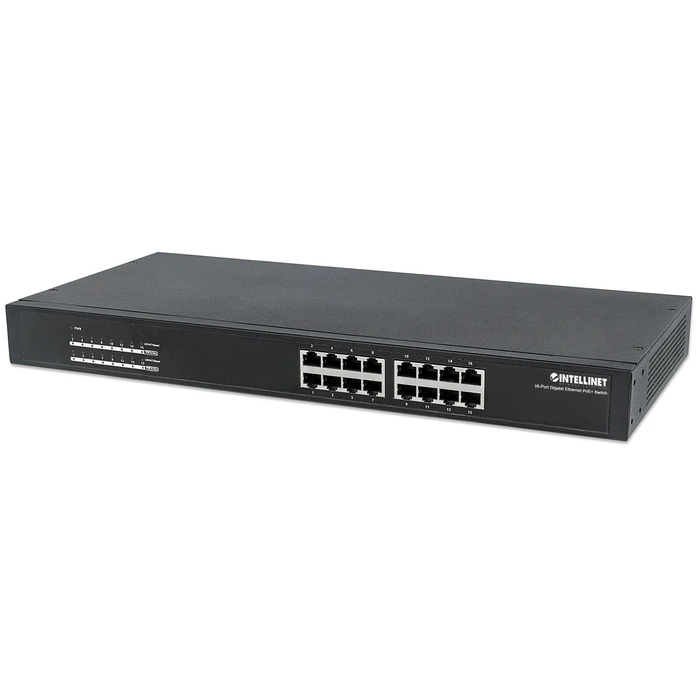

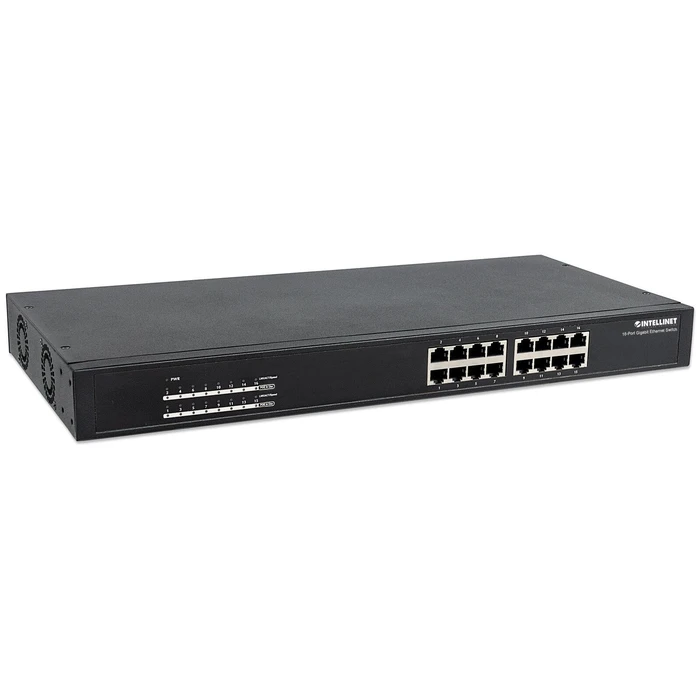

Network Switch 16-port Intellinet GE Rackmount PoE+

Technical Specifications

• certification
  FCC Class B, VCCI Class A, CE, RoHS
• Rack mounting
  Yes
• form factor
  1U
• Color of product
  black
• LED displays
  Yes
• housing material
  metal
• buffer size
  256 KB
• Power consumption (max.)
  260 W
• AC input voltage
  100-240 V
• AC input frequency
  50/60 Hz
• Power protection features
  Overvoltage, overload protection, short circuit
• Power over Ethernet (PoE)
  Yes
• Switch type
  unmanaged
• Switch level
  L2
• Number of basic switching RJ-45 Ethernet ports
  16
• Basic switching RJ-45 Ethernet port type
  Gigabit Ethernet (10/100/1000)
• Copper Ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• Number Gigabit Ethernet (copper) connections
  16
• Networking standards
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, 802.3at IEEE, IEEE 802.3u, IEEE 802.3x
• full duplex
  Yes
• supported cable types
  Cat5, Cat5e
• Auto MDI / MDI-X
  Yes
• 10G support
  No
• Flow control support
  Yes
• MAC address table
  8192 entries
• Routing / switching capacity
  32 Gbit / s
• Store-and-Forward
  Yes
• width
  442 mm
• depth
  208 mm
• height
  44 mm
• mass
  3.8 kg
• cables included
  AC
• Included Mounting blocks
  Yes
• operating manual
  Yes
• Temperature range in operation
  0 - 40 ° C
• Storage temperature range
  -10 - 70 ° C
• Humidity in operation
  10 - 90%
