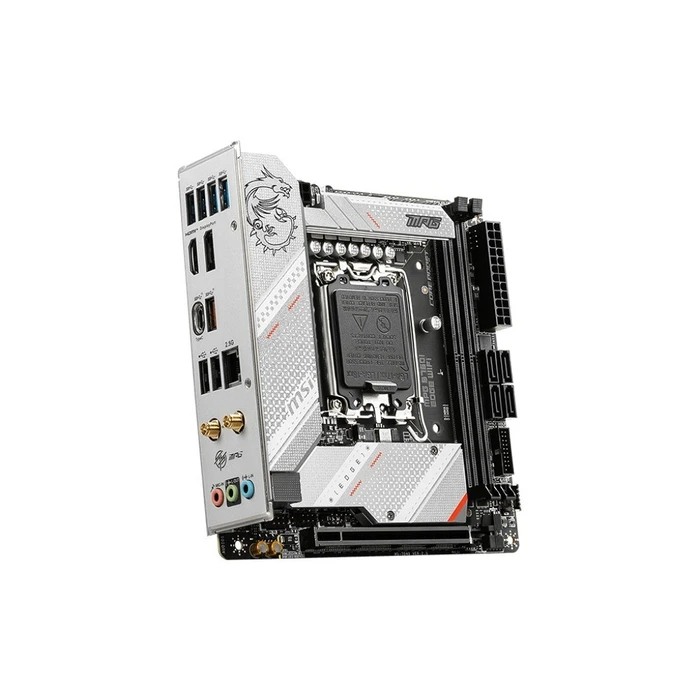

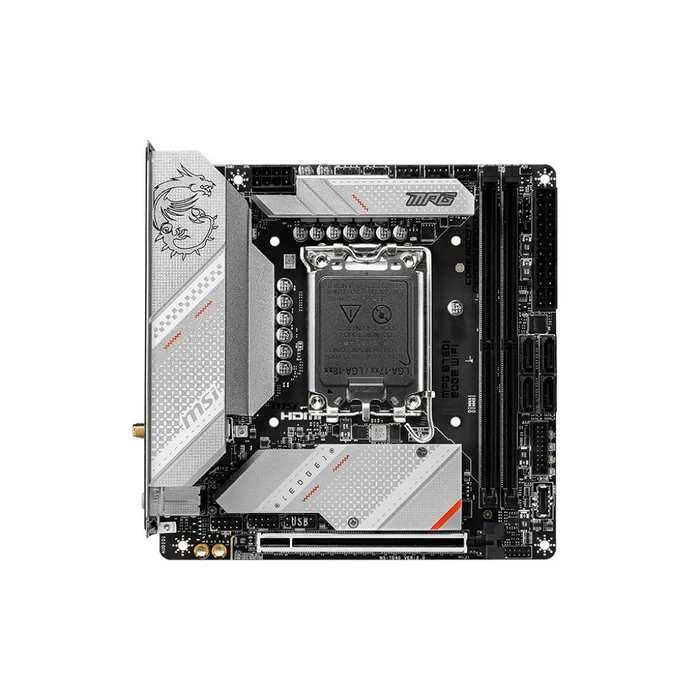

Motherboard MSI MPG B760I EDGE WIFI (B760,S1700,mITX,DDR5)

Technical Specifications

• product type
  Motherboard - Mini-ITX
• chipset
  Intel B760 / Nuvoton NCT6687D-M
• processor socket
  LGA1700 socket
• Max. processors
  1
• Compatible processors
  (supports 12th Gen Intel Core / Pentium / Celeron)
• Max size
  64GB
• technology
  DDR5
• bus clock
  5800MHz(OC), 6000MHz(OC), 4800MHz, 6200MHz(OC), 6400MHz(OC), 6600MHz(OC), 7000MHz(OC), 6800MHz(OC), 7200MHz(OC) , 5200MHz, 5000MHz, 5600MHz, 5400MHz
• Supported RAM integrity check
  Non ECC
• Registered or buffered
  Unbuffered
• particularities
  Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
• Type
  HD Audio (8-channel)
• audio codec
  Realtek ALC897
• compatibility
  High definition audio
• network controller
  Realtek RTL8125BG
• network interfaces
  2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
• expansion slots
  1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (Key E) ¦ 2 x M.2 socket (2280 M.2 Key M slot)
• storage interfaces
  SATA-600 connectors: 4 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 connectors: 1 x M.2 ¦ SATA-600 / PCIe 4.0 connectors: 1 x M. 2
• interfaces
  4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x antenna ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini Jack plug ¦ 1 x headphone output - mini jack plug ¦ 1 x microphone - mini jack plug ¦ 1 x HDMI ¦ 1 x DisplayPort
• Internal interfaces
  2 x USB 2.0 headers ¦ 2 x USB 3.2 Gen 1 headers ¦ 1 x USB-C 3.2 Gen 2 headers ¦ 1 x Audio headers
• power connections
  Main power connector 24 pin, ATX12V connector 8 pin
• BIOS type
  AMI
• BIOS features
  Multi-language BIOS, MSI ClickBIOS 5, ACPI 6.4 support, SMBIOS 3.5 support
• hardware features
  MSI Audio Boost, 8 Layer PCB, Debug LED, MSI Mystic Light, MSI Steel Armor, 2oz Copper PCB, M.2 Shield FROZR, Water Pump Header, Pre-Assembled I/O Shield, MSI Core Boost, Extended Heatsink Design, DIY Friendly Design, Firmware Trusted Platform Module (TPM) 2.0, Compatible with Windows 11, 8+1+1 Phase Power Design, MSI Memory Boost, 90A Power Stage
• Accessories included
  Rainbow RGB LED extension cable, WiFi antenna, cable sticker, 2 x M.2 screw pack
• Cables included
  1 x Serial ATA Cable
• Labelling
  BSMI, WEEE, FIPS, FISMA, FCC Part 15 Class B, DisplayPort 1.4
• Width
  17 cm
• depth
  17 cm
