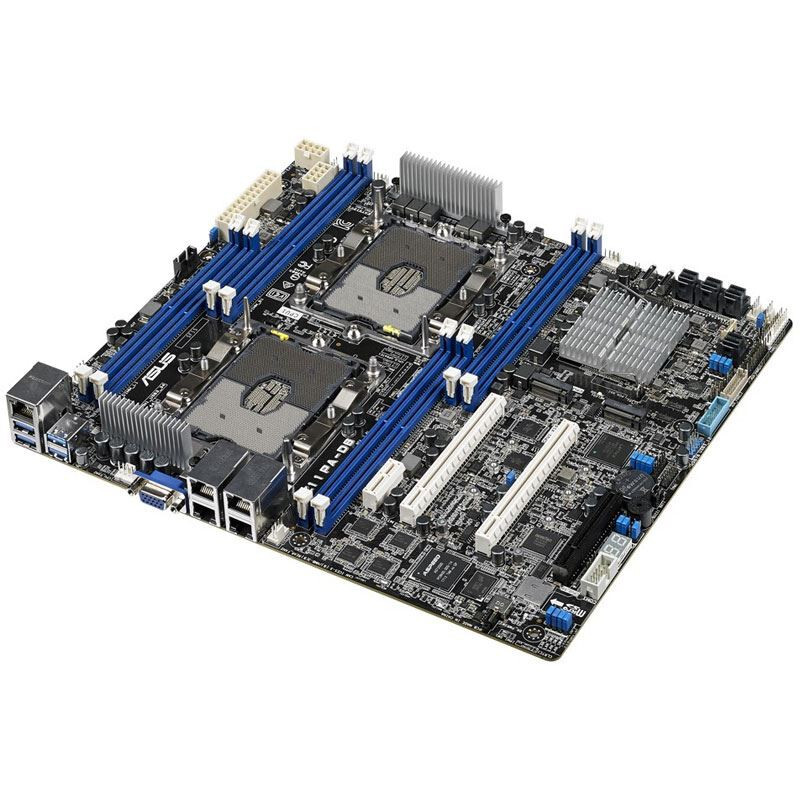

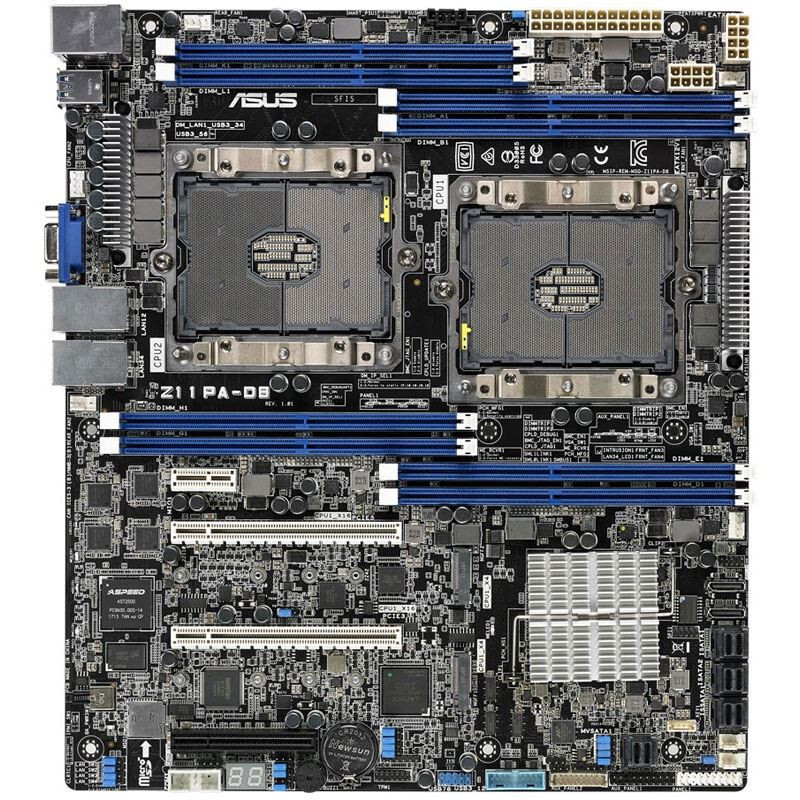

Motherboard Intel Socket-P Asus Z11PA-D8

Technical Specifications

• Motherboard form factor
  SSI CEB
• Processor Manufacturer
  Intel
• Processor socket
  LGA 3647
• Number of supported processors
  2
• Supported Memory
  DDR4 SDRAM
• Supported memory speed
  2133,2400,2666 MHz
• Number of DIMM slots
  8
• Maximum RAM
  1024 GB
• Supported RDIMM module capacity
  4GB, 8GB, 16GB, 32GB
• Supported LRDIMM module capacity
  32GB, 64GB
• Maximum RDIMM memory
  256 GB
• Maximum LRDIMM memory
  512 GB
• Storage voltage
  1.2V
• Hard disk interface
  Serial ATA III
• RAID level
  0, 1, 5, 10
• RAID Support
  Yes
• Number of USB 2.0 interfaces
  1
• Chassis Intrusion Plug
  Yes
• Serial port headers
  1
• TPM connector
  Yes
• SATA III connectors
  16
• CPU fan connector
  Yes
• USB 3.0 (3.1 Gen 1) Connectors
  1
• Number of USB 3.0 (3.1 Gen 1) Type-A ports
  4
• Number of VGA (D-Sub) connectors
  1
• Number of Ethernet LAN ports (RJ-45)
  4
• PCI Express x8 slots
  1
• PCI Express x16 slots
  2
• Built-in Ethernet connection
  Yes
• WLAN
  No
• Ethernet interfaces Type
  Gigabit Ethernet
• LAN controller
  Intel I210-AT
• On-board graphics Model
  Aspeed AST2500
• On-board graphics adapter memory
  64 MB
• Temperature range in operation
  10 - 35 ° C
• Temperature range during storage
  -40 - 70 ° C
• Humidity (out of order)
  20 - 90%
• Width
  305 mm
• Depth
  267 mm
• Weight
  1.24 kg
• Package weight
  2.32 kg
