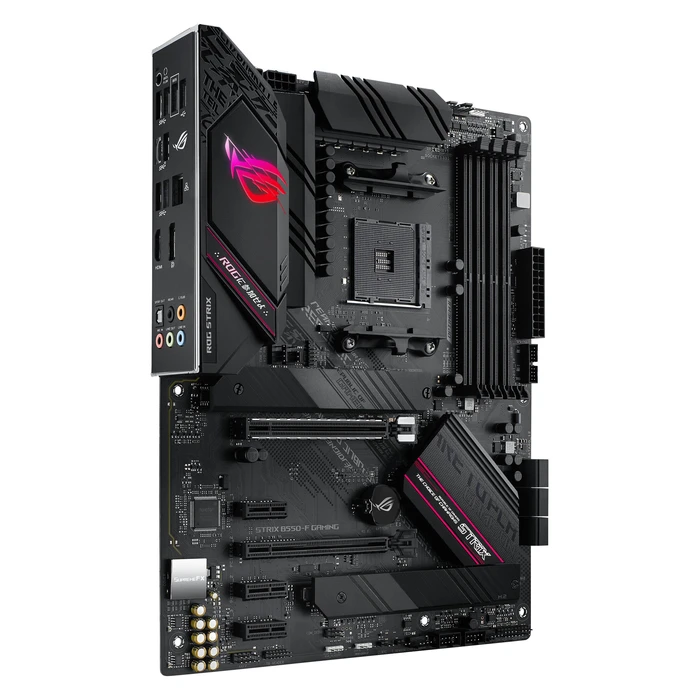

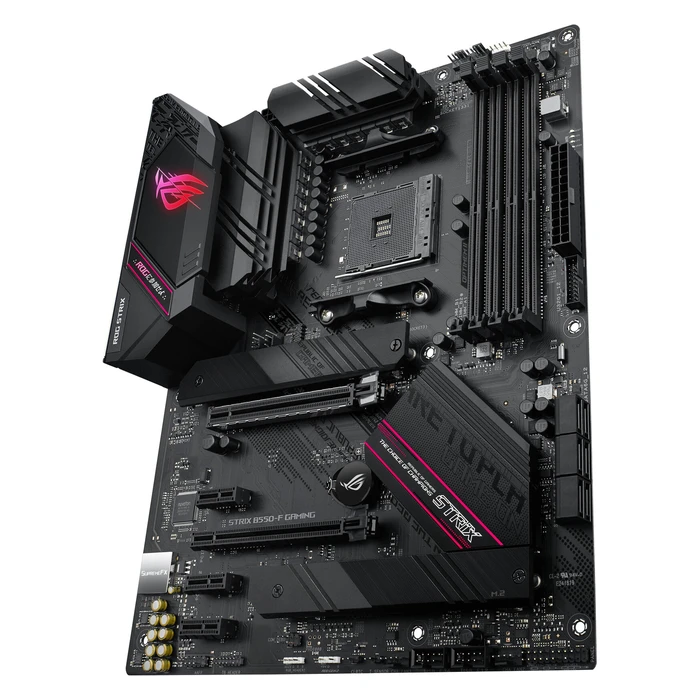

Motherboard Asus ROG STRIX B550-F GAMING AM4 AMD B550

Technical Specifications

• Processor manufacturer
  AMD
• Maximum number of SMP processors
  1
• Compatible processor series
  3rd Generation AMD Ryzen 9
• Processor socket
  Socket AM4
• Parallel processing technology support
  2-Way CrossFireX
• Motherboard chipset
  AMD B550
• PC health monitoring
  CPU
• Audio output channels
  7.1 channels
• Cooling type
  Active
• Windows operating systems supported
  Windows 10 Enterprise
• Motherboard form factor
  ATX
• Motherboard chipset family
  AMD
• Component for
  PC
• Power source type
  ATX
• Supported memory clock speeds
  2400
• Supported memory types
  DDR4-SDRAM
• Memory slots type
  DIMM
• Number of memory slots
  4
• Maximum internal memory
  128 GB
• Depth
  244 mm
• Width
  305 mm
• Bluetooth version
  5.0
• Ethernet LAN
  Y
• Wake-on-LAN ready
  Y
• Ethernet interface type
  2.5 Gigabit Ethernet
• Bluetooth
  Y
• Wi-Fi
  N
• LAN controller
  Intel I225-V
• Number of SATA III connectors
  6
• CPU fan connector
  Y
• Number of EATX power connectors
  1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• Thunderbolt headers
  1
• EPS power connector (8-pin)
  Y
• USB 3.2 Gen 2 (3.1 Gen 2) connectors
  1
• Number of chassis fan connectors
  3
• 12V power connector
  Y
• USB 2.0 connectors
  2
• BIOS type
  UEFI AMI
• BIOS memory size
  256000 Mbit
• Drivers included
  Y
• Cables included
  SATA
• Manual
  Y
• Supported storage drive interfaces
  M.2, Serial ATA III
• Supported storage drive types
  HDD & SSD
• RAID levels
  0
• Number of HDDs supported
  6
• Headphone outputs
  1
• Ethernet LAN (RJ-45) ports
  1
• HDMI ports quantity
  1
• Microphone in
  Y
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  1
• HDMI version
  2.1
• USB 2.0 ports quantity
  2
• DisplayPorts quantity
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  4
• DisplayPort version
  1.2
• S/PDIF out port
  Y
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  1
• PCI Express slots version
  4.0
• PCI Express x16 (Gen 3.x) slots
  1
• PCI Express x1 (Gen 3.x) slots
  3
• PCI Express x16 (Gen 4.x) slots
  1
• Number of M.2 (M) slots
  2
