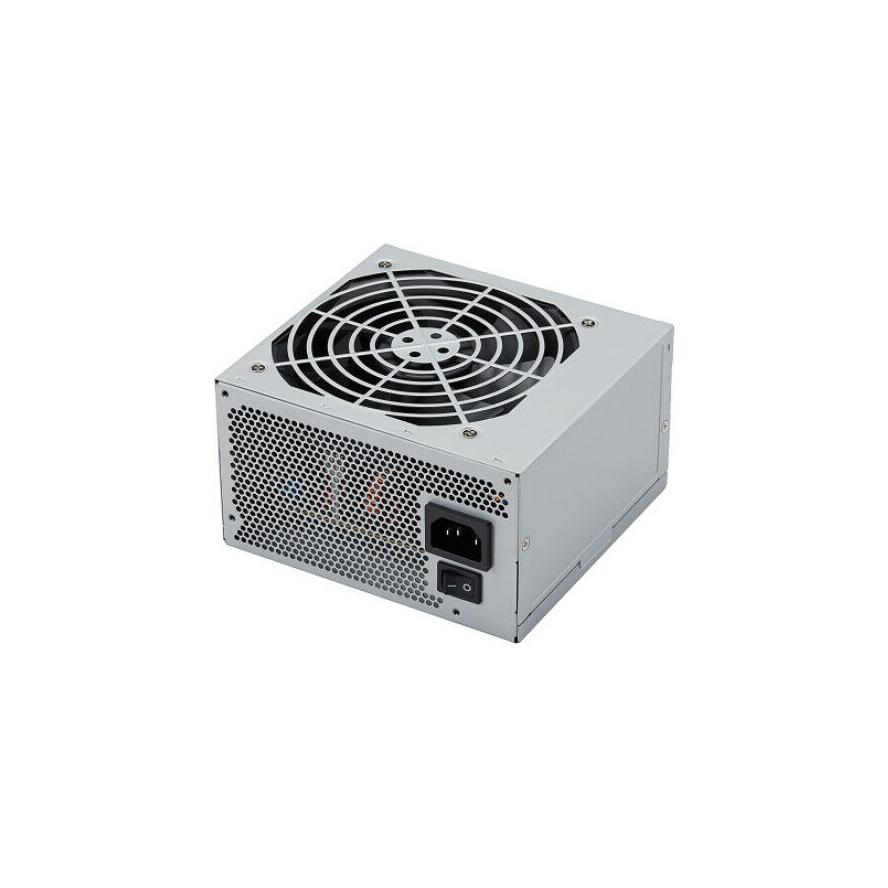

Τροφοδοτικό 500W Fortron FSP FSP500-AAC 80+ ATX

Technical Specifications

• overall performance
  500W
• AC input voltage
  90 - 264V
• AC input frequency
  47-63Hz
• input current
  3 - 7 A
• power factor
  0.99
• Power Factor Correction Filter (PFC)
  Active
• Combined Current (+3.3V)
  100W
• Combined current (+5V)
  100W
• Max. output current (+3.3V)
  20A
• Max. output current (+12V)
  41.66A
• Max output current (+5V)
  20A
• Max. output current (-12V)
  0.3A
• Max. output current (+5Vsb)
  2.5A
• efficiency
  85%
• holding time
  16ms
• energy conservation properties
  Overcurrent, overvoltage, overheating
• Purpose
  personal computer
• Power supply unit (PSU) form factor
  ATX
• 80 plus certification
  80PLUS bronzes
• ATX version
  2.52
• Mean Time Between Failures (MTBF)
  100000h
• certification
  CB 62368, CB 60950, CE, TUV, CUL
• cooling
  Active
• fan diameter
  12 cm
• number of fans
  1 fan
• fan placement
  Above
• operating temperatur
  0 - 40 °C
• Storage temperature range
  -20 - 80?
• Operating relative humidity
  0 - 90%
• humidity during storage
  0 - 90%
• Broad
  150mm
• depth
  140mm
• Height
  86mm
