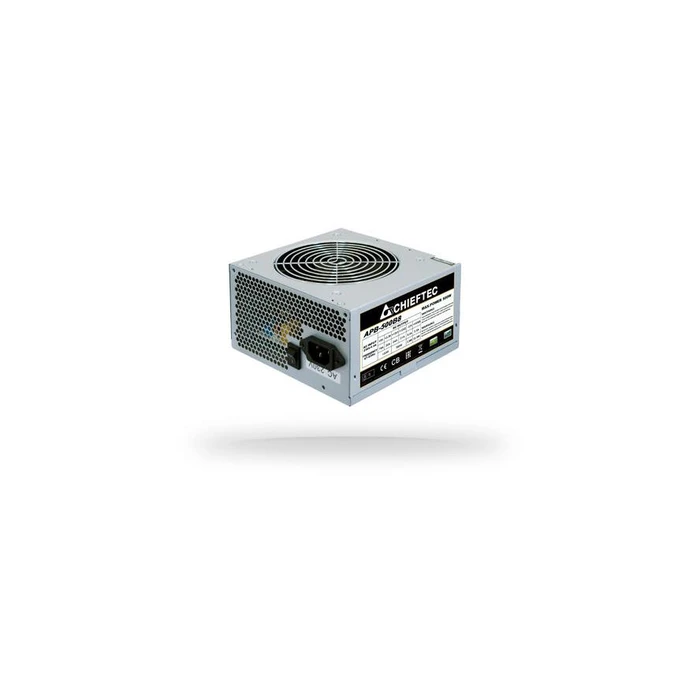

Τροφοδοτικό 500W Chieftec APB-500B8

Technical Specifications

• overall performance
  500W
• AC input voltage
  230V
• AC input frequency
  50Hz
• input current
  4 A
• power factor
  0.9
• Power Factor Correction Filter (PFC)
  active
• Combined Current (+3.3V)
  130W
• Combined current (+5V)
  130W
• Combined current (-12V)
  3.6W
• Combined current (+5Vsb)
  12.5W
• Max. output current (+3.3V)
  22A
• Max. output current (+12V1)
  24A
• Max output current (+12V2)
  21A
• Max output current (+5V)
  19 a
• Max. output current (-12V)
  0.3A
• Max. output current (+5Vsb)
  2.5A
• efficiency
  80%
• energy conservation properties
  Overvoltage, overload protection, short circuit, undervoltage
• Motherboard connector plug
  20+4 pin ATX
• Number of SATA power connectors
  3
• Number of Molex connectors 4pin
  2
• EPS power connector (8-pin)
  no
• Number of PCI Express power connectors 6+2pin
  1
• floppy drive connector
  yes
• purpose
  personal computer
• Power supply unit (PSU) form factor
  ATX
• ATX version
  2.3
• certification
  CE, CB, TUV, EAC
• product color
  Silver
• cooling
  active
• fan diameter
  12 cm
• number of fans
  1 fan
• ON/OFF switch
  yes
• sustainability certificates
  RoHS
• Broad
  150mm
• depth
  140mm
• Height
  87mm
