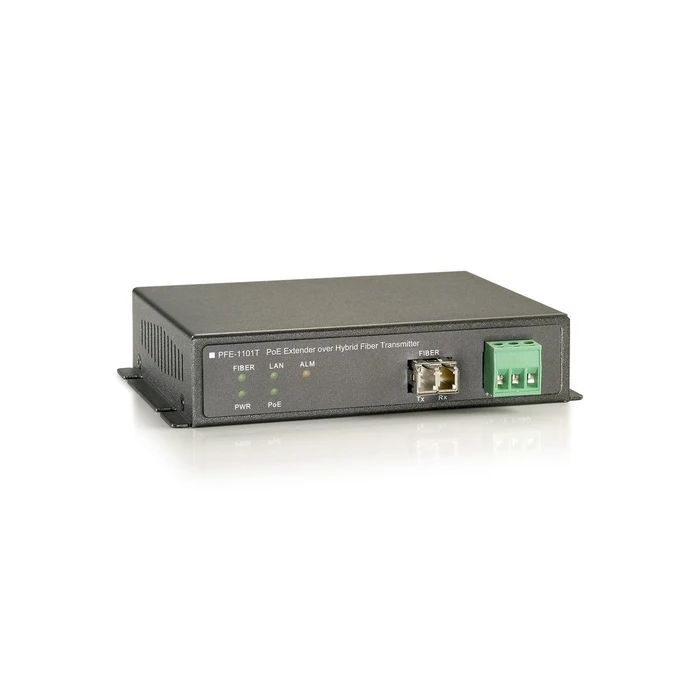

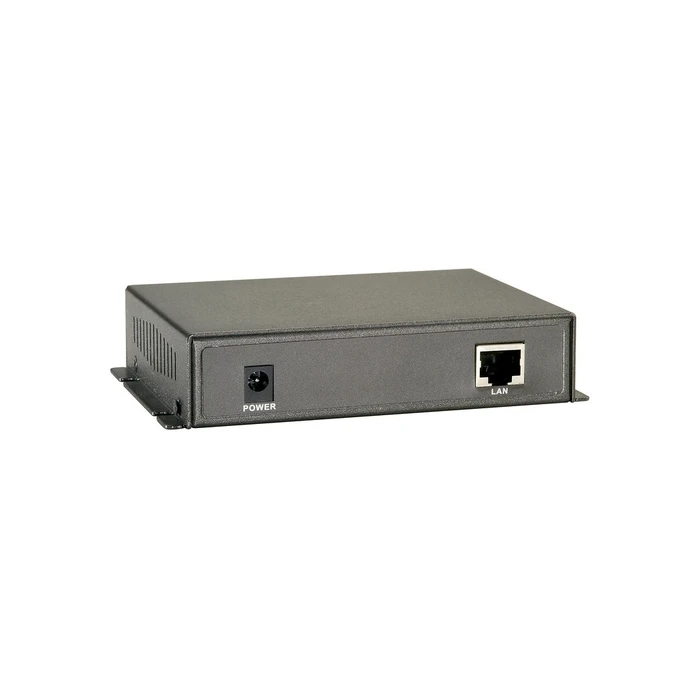

Extender LevelOne PoE Hybrid PFE-1101T Transmitter

Technical Specifications

• Device type
  Network extender
• Form factor
  External
• Connection technology
  Wired
• Wiring type
  10Base-T, 100Base-FX, 100Base-TX
• Data Link Protocol
  10Mb LAN, 100Mb LAN
• Data transfer rate
  100Mbps
• MAC address table size
  1000 entries
• Maximum transmission range
  2km
• Status indicator
  Power supply, alarm, PoE, LAN
• Performance characteristics
  Auto uplink (Auto MDI/MDI-X), half duplex mode, full duplex mode, suitable for wall mounting, 128KB packet buffer, Power Sourcing Equipment (PSE)
• Product certifications
  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Interfaces
  1 x Ethernet 10Base-T/100Base-TX (input) - RJ-45 female 1 x Ethernet 100Base-FX (output) - LC multi-mode female
• Labelling
  FCC
• Power over Ethernet (PoE)
  PoE
• Power supply device
  External power adapter
• Required mains voltage
  AC 120/230V
• Width
  13.3cm
• depth
  9cm
• Height
  2.8cm
• Weight
  250 g
• Min operating temperature
  0°C
• Max. operating temperature
  50°C
• Permissible humidity during operation
  10 - 90% (non-condensing)
