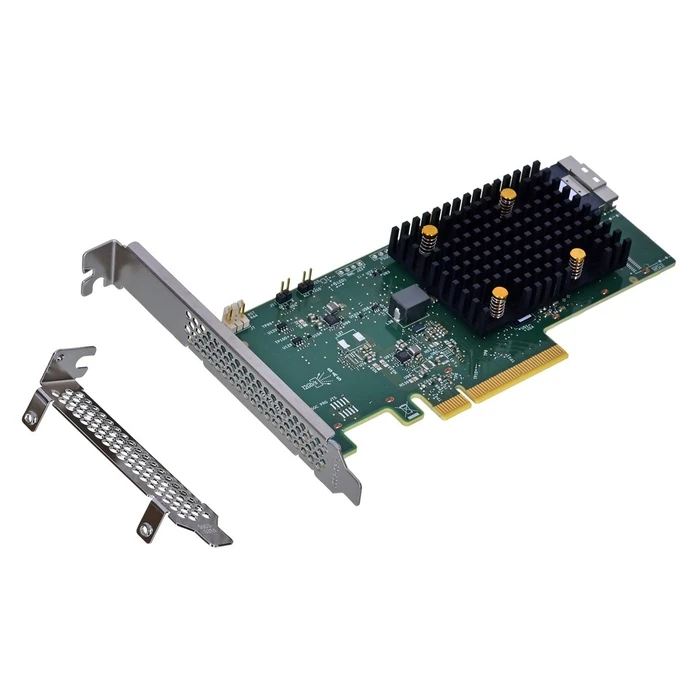

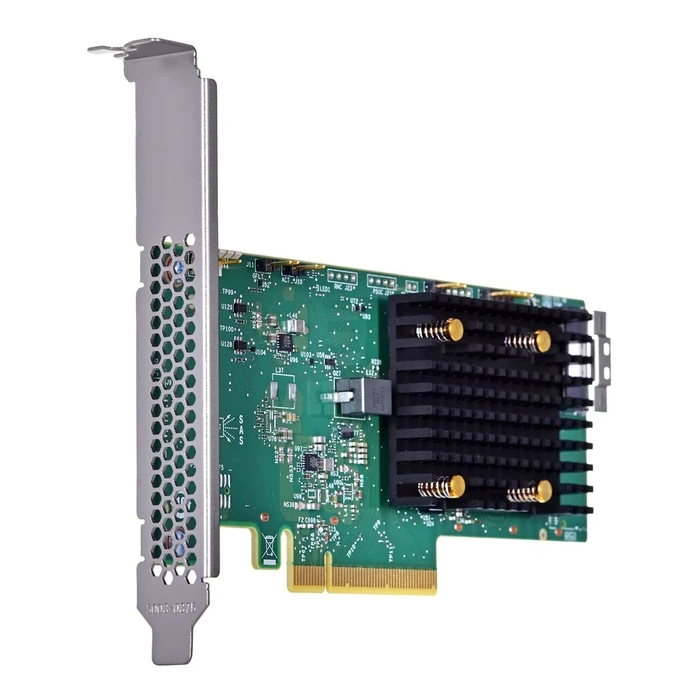

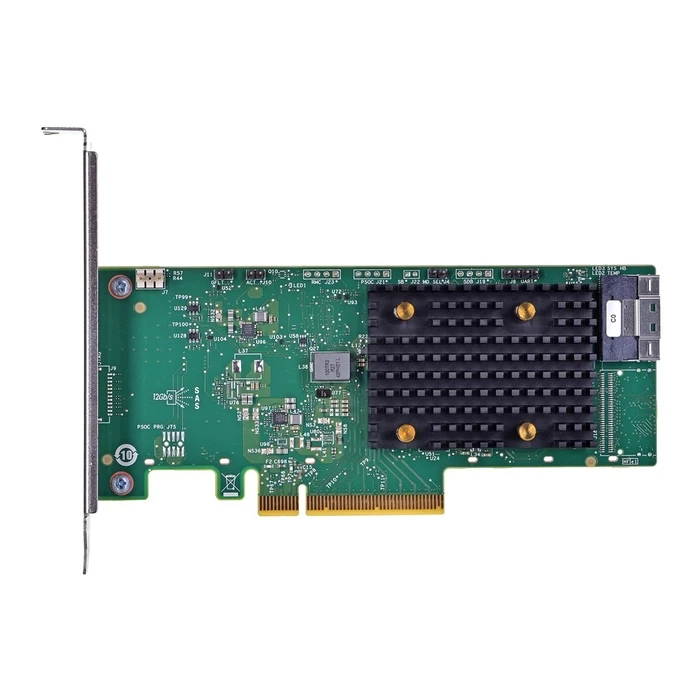

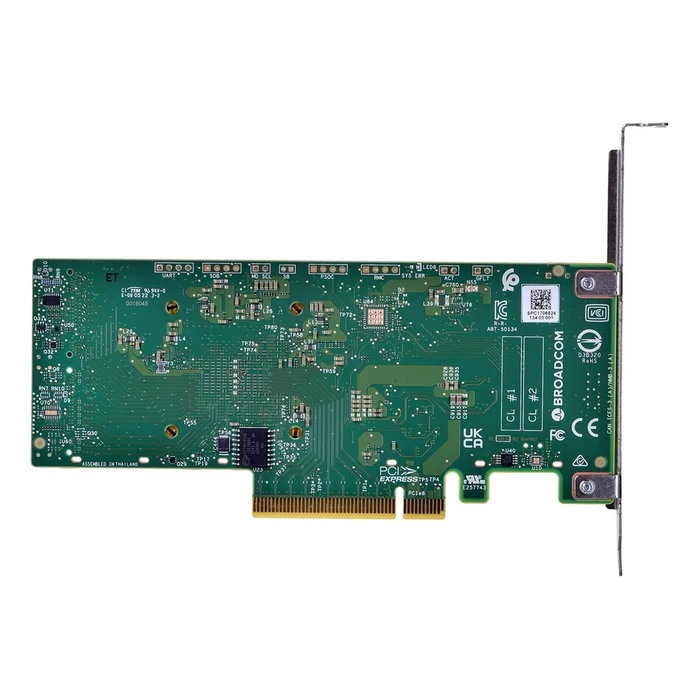

Controller Broadcom 9540-8i RAID PCI-E x8 4.0 12 Gbit/s

Technical Specifications

• Storage relative humidity (H-H)
  5 - 95%
• Operating relative humidity (H-H)
  5 - 90%
• Operating temperature (T-T)
  0 - 55 Β°C
• Storage temperature (T-T)
  -45 - 105 Β°C
• Depth
  155.7 mm
• Height
  68.9 mm
• S.M.A.R.T. support
  Y
• RAID levels
  10
• Data transfer rate
  12 Gbit/s
• Number of devices supported
  32
• Mean time between failures (MTBF)
  3000000 h
• Chipset
  SAS3808
• Internal SAS ports
  8
• Supported storage drive interfaces
  Serial ATA III
• Host interface
  PCI Express x8
• PCI Express slots version
  4.0
