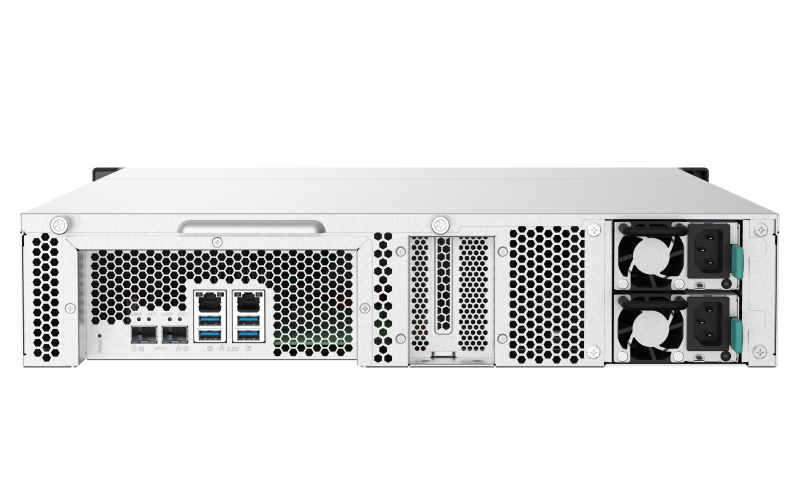

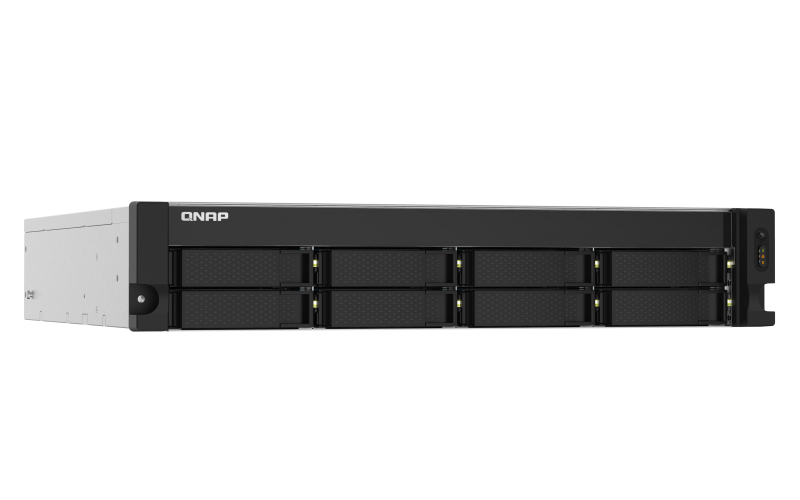

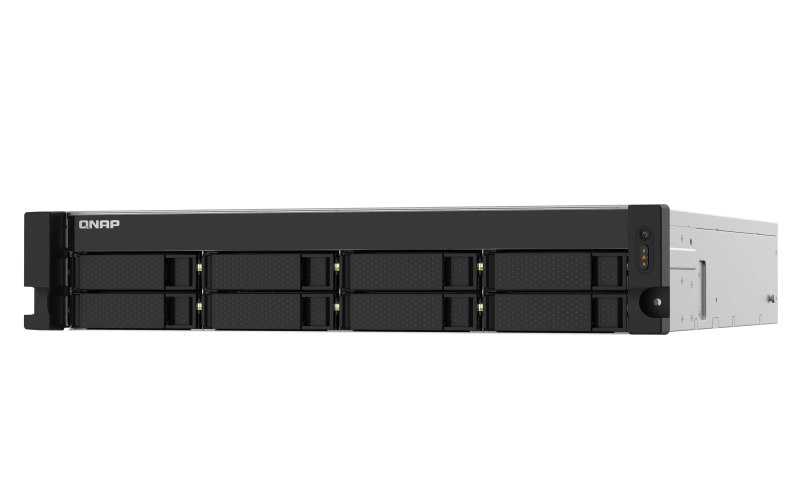

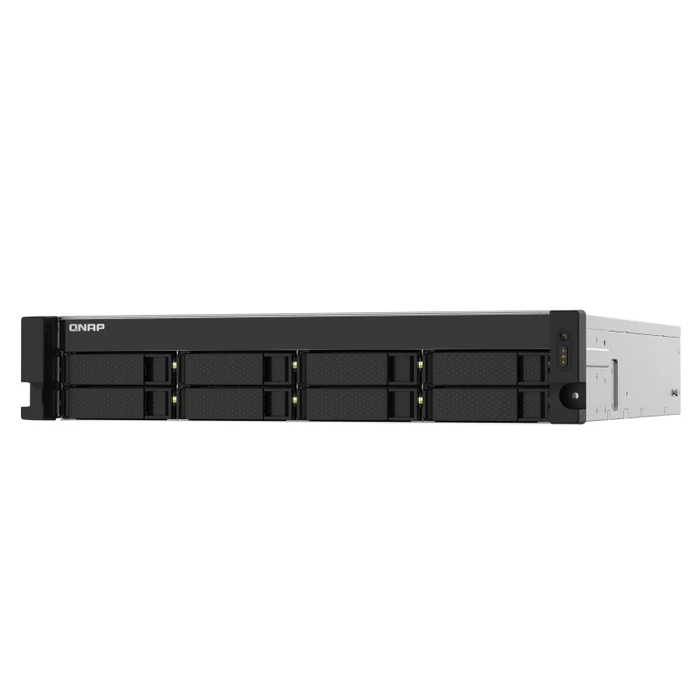

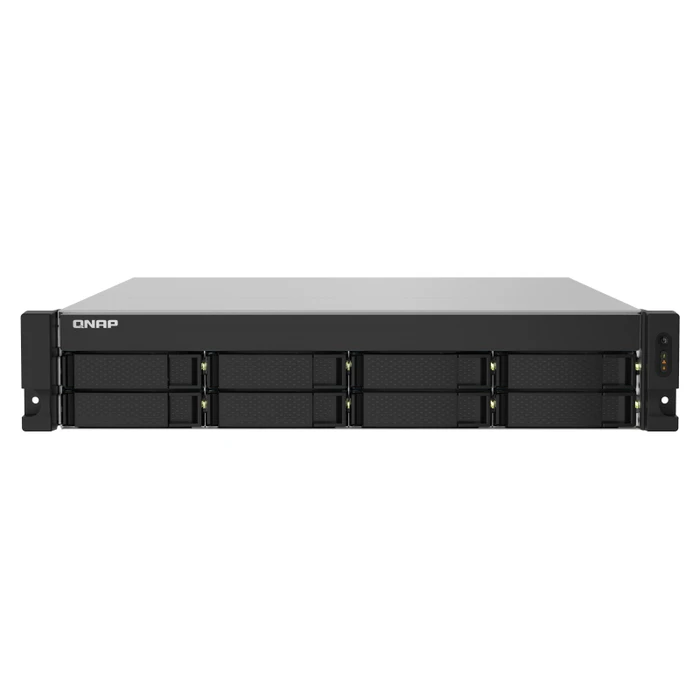

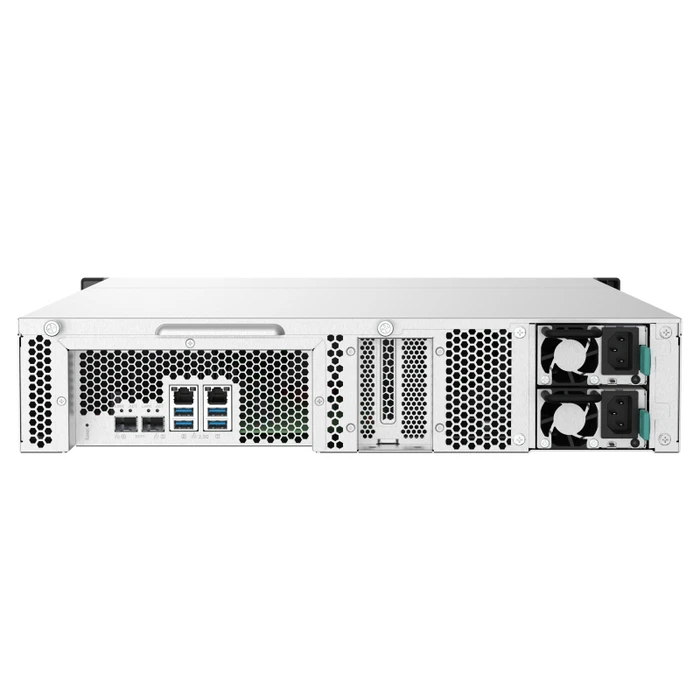

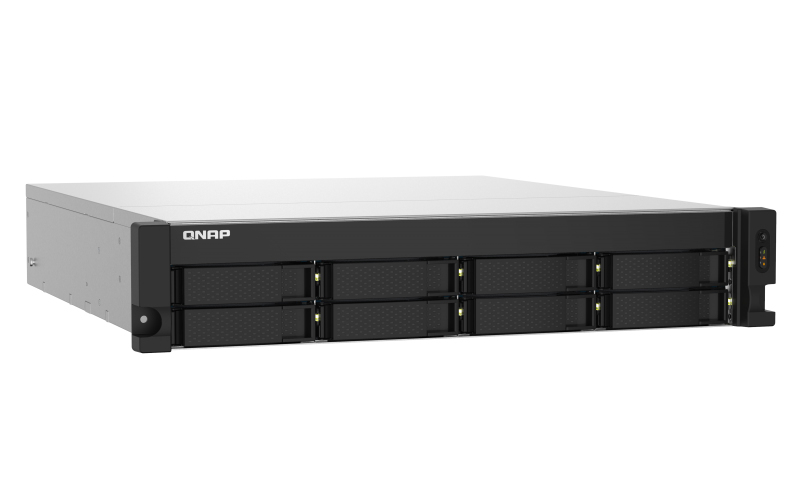

NAS QNAP TS-832PXU-RP Rack (2U) Ethernet LAN Black AL324

Technical Specifications

• Processor model
  AL324
• Processor family
  Annapurna Labs
• Processor cores
  4
• Processor manufacturer
  Annapurna Labs
• Processor frequency
  1.7 GHz
• Internal memory
  4 GB
• Internal memory type
  DDR4
• Flash memory
  512 MB
• Memory form factor
  UDIMM
• Maximum RAM supported
  16 GB
• Memory slots
  1
• Product colour
  Black
• Cooling type
  Active
• LED indicators
  Status
• Number of fans
  2 fan(s)
• Fan diameter
  7 cm
• Chassis type
  Rack (2U)
• AC input voltage
  100 - 240 V
• Power consumption (typical)
  69.191 W
• Power supply location
  Built-in
• Number of power supply units
  2
• Fan voltage
  12 V
• Power supply unit (PSU) capacity
  250 W
• Operating temperature (T-T)
  0 - 40 °C
• Operating relative humidity (H-H)
  5 - 95%
• Depth
  534 mm
• Package weight
  16.9 kg
• Width
  482 mm
• Height
  89 mm
• Weight
  10.9 kg
• Ethernet LAN data rates
  10000 Mbit/s
• DHCP client
  Y
• Ethernet LAN
  Y
• Wake-on-LAN ready
  Y
• Load balancing system
  Y
• iSCSI support
  Y
• Supported network protocols
  PPTP, L2TP/IPSec, OpenVPN, QBelt
• WLAN adapter supported
  Y
• Link aggregation
  Y
• Jumbo frames support
  Y
• DHCP server
  Y
• Ethernet LAN data rate supported (max)
  10000 Mbit/s
• On/off switch
  Y
• Noise level
  30.6 dB
• Security algorithms
  256-bit AES
• Web-based management
  Y
• Reset button
  Y
• Type
  NAS
• Hot spare
  Y
• Backup features
  Cloud
• Snapshot
  Y
• Multilingual support
  Y
• Access Control List (ACL)
  Y
• Buzzer
  Y
• Universal Plug and Play (UPnP)
  Y
• Built-in FTP server
  Y
• System log
  Y
• USB copy function
  Y
• S.M.A.R.T. support
  Y
• Browser supported
  Mozilla Firefox, Microsoft Internet Explorer 10+, Apple Safari 7+, Google Chrome
• Backup function
  Y
• Device class
  Small & Medium Business
• Share folder
  CIFS/SMB
• Cables included
  AC
• Number of screws
  56
• Mac operating systems supported
  Mac OS X 10.10 Yosemite
• Operating system installed
  QNAP Turbo System
• Windows operating systems supported
  Windows 7
• Operating system version
  4.4.3
• Server operating systems supported
  Windows Server 2012 R2
• Linux operating systems supported
  Y
• RAID levels
  5
• Number of storage drives supported
  8
• Supported storage drive interfaces
  Serial ATA II, Serial ATA III
• Supported storage drive types
  HDD & SSD
• Storage drive sizes supported
  3.5"
• RAID support
  Y
• Hot-swap drive bays
  Y
• Supported file systems
  ext3
• Storage drives installed
  N
• Installed storage drive type
  N
• RAID rebuild
  Y
• Online RAID migration
  Y
• Online RAID expansion
  Y
• Bad block scan
  Y
• Ethernet LAN (RJ-45) ports
  2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  4
• Fiber optic connector
  SFP+
• USB port
  Y
• Fiber ports quantity
  2
