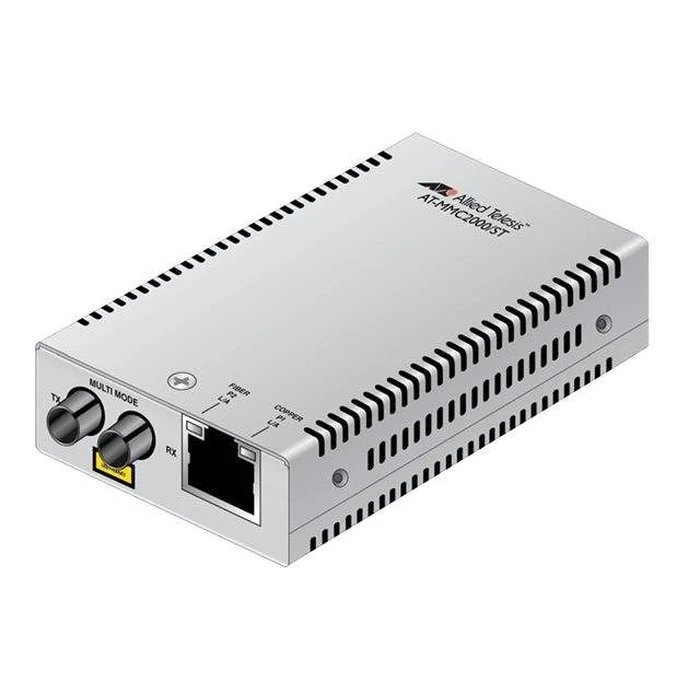

Media Converter Allied Telesis 1000SX/ST TO 10/100/1000T TAA

Technical Specifications

• Form Factor
  External
• Localisation
  Australia, United Kingdom, United States, Europe
• Connectivity Technology
  Wired
• Cabling Type
  10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T
• Data Link Protocol
  GigE
• Data Transfer Rate
  1 Gbps
• Optical Wave Length
  850 nm
• MAC Address Table Size
  2K entries
• Max Transfer Distance
  550 m
• Status Indicators
  Power, system, link/activity
• Features
  Full duplex capability, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), store and forward, wall mountable, Jumbo Frames support, Energy Efficient Ethernet, Automatic Link Restoration
• Compliant Standards
  IEEE 802.1Q
• Interfaces
  1 x Ethernet 1000Base-SX - ST multi-mode female x 2 ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female
• Compliant Standards
  FCC Class A certified, VCCI, C-Tick, CISPR 22 Class A, UL 60950-1, EN 60950-1, EN 55022 Class A
• TAA Compliant
  Yes
• Power Device
  External power adapter
• Width
  5.49 cm
• Depth
  10.16 cm
• Height
  2.18 cm
• Weight
  170 g
• Min Operating Temperature
  0 °C
• Max Operating Temperature
  50 °C
• Humidity Range Operating
  5 - 95% (non-condensing)
