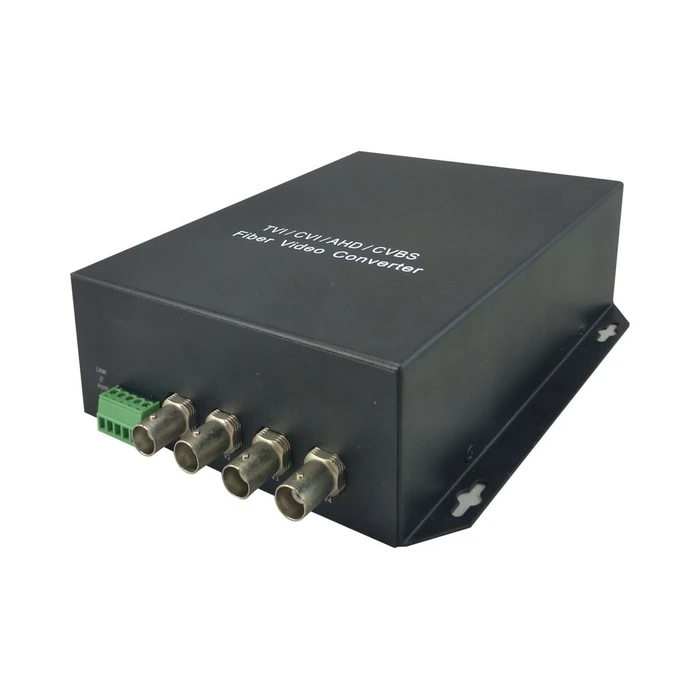

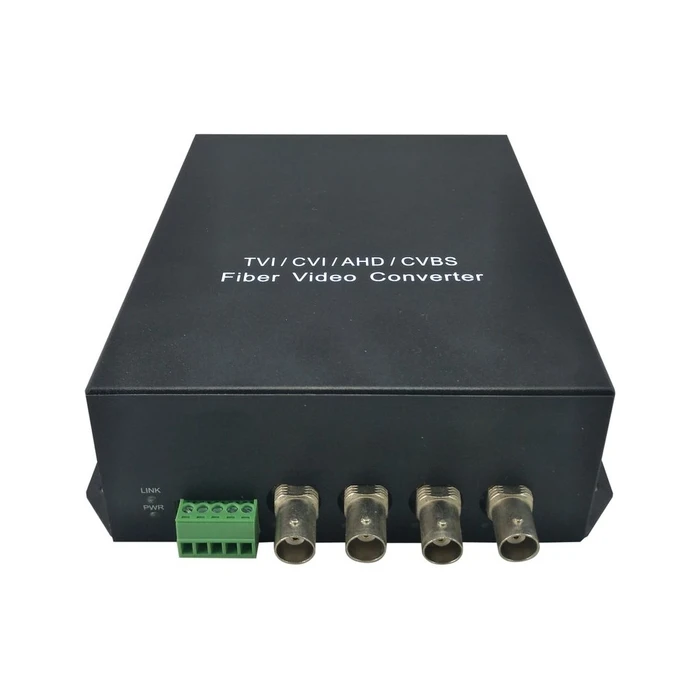

Αξεσουάρ Δικτύου LevelOne 4Port Extender Kit, 20km

Technical Specifications

• Type
  AV transmitter
• Maximum possible transmission distance
  20000m
• Supported fiber optic wavelengths
  1470-1610,1310nm
• Linearities
  1.3%DG 1.3%DP
• Uncorrectable Bit Error Rate (UBER)
  < 1 per 10^9 bits read
• Supported wavelengths
  1310nm
• RX Sensitivity
  -26dB
• Impedance
  75 ohms
• Bandwidth
  6.5MHz
• Signal-to-noise ratio (SNR)
  60dB
• Plug & Play
  LED displays
• Product color
  Black
• Certification
  CE, FCC
• Width
  116.5mm
• depth
  48mm
• Height
  157.1mm
• Weight
  1.38kg
• Packaging width
  250mm
• Packaging depth
  115mm
• Packaging height
  405mm
• Package weight
  1.54kg
• Packaging type
  box
• Transmission technology
  Wired
• Optical cable connector
  FC
• BNC inputs
  4
• Direct current connection (DC)
  yes
• Working voltage
  5V
• Input current
  3 A
• operating temperatur
  -20 - 70 °C
• Relative humidity in operation
  0 - 95%
• AC power adapter
  Quick start overview
• Country of origin
  China
