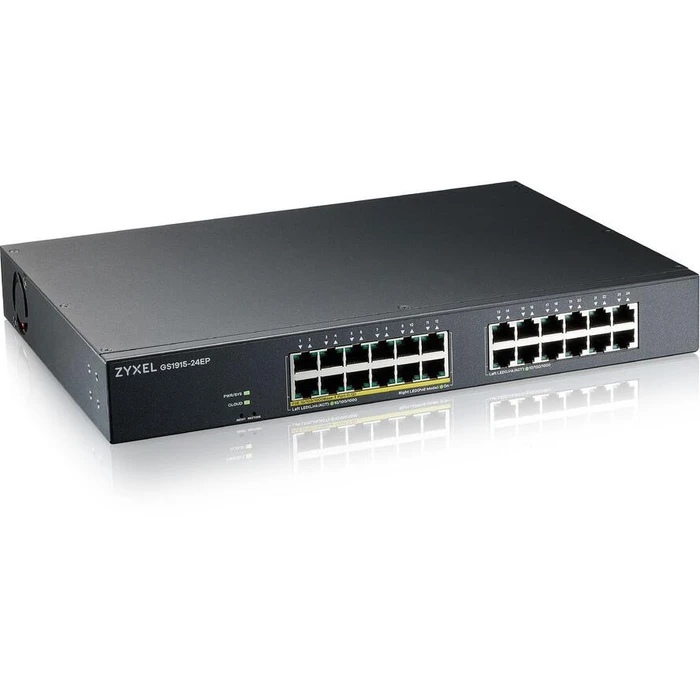

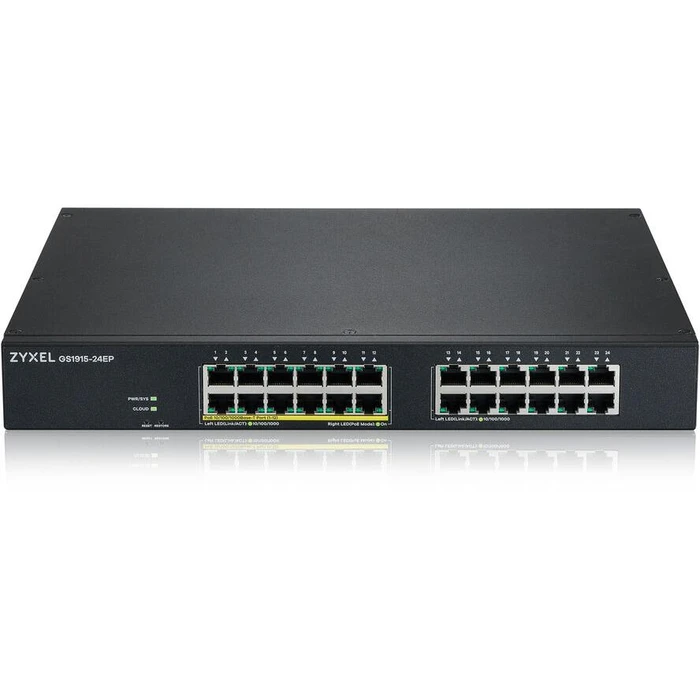

Network Switch Zyxel 24-Port GbE+ 130Watt 802.3at Smart NebulaFlex.

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  24
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• mesh standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.1p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
• 10G support
  no
• port mirroring
  yes
• Support data flow control
  yes
• Spanning Tree Protocol
  yes
• Broadcast Storm Control
  yes
• Ethernet LAN data transfer rates
  100.1000Mbps
• VLAN support
  yes
• Virtual LAN functions
  Port based VLAN
• MAC address table
  8000 entries
• Routing/Switching Capacity
  48 Gbps
• transfer rate
  35.7 Mpps
• Jumbo frames support
  yes
• jumbo frames
  9000
• DHCP functions
  DHCP relay, DHCP client
• IGMP snooping
  yes
• Supported security algorithms
  HTTPS, SSH-2, SSL/TLS, SHA-2
• password protection
  yes
• SSH/SSL support
  yes
• loop protection
  yes
• Multicast support
  yes
• management logs
  SNMP v1, v2c, v3
• Rack mount
  yes
• form factor
  1U
• product color
  Black
• LED indicators
  yes
• wall mounting
  yes
• switch type
  managed
• switch level
  L2
• Quality of Service (QoS) support
  yes
• cloud managed
  yes
• Web-based management
  yes
• MIB support
  Y
• Fanless
  yes
• MTBF (PoE)
  768989 h
• packaging width
  389mm
• packing depth
  337mm
• packing height
  79mm
• package weight
  3.87kg
• Broad
  330mm
• depth
  230mm
• Height
  44mm
• weight
  2.48kg
• operating temperatur
  0 - 40 °C
• Storage temperature range
  -40 - 70?
• Operating relative humidity
  10 - 95%
• heat dissipation
  566 BTU/hr
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet (PoE) ports
  12
• Total power Power over Ethernet (PoE)
  130W
• energy source
  AC
• Power adapter included
  yes
• AC input voltage
  100 - 240V
• AC input frequency
  50/60Hz
• Power consumption (max.)
  166.1W
