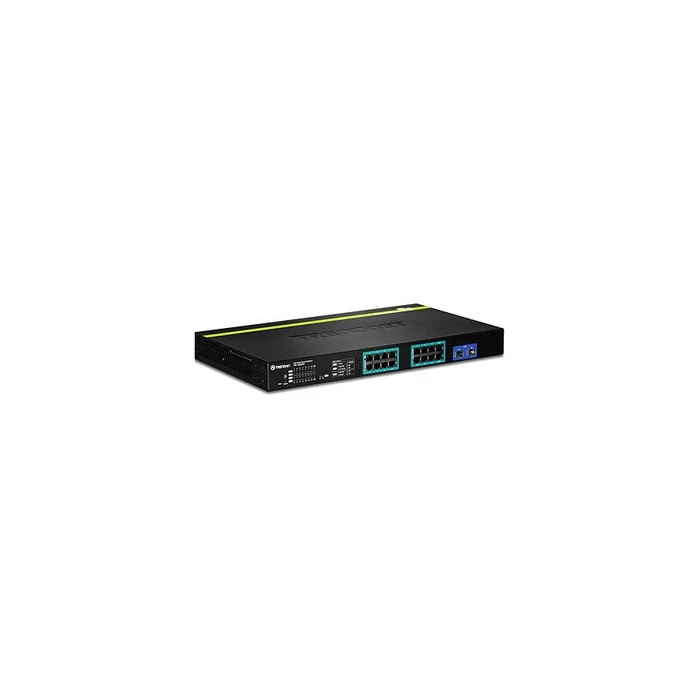

Network Switch TRENDnet 16 Port Gbit Managed L2 PoE+ 185W WebSmart

Technical Specifications

• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Number of Gigabit Ethernet (copper) connections
  16
• Number of combo SPF ports
  2
• VLAN support
  yes
• Number of VLANs
  256
• Network standard
  IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u , IEEE 802.3x
• 10G support
  no
• Copper ethernet cabling technology
  1000BASE-T, 100BASE-TX, 10BASE-T
• Port mirroring
  yes
• Full duplex
  yes
• Link aggregation
  yes
• Support data flow control
  yes
• Broadcast storm control
  yes
• Spanning Tree Protocol
  yes
• MAC address table
  16,000 entries
• Routing / switching capacity
  32 Gbit / s
• Passage
  23.8 Mpps
• Jumbo frames support
  yes
• DHCP functions
  DHCP server, DHCP client
• Access Control List
  yes
• IGMP snooping
  yes
• Supported security algorithms
  802.1x RADIUS, SSL / TLS
• Filter MAC addresses
  yes
• Multicast support
  yes
• Management protocols
  HTTP / HTTPS (SSL v2 / 3 TLS), web-based GUI, SNMP v1 / v2c / v3, LLDP, RMON v1
• Certification
  CE FCC
• Rack installation
  yes
• Form factor
  1U
• Product color
  black
• LED indicators
  yes
• MIB support
  MIB II
• Switch type
  Managed
• Switch level
  L2
• Quality of Service (QoS) support
  yes
• Web based management
  yes
• width
  440 mm
• depth
  251 mm
• height
  44.5 mm
• Weight
  3.6 kg
• Operating temperature range
  0 - 45 ° C
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet plus (PoE +) connections
  16
• Total power over Ethernet (PoE)
  185 W
• AC input voltage
  100-240V
• AC input frequency
  50-60 Hz
• Power consumption (in operation)
  198 W
