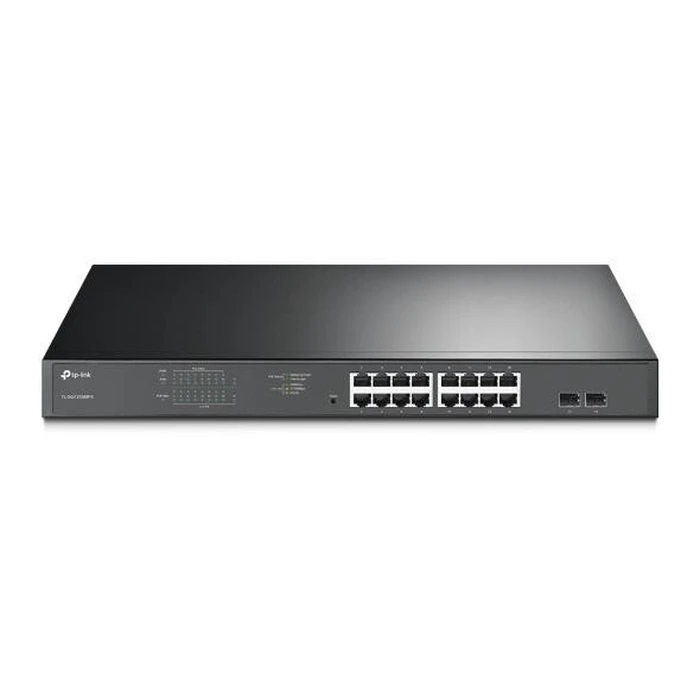

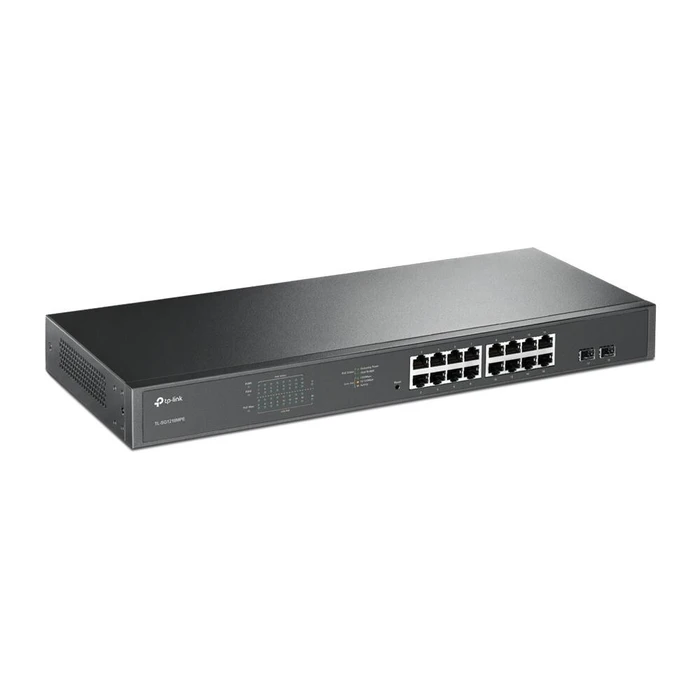

Network Switch TP-LINK TL-SG1218MPE Managed Gigabit (10/100/1000) Black

Technical Specifications

• Switch type
  Managed
• Web-based management
  Y
• Basic switching RJ-45 Ethernet ports quantity
  16
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• SFP module slots quantity
  2
• Networking standards
  IEEE 802.1pIEEE 802.1QIEEE 802.3Expand
• 10G support
  N
• Copper ethernet cabling technology
  1000BASE-T100BASE-TX10BASE-T
• Cable types supported
  Cat3Cat4Cat5Expand
• Port mirroring
  Y
• Link aggregation
  Y
• Broadcast storm control
  Y
• Rate limiting
  Y
• Auto MDI/MDI-X
  Y
• Auto-negotiation
  Y
• VLAN support
  Y
• Number of VLANs
  32
• Fiber ethernet cabling technology
  1000BASE-X
• Switching capacity
  36 Gbit/s
• Forwarding rate
  23.8 Mpps
• MAC address table
  8000 entries
• Store-and-forward
  Y
• Number of queues
  4
• Jumbo frames support
  Y
• Jumbo frames
  9000
• IGMP snooping
  Y
• Rack mounting
  Y
• Product colour
  Black
• Number of fans
  2 fan(s)
• Power supply included
  Y
• AC input voltage
  100 - 240 V
• AC input frequency
  50/60 Hz
• Power consumption (max)
  217.22 W
• Power over Ethernet (PoE)
  Y
• Power over Ethernet plus (PoE+) ports quantity
  16
• Total Power over Ethernet (PoE) budget
  192 W
• Operating temperature (T-T)
  0 - 50 °C
• Storage temperature (T-T)
  -40 - 70 °C
• Operating relative humidity (H-H)
  10 - 90%
• Storage relative humidity (H-H)
  5 - 90%
• Heat dissipation
  741.15 BTU/h
• Width
  440 mm
• Depth
  180 mm
• Height
  44 mm
• Cables included
  AC
• User guide
  Y
• Rack mount kit
  Y
