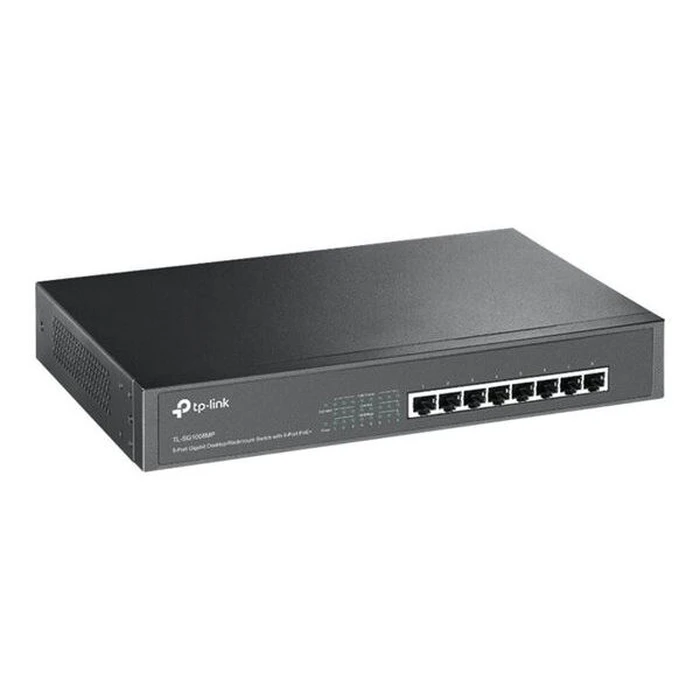

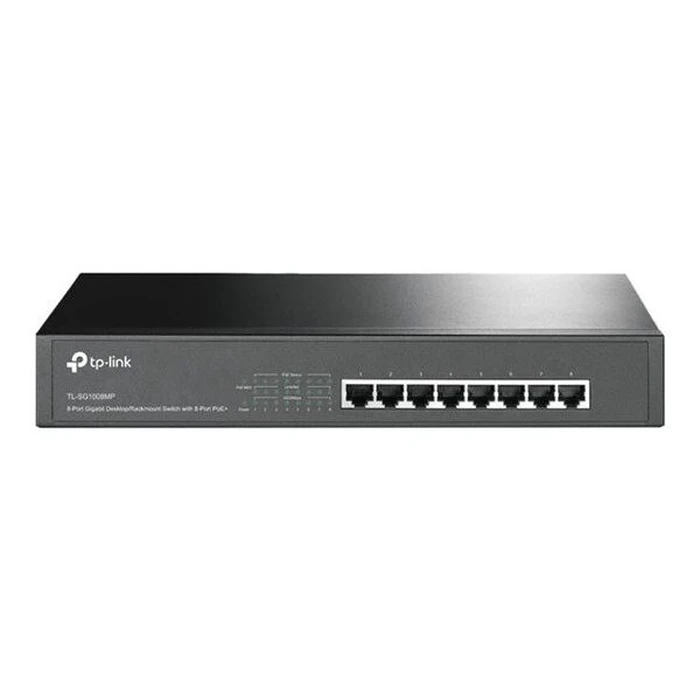

Network Switch TP-Link 1000MP 8P. 4P PoE+ RM v1

Technical Specifications

• Device Type
  Switch - 8 ports - unmanaged
• Enclosure Type
  Desktop, rack-mountable
• Subtype
  Gigabit Ethernet
• Ports
  8 x 10/100/1000 (PoE+)
• Power Over Ethernet (PoE)
  PoE+
• PoE Budget
  126 W
• Performance
  Bandwidth: 16 Gbps
• MAC Address Table Size
  4K entries
• Jumbo Frame Support
  16KB
• Features
  Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, store and forward, half duplex mode, full duplex mode, Quality of Service (QoS), Jumbo Frames support, DiffServ Code Point (DSCP) support, 1.5MB packet buffer, Back Pressure Support, 1 fan
• Compliant Standards
  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 801.1p, IEEE 802.3at
• Built-in Devices
  Led panel
• Status Indicators
  Power, 1000M device connected, PoE, link/activity
• Interfaces
  8 x 1000Base-T RJ-45 PoE+ - 30 W
• Power Device
  Internal power supply
• Voltage Required
  AC 120/230 V (50/60 Hz)
• Power Consumption Operational
  140.67 Watt
• Included Accessories
  Rubber feet
• Rack Mounting Kit
  Included
• Compliant Standards
  Plug and Play, FCC, RoHS
• Width
  29.4 cm
• Depth
  18 cm
• Height
  4.4 cm
• Min Operating Temperature
  0 °C
• Max Operating Temperature
  40 °C
• Humidity Range Operating
  10 - 90% (non-condensing)
• Min Storage Temperature
  -40 °C
• Max Storage Temperature
  70 °C
• Humidity Range Storage
  5 - 90% (non-condensing)
