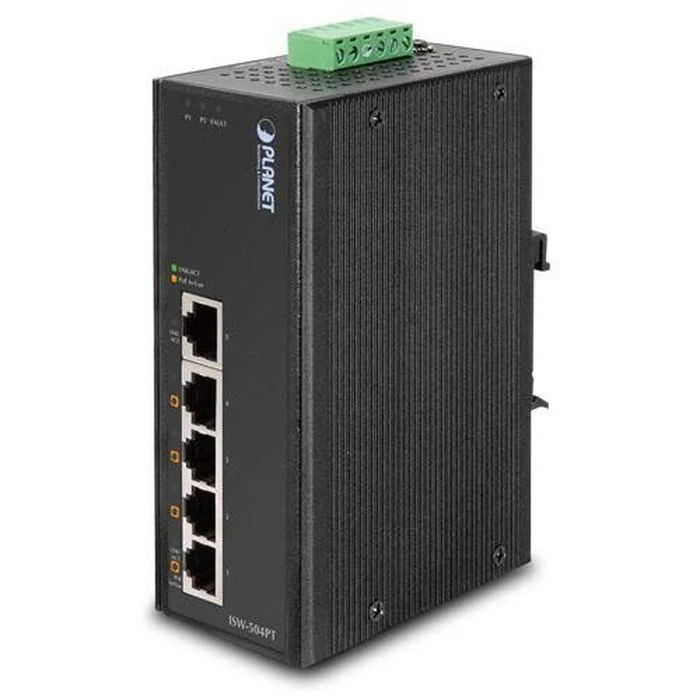

Network Switch Planet 5-Port Industrial Ethernet w/ 4 PoE (-40~75

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  5
• Basic switching RJ-45 Ethernet ports type
  Fast Ethernet (10/100)
• Network standard
  IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
• 10G support
  No
• support cable types
  Cat5, Cat5e, Cat6
• Full duplex
  Yes
• Self-learning of MAC addresses supported
  Yes
• Auto-negotiation function
  Yes
• Auto MDI / MDI-X
  Yes
• Support data flow control
  Yes
• Auto-aging of MAC addresses supported
  Yes
• MAC address table
  2048 entries
• Routing / switching capacity
  1 Gbit / s
• Continuity
  0.74 Mpps
• Store and forward
  Yes
• Certification
  FCC, CE
• Rack installation
  No
• Product color
  black
• LED indicators
  Yes
• DIN rail assembly
  Yes
• Wall mounting
  Yes
• International protection class (IP code)
  IP30
• Switch type
  Unmanaged
• Switch level
  L2
• width
  87.8 mm
• depth
  135 mm
• height
  56 mm
• Weight
  842 g
• Operating temperature range
  -40 - 75 ° C
• Storage temperature range
  -40 - 85 ° C
• Operating humidity
  5 - 90%
• Storage humidity
  5 - 90%
• Power over Ethernet (PoE)
  Yes
• Number of Power over Ethernet (PoE) connections
  4th
• Power over Ethernet (PoE) performance per connection
  15.4 W.
• Energy protection properties
  Short circuit
• Support for redundant power supply
  Yes
