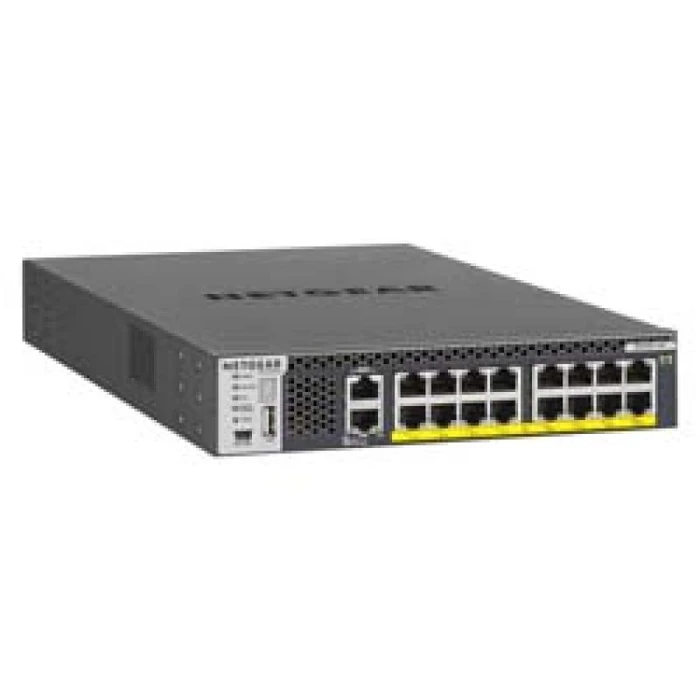

Network Switch Netgear XSM4316PB-100NES

Technical Specifications

• Device Type
  Switch - 16 ports - L3 - Managed - stackable
• Enclosure Type
  Rack-mountable 1U
• Subtype
  10 Gigabit Ethernet
• Ports
  16 x 100/1000/2.5G/5G/10GBase-T (PoE+)
• Power Over Ethernet (PoE)
  PoE+
• PoE Budget
  500 W
• Performance
  Switching fabric bandwidth: 480 Gbps ¦ Throughput: 238 Mpps
• Capacity
  Packet buffer size: 16 MB
• MAC Address Table Size
  16K entries
• Jumbo Frame Support
  9KB
• Routing Protocol
  RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP
• Remote Management Protocol
  SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
• Encryption Algorithm
  SHA, MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0
• Authentication Method
  RADIUS, TACACS+, Secure Shell v.2 (SSH2)
• Features
  BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Non-Stop Forwarding (NSF), sFlow, Per-VLAN Spanning Tree Plus (PVST+), Uni-Directional Link Detection (UDLD), LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST), Management Information Base (MIB), dual firmware images, Class of Service (CoS), Precision Time Protocol (PTP), Spanning-tree Root Guard (STRG), Authentication, Authorization and Accounting (AAA), User Datagram Protocol (UDP), Protocol Independent Multicast (PIM)
• Compliant Standards
  IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
• Processor
  : 800 MHz
• RAM
  1 GB
• Flash Memory
  256 MB
• Status Indicators
  Status
• Interfaces
  16 x 100/1000/2.5G/5G/10GBase-T RJ-45 PoE+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x console (mini-USB) ¦ 1 x USB Type A
• Power Device
  Internal power supply
• Installed Qty
  1
• Max Supported Qty
  1
• Power Provided
  600 Watt
• Voltage Required
  AC 120/230 V
• Power Consumption Operational
  610 Watt
• 80 PLUS Certification
  80 PLUS
• Features
  Front-to-rear airflow
• MTBF
  690,301 hours
• Compliant Standards
  SCCP
• Localisation
  United States, Europe
• Width
  21.2 cm
• Depth
  34.5 cm
• Height
  4.4 cm
• Weight
  3.22 kg
• Service & Support
  Limited warranty - lifetime
