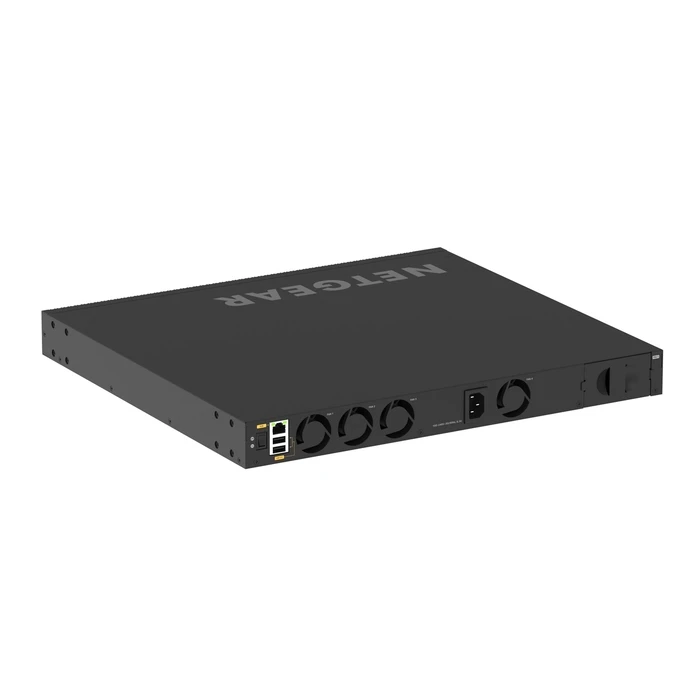

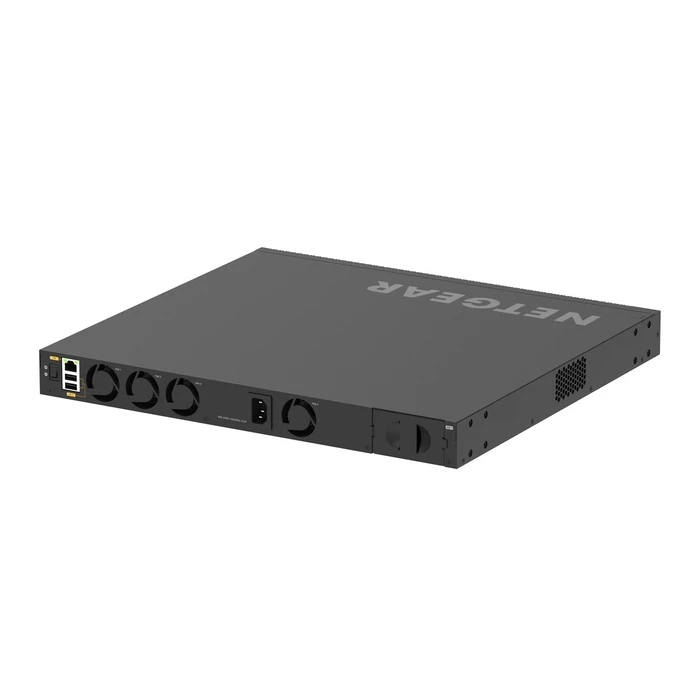

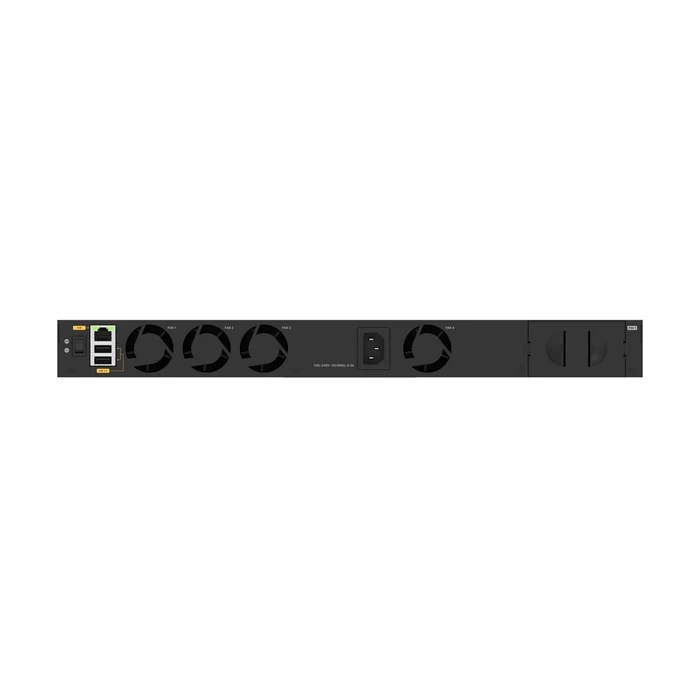

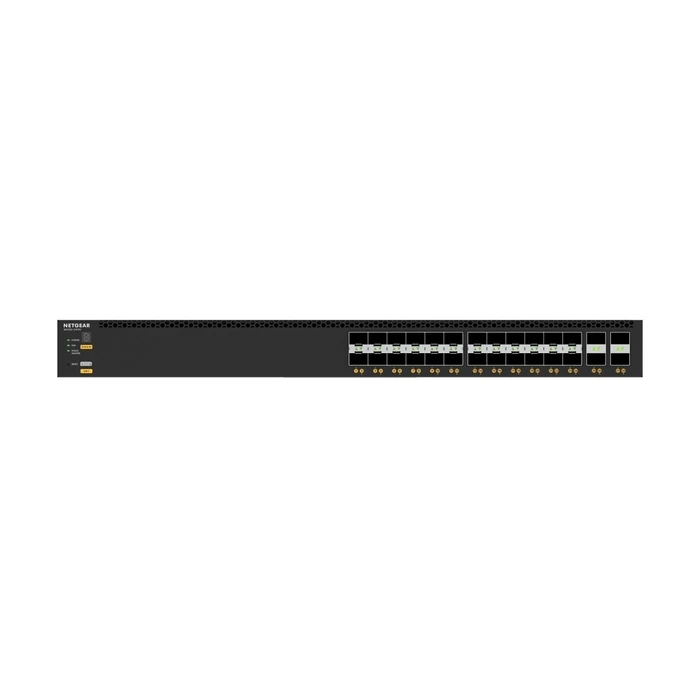

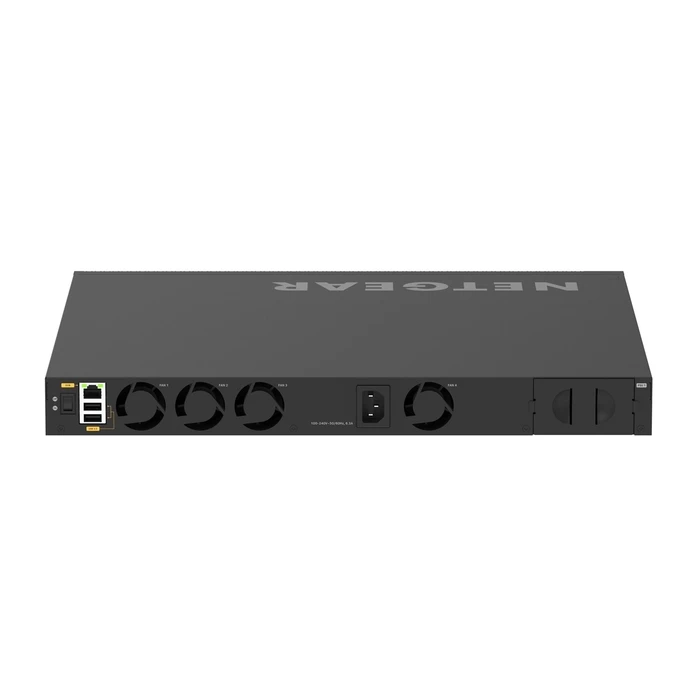

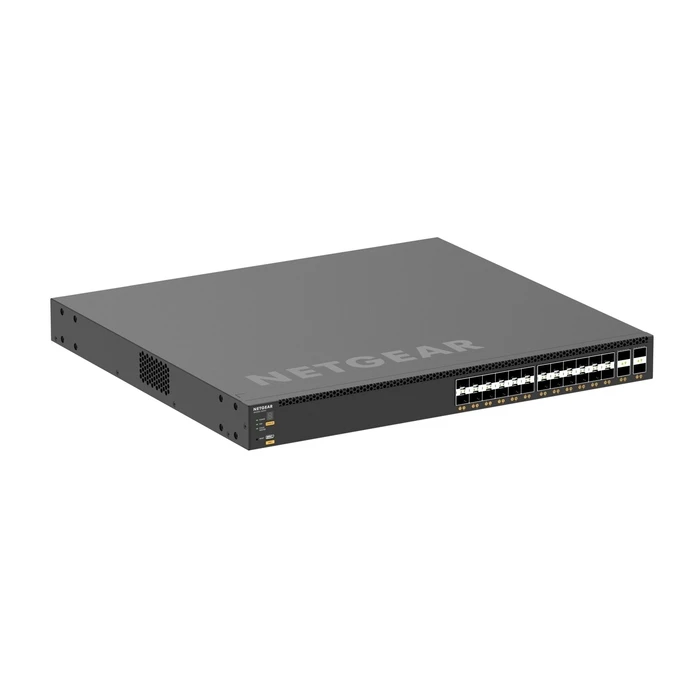

Network Switch Netgear M4350-24F4V Managed L3 None 1U Black

Technical Specifications

• Product colour
  Black
• LED indicators
  Yes
• Form factor
  1U
• Rack mounting
  Yes
• Stackable
  Yes
• Airflow direction
  Front-to-back airflow
• AC input frequency
  50/60 Hz
• Power consumption (typical)
  119.3 W
• AC input voltage
  100 - 240 V
• Power source
  AC
• Input current
  6.3 A
• Power supply included
  Yes
• MAC address filtering
  Yes
• Password protection
  Yes
• Static port security
  Yes
• IGMP proxy
  Yes
• IGMP snooping
  Yes
• Root protection
  Yes
• DoS attack prevention
  Yes
• DHCP features
  DHCP server
• BPDU filtering/protection
  Yes
• Access Control List (ACL) ingress
  511
• Loop protection
  Yes
• Authentication type
  RADIUS, TACACS+
• Authentication
  Guest VLAN, MAC-based authentication
• Queue scheduling algorithms
  Strict Priority Queue (SPQ)
• Access Control List (ACL)
  Yes
• Access Control List (ACL) egress
  1023
• Operating temperature (T-T)
  0 - 50 °C
• Operating altitude
  0 - 3000 m
• Non-operating altitude
  0 - 3000 m
• Storage relative humidity (H-H)
  0 - 95%
• Operating relative humidity (H-H)
  0 - 90%
• Storage temperature (T-T)
  -20 - 70 °C
• Heat dissipation
  374.6 BTU/h
• Web-based management
  Yes
• Quality of Service (QoS) support
  Yes
• ARP inspection
  Yes
• Switch type
  Managed
• Switch layer
  L3
• Weight
  6.25 kg
• Width
  440 mm
• Depth
  400 mm
• Height
  43.2 mm
• VLAN support
  Yes
• Networking standards
  IEEE 802.1w
• Full duplex
  Yes
• Spanning tree protocol
  Yes
• Broadcast storm control
  Yes
• Link aggregation
  Yes
• Policy-based routing
  Yes
• Rate limiting
  Yes
• Virtual LAN features
  Voice VLAN
• Flow control support
  Yes
• 10G support
  Yes
• Number of VLANs
  4093
• IPv6 routes
  256
• IPv4 routes
  512
• 6to4 tunnel
  Yes
• Flash memory
  512 MB
• Processor model
  ARM Cortex-A57
• Mean time between failures (MTBF)
  778741 h
• Noise level
  61.8 dB
• Built-in processor
  Yes
• Processor frequency
  1800 MHz
• Memory type
  DDR4-SDRAM
• Internal memory
  2048 MB
• sFlow
  Yes
• Cables included
  AC
• User guide
  Yes
• Included power plug types
  EU
• Rack mount kit
  Yes
• Routing protocols
  OSPF
• Management protocols
  SNMP V1, V2, V3
• GARP VLAN Registration Protocol (GVRP)
  Yes
• USB 2.0 ports quantity
  2
• Power connector
  AC-in jack
• Console port
  RJ-45
• Basic switching RJ-45 Ethernet ports type
  None
• SFP+ module slots quantity
  24
• SFP28 ports quantity
  4
• Power supply
  240 W
• Switching capacity
  680 Gbit/s
• Jumbo frames support
  Yes
• Latency (10 Gbps)
  0.63 ΅s
• Jumbo frames
  12000
• Throughput
  505.92 Mpps
• Store-and-forward
  Yes
• Latency (1 Gbps)
  1.06 ΅s
• MAC address table
  16000 entries
• Packet buffer memory
  32 MB
• Static route
  Yes
• Power over Ethernet (PoE)
  No
• Multicast Listener Discovery (MLD) snooping
  Y
• Multicast support
  Yes
• Sustainability compliance
  Yes
• Sustainability certificates
  Low Voltage Directive (LVD)
