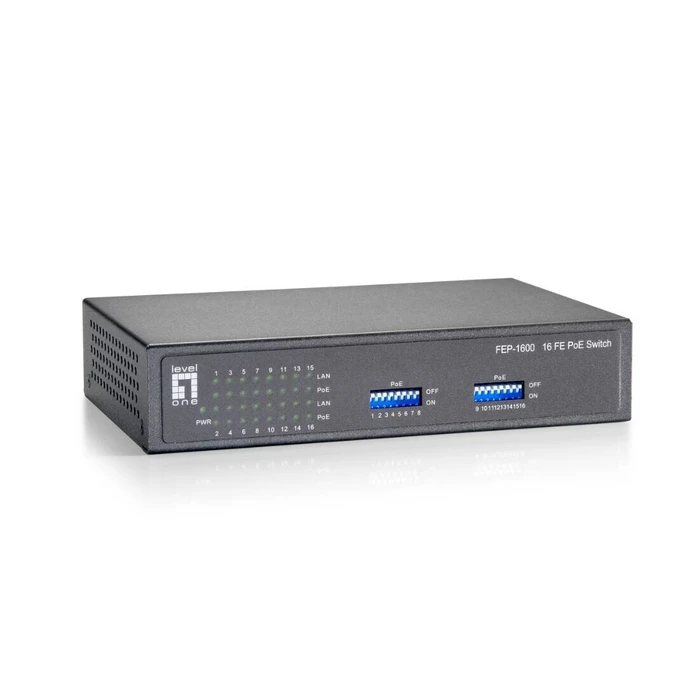

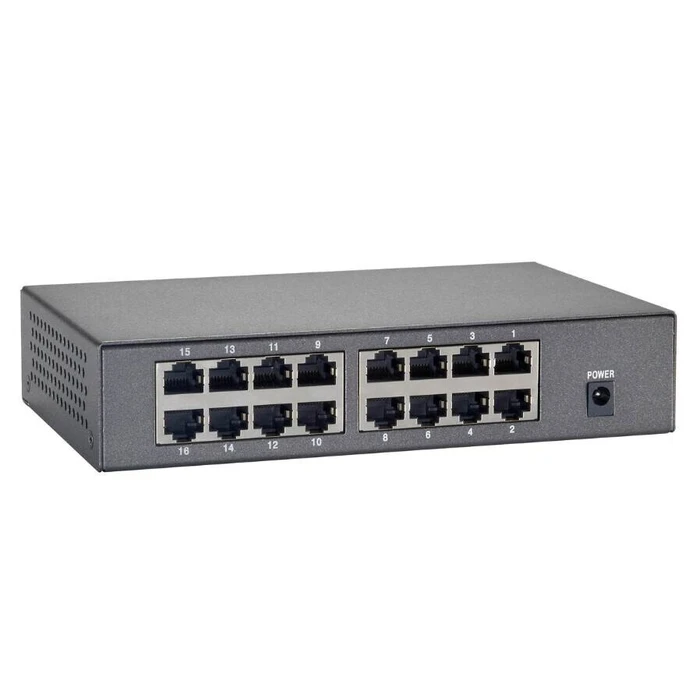

Network Switch LevelOne 16x FE FEP-1600W90 16xPoE

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  16
• Basic switching RJ-45 Ethernet ports type
  Fast Ethernet (10/100)
• Network standard
  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• 10G support
  NO
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX
• Full duplex
  YES
• Auto MDI / MDI-X
  YES
• Support data flow control
  YES
• Auto-negotiation function
  YES
• MAC address table
  4000 entries
• Routing / switching capacity
  3.2 Gbps
• Store and forward
  YES
• Packet forwarding rate (100 Mbit / s)
  148000 pps
• Packet forwarding rate (10 Mbit / s)
  14880 pps
• Country of origin
  Taiwan
• Certification
  FCC, CE, RoHS
• Product color
  Gray
• LED indicators
  Activity, PoE, performance
• On / off switch
  YES
• Wall mounting
  YES
• Plug and play
  YES
• Buffer size
  160 KB
• Width of the shipping box
  55.5 cm
• Length of the shipping box
  51 cm
• Height of the shipping box
  28 cm
• Weight shipping box
  13.5 kg
• Quantity per shipping box
  5 piece (s)
• Packaging width
  534 mm
• Packing depth
  255 mm
• Packing height
  95 mm
• Package weight
  2.5 kg
• Supplied cables
  AC
• Type of packaging
  box
• operating manual
  YES
• AC power adapter
  YES
• width
  188 mm
• depth
  118 mm
• height
  38 mm
• Weight
  2.1 kg
• Operating temperature range
  0 - 45 ° C
• Storage temperature range
  -40 - 70 ° C
• Operating humidity
  10 - 90%
• Storage humidity
  10 - 90%
• Power over Ethernet (PoE)
  YES
• Power over Ethernet (PoE) performance per connection
  30 W.
• Total power over Ethernet (PoE)
  82 W.
• DC input voltage
  56 V.
• Power consumption (in operation)
  90 W.
