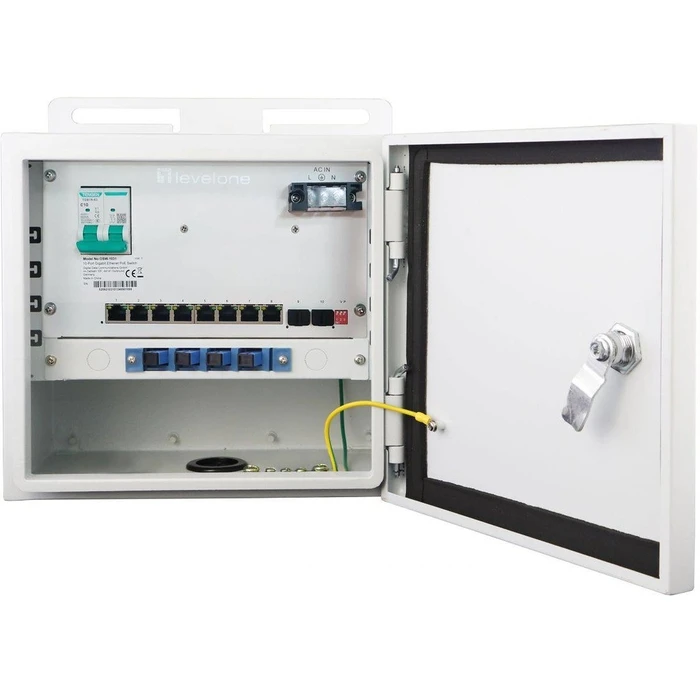

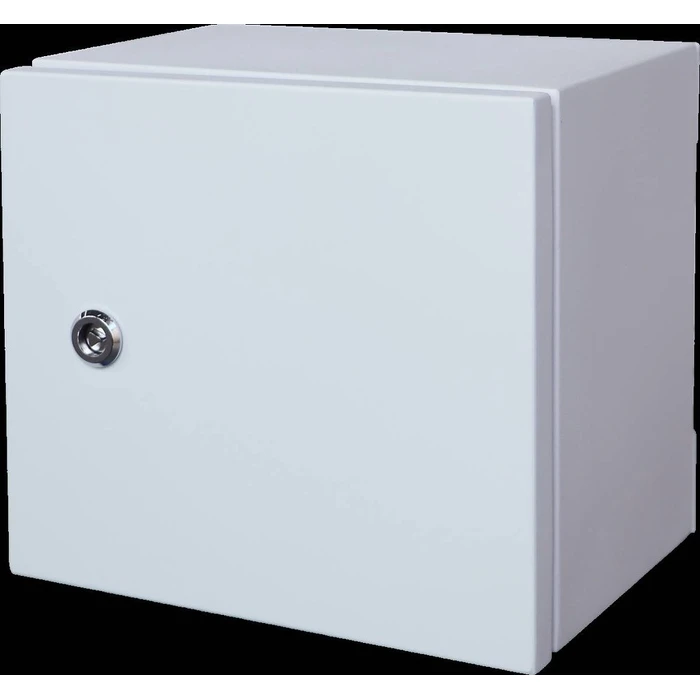

Network Switch LevelOne 10x GE OSW-1031, 8x Outputs 802.3at/af PoE

Technical Specifications

• Data rate
  Gigabit Ethernet
• PoE Power Budget
  Total 115.00
• PoE Supported
  Yes
• Concurrent ports
  Total 10.00
• Fanless
  Yes
• Manageable
  No
• Grade
  Industrial
• Approval and Compliance
  CE/FCC
• Operating humidity
  0% RH ~ 90% RH
• Operating temperature
  -20°C ~ 65°C
• Storage humidity
  0% RH ~ 90% RH
• Storage temperature
  -40°C ~ 75°C
• IP grade
  IP55
• Backplane (Gbps)
  20
• Dip switch
  V:VLAN: 1~8 ports are isolated, only can communicate with the uplink ports; restrain the networkt storm; close flow control. P:PoE Auto-Check: PoE Auto-Check function is open/ closed by dip switch.
• Indicators
  Power/ Link Act
• Jumbo frame (KB)
  9K
• MAC address table
  4K
• MTBF
  4,000,000 hours
• Packet buffer
  128KB
• Pin assignment and polarity
  1/2 (+), 3/6 (-)
• Power consumption
  130 Watt
• Power input
  VAC100-240V, 50/60Hz
• Power Output
  PoE output max. 115W
• Power supply
  Industrial Power included
• Power supply included
  Yes
