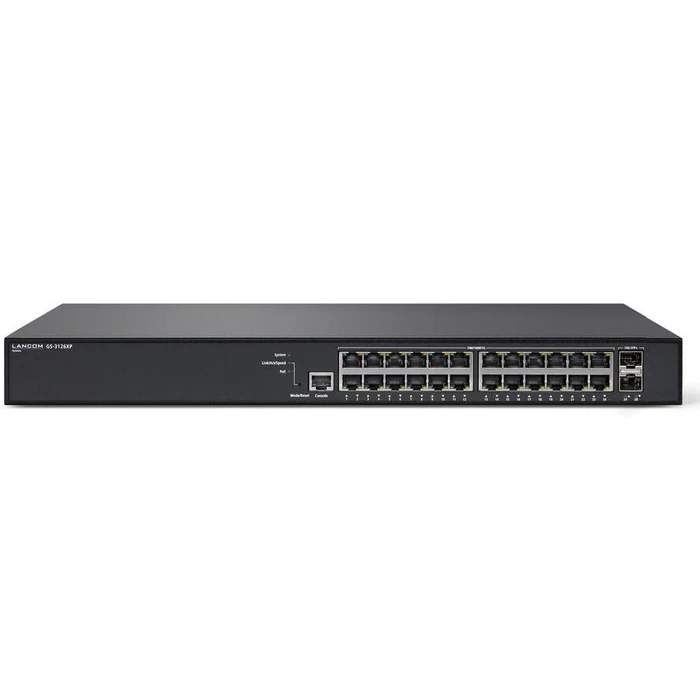

Network Switch Lancom GS-3126XP L3-Lite PoE 24x 1G RJ45+2x 10G SFP+

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  24
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• Number of fiber connectors
  2
• Optical cable connector
  SFP+
• console port
  RJ-45
• mesh standard
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az , IEEE802.3u, IEEE802.3x, IEEE802.3z
• 10G support
  yes
• port mirroring
  yes
• Broadcast Storm Control
  yes
• VLAN support
  yes
• Number of VLANs
  4096
• MAC address table
  32000 entries
• Routing/Switching Capacity
  88 Gbps
• passage
  130 Mpps
• Jumbo frames support
  yes
• jumbo frames
  10240
• DHCP functions
  DHCP servers
• IGMP snooping
  yes
• Supported security algorithms
  SNMPv3
• MAC address filtering
  yes
• loop protection
  yes
• SSH/SSL support
  yes
• Multicast support
  yes
• Rack mount
  yes
• form factor
  1U
• product color
  Black
• LED indicators
  Activity, Link, PoE, Speed, System
• number of fans
  1 fan
• switch type
  managed
• switch level
  L3
• Web-based management
  yes
• Site Settings Configuration (CLI)
  yes
• Firmware upgradeable
  yes
• Goods tariff number (HS)
  85176990
• Supplied cables
  AC, Serial
• operating manual
  yes
• rack mount kit
  yes
• Broad
  442mm
• depth
  211mm
• Height
  44mm
• weight
  2.7kg
• operating temperatur
  0 - 40 °C
• Operating relative humidity
  10 - 90%
• heat dissipation
  320 BTU/hr
• Power over Ethernet (PoE)
  yes
• Power over Ethernet (PoE) performance per port
  185W
• Power adapter included
  yes
• AC input voltage
  100 - 240V
• AC input frequency
  50/60Hz
• Power consumption (max.)
  30W
