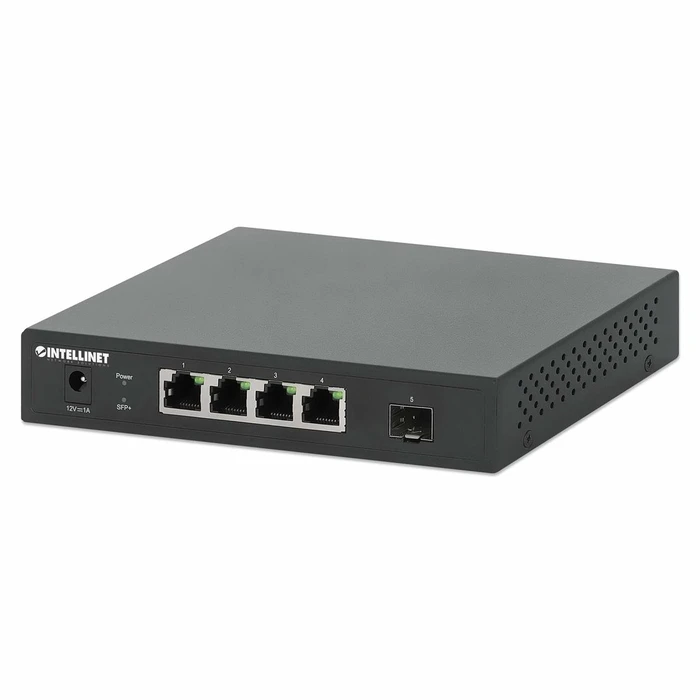

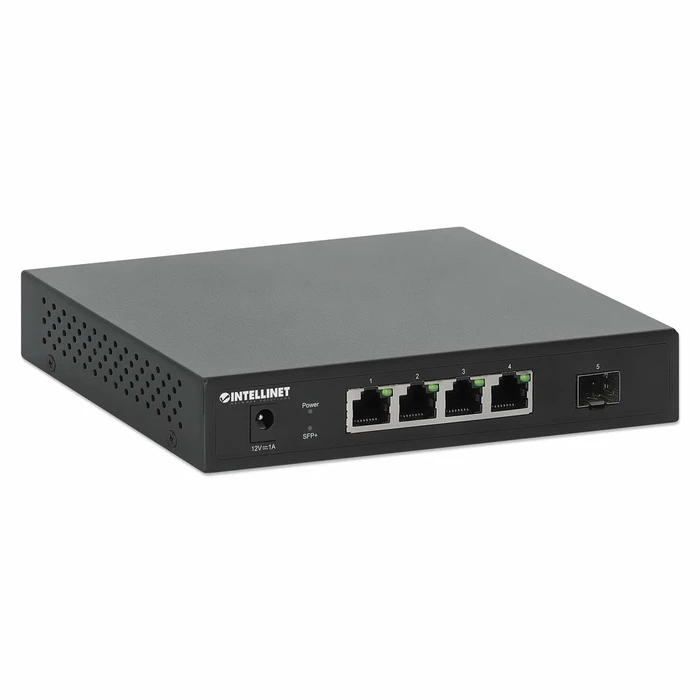

Network Switch Intellinet 5-Port 4x 2,5G Ethernet-Ports 10G SFP+

Technical Specifications

• Media support
  - 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45 - 100Base-TX Cat5/5e/6/6a UTP/STP RJ45 - 1000Base-T Cat5e/6/6a UTP/STP RJ45 - 2.5GBase-T Cat5e/Cat6/6a UTP/STP RJ45
• MAC address table
  4k
• Buffer memory
  8.1 Mbits
• Forwarding rate
  29.76 Mpps
• Backplane speed / switch fabric
  40 Gbps
• Switch architecture
  store and forward
• Certifications
  FCC, CE, RoHS, UKCA
• Input
  100.0 - 240.0 VAC, 50 - 60 Hz, 12.0 W
• Output
  DC, 12.0 V, 1.0 A
• Dimensions (L x W x H)
  102 x 162 x 28 mm (4.02 x 6.38 x 1.1 in.)
• Net weight
  400 g (0.8 lbs.)
• Gross weight
  600 g (1.32 lbs.)
• Operating temperature
  0 - 40°C (32 - 104°F)
• Storage temperature
  -40 - 70°C (-4 - 194°F)
• Operating humidity
  10 - 90% RH, non-condensing
• Storage humidity
  5 - 90% RH, non-condensing
