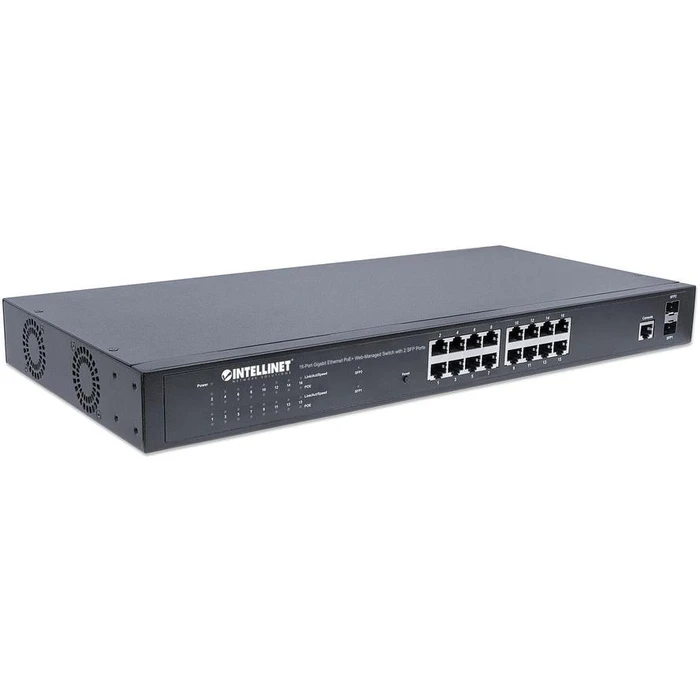

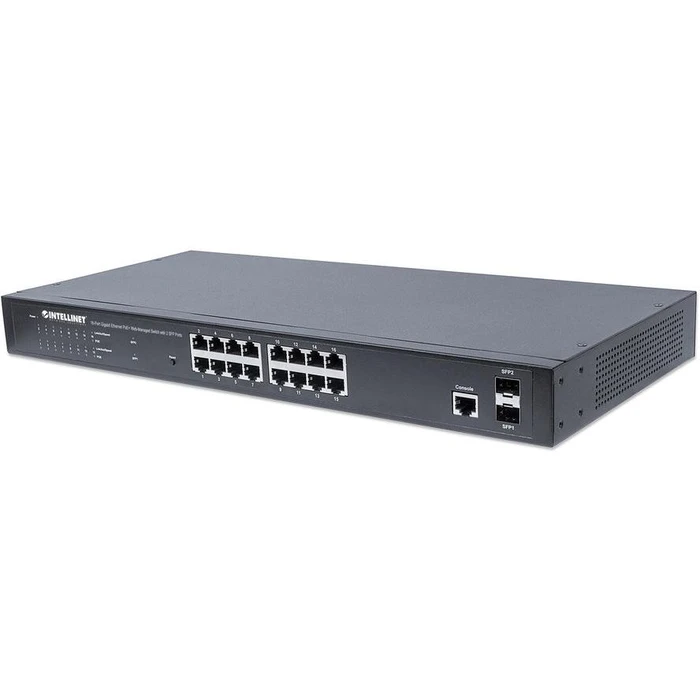

Network Switch Intellinet 16x GE Web-Managed 2 SFP-Ports 16x PoE+

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  16
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Number of Gigabit Ethernet (copper) connections
  16
• Number of installed SFP modules
  2
• VLAN support
  yes
• Virtual LAN functions
  Tagged VLAN, port-based VLAN
• Number of VLANs
  4096
• Network standard
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
• 10G support
  no
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• supported cable types
  Cat3, Cat4, Cat5, Cat5e
• Port mirroring
  yes
• Full duplex
  yes
• Link aggregation
  yes
• Auto scanning
  yes
• Spanning Tree Protocol
  no
• Auto MDI / MDI-X
  yes
• Support data flow control
  yes
• Broadcast storm control
  yes
• Rate restriction
  yes
• Data packet buffer memory
  0.512 MB
• MAC address table
  8000 entries
• Routing / switching capacity
  36 Gbit / s
• Store-and-forward
  yes
• Jumbo frames support
  yes
• Jumbo frames
  9000
• Packet forwarding rate (100 Mbit / s)
  148800 pps
• Packet forwarding rate (1 Gbit / s)
  1488000 pps
• Packet forwarding rate (10 Mbit / s)
  14880 pps
• Access Control List
  yes
• IGMP snooping
  yes
• Supported security algorithms
  802.1x RADIUS, HTTPS, SSH, SSH-2
• Authentication
  Port based authentication
• Multicast support
  yes
• Management logs
  SNMP, Telnet, SSH
• Certification
  FCC Class A, CE
• Rack installation
  yes
• Form factor
  1U
• Product color
  black
• Housing material
  metal
• LED indicators
  yes
• Number of fans
  2 fans
• Switch type
  Managed
• Switch level
  L2 +
• Quality of Service (QoS) support
  yes
• Web based management
  yes
• Supplied cables
  AC
• operating manual
  yes
• Rack mounting kit
  yes
• width
  440 mm
• depth
  208 mm
• height
  44 mm
• Weight
  3.86 kg
• Operating temperature range
  0 - 40 ° C
• Storage temperature range
  -20 - 90 ° C
• Humidity in operation
  10 - 90%
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet plus (PoE +) connections
  16
• Power over Ethernet (PoE) power per connection
  30 W
• Total power over Ethernet (PoE)
  220 W
• Energy protection properties
  Overvoltage, overload protection, short circuit
• AC input voltage
  100-240V
• AC input frequency
  50-60 Hz
• Power consumption (max.)
  260 W
