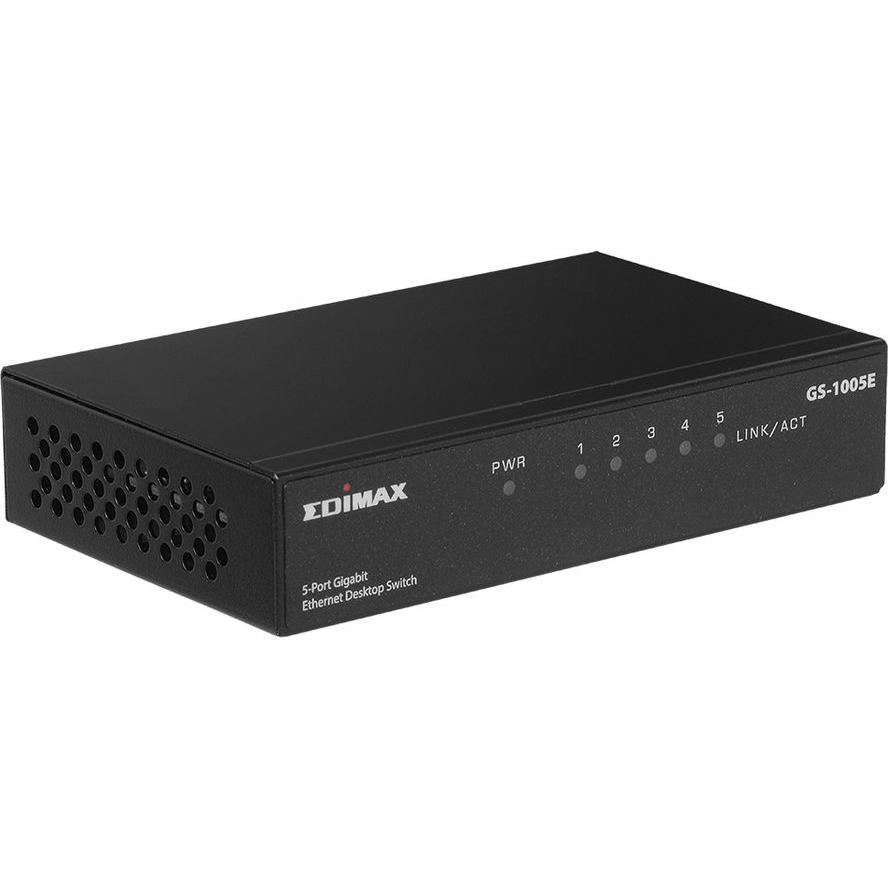

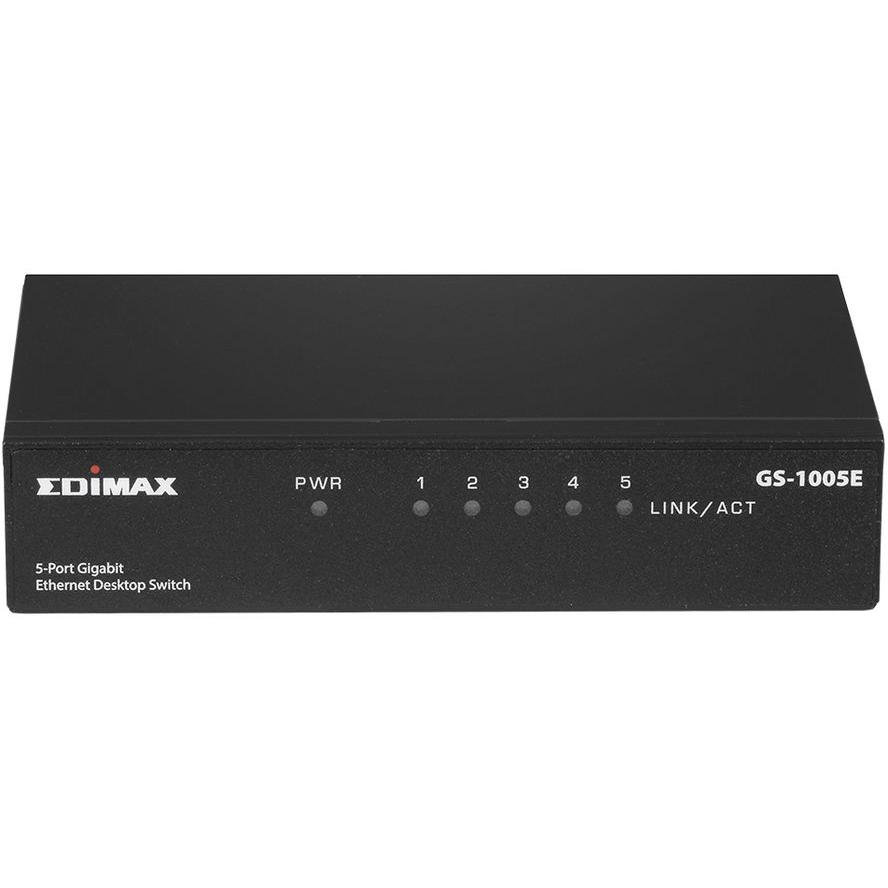

Network Switch EDIMAX 5x FE GS-1005E

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  5
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Network standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
• 10G support
  Data packet buffer memory
• 0.128 MB
  MAC address table
• 2000 entries
  Routing / switching capacity
• 10 Gbit / s
  no
• Transfer rate
  7.44 Mpps
• Jumbo frames support
  yes
• Jumbo frames
  9000
• Transmission method
  Store and forward
• Packet forwarding rate (1 Gbit / s)
  1448000 pps
• Packet forwarding rate (100 Mbit / s)
  148800 pps
• Packet forwarding rate (10 Mbit / s)
  14880 pps
• Certification
  CE, FCC
• Rack installation
  no
• Stackable
  no
• Product color
  black
• Housing material
  metal
• LED indicators
  Activity, link, performance
• Wall mounting
  yes
• Switch type
  Unmanaged
• Fanless
  yes
• width
  121 mm
• depth
  75 mm
• height
  26 mm
• Weight
  229 g
• Operating temperature range
  0 - 40 ° C
• Storage temperature range
  -40 - 70 ° C
• Humidity in operation
  10 - 90%
• Storage humidity
  5 - 90%
• Power over Ethernet (PoE)
  no
• Power supply included
  yes
• DC input voltage
  5 V
• Input current
  1 A
• Power consumption (max.)
  2.4 W.
