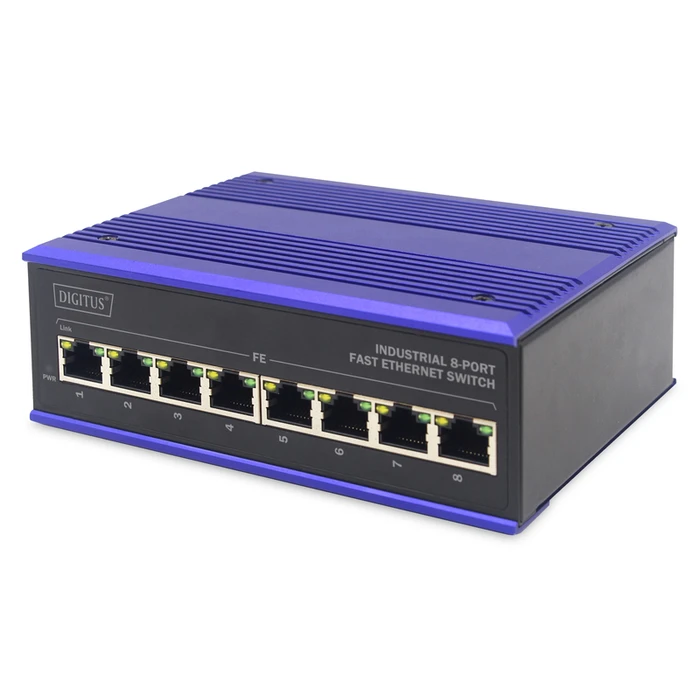

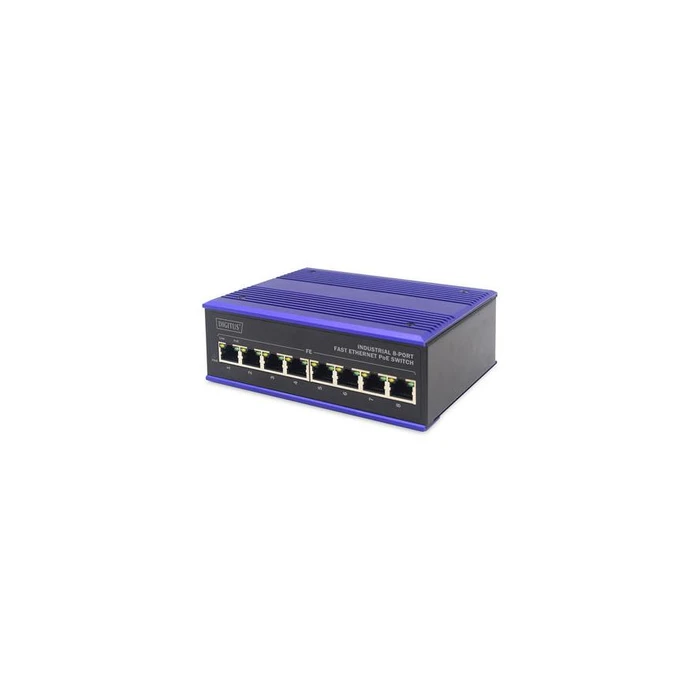

Network Switch DIGITUS Industrial 8-Port Fast Ethernet PoE

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic switching RJ-45 Ethernet ports type
  Fast Ethernet (10/100)
• Fast Ethernet (copper) connections
  8th
• Network standard
  IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
• 10G support
  no
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX, 1000BASE-T
• Full duplex
  yes
• Auto MDI / MDI-X
  yes
• Ethernet LAN data transfer rates
  10.100 Mbit / s
• Support data flow control
  yes
• MAC address table
  2048 entries
• Routing / switching capacity
  1.6 Gbit / s
• Rack installation
  no
• Product color
  Black, blue
• Housing material
  metal
• LED indicators
  yes
• DIN rail mounting
  yes
• Wall mounting
  yes
• Switch type
  Unmanaged
• Switch level
  L2
• Packaging width
  213 mm
• Packaging depth
  154 mm
• Packing height
  67 mm
• Package weight
  830 g
• Quick start overview
  yes
• width
  143 mm
• depth
  101 mm
• height
  44 mm
• Weight
  640 g
• Operating temperature range
  -40 - 85 ° C
• Power over Ethernet (PoE)
  yes
• Power over Ethernet (PoE) type supported
  PoE +
• Number of Power over Ethernet plus (PoE +) connections
  8th
• Energy protection properties
  Overvoltage, short circuit
• Support for redundant power supply
  yes
• DC input voltage
  48-57 V.
