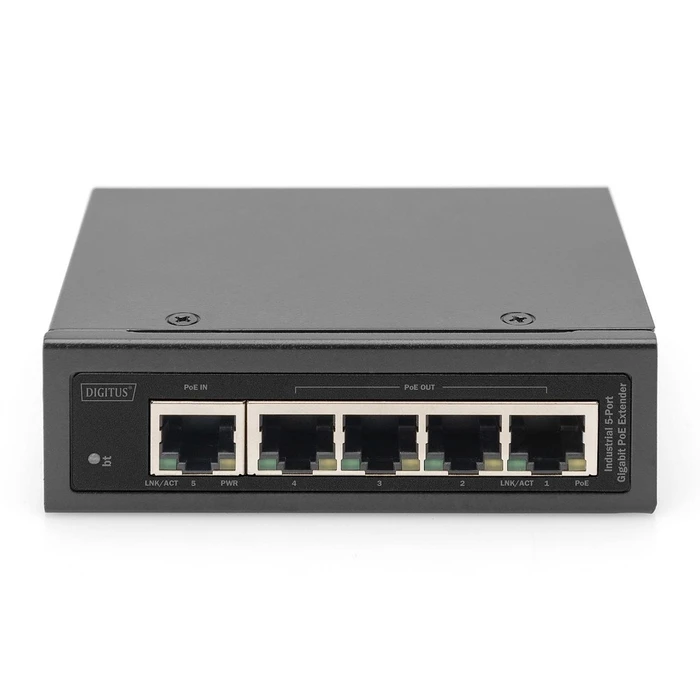

Network Switch Digitus Extender PoE - 5-Port Gigabit Industrial

Technical Specifications

• Cabling technology
  10/100/1000Base-T(X)
• Network standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
• Host interface
  RJ-45
• Number of Ethernet LAN ports (RJ-45)
  5
• Product color
  Gray
• Case material
  metal
• Fastening type
  Wall
• LED indicators
  yes
• Quantity per pack
  1 piece(s)
• Country of origin
  Taiwan
• Power consumption (max.)
  90W
• Power over Ethernet (PoE)
  no
• Total power Power over Ethernet (PoE)
  60W
• operating temperatur
  -40 - 75°C
• Storage temperature range
  5 - 95°C
• Operating temperature (transmitter)
  -40 - 85°C
• Width
  32mm
• depth
  103.5mm
• Height
  81.5mm
• Type
  Network transmitter & receiver
• Maximum possible transmission distance
  100 m
• Data transfer rate
  10000 Mbps
• supported cable types
  Cat5e
• Ethernet LAN data transfer rates
  10,100,1000 Mbps
• Overload protection
  yes
• Support data flow control
  yes
• International protection class (IP code)
  IP30
• Jumbo frames support
  yes
• MAC address table
  2000 entries
• Duplex system
  Full, half
• MDI/DMI-X automatic switching
  yes
• operating manual
  yes
• Wall mounting kit
  yes
• VK customs tariff code
  85176200
• Packaging width
  211mm
• Packaging depth
  162mm
• Packaging height
  64mm
• Packaging volume
  2187.65 cm³
• Package weight
  54.375g
