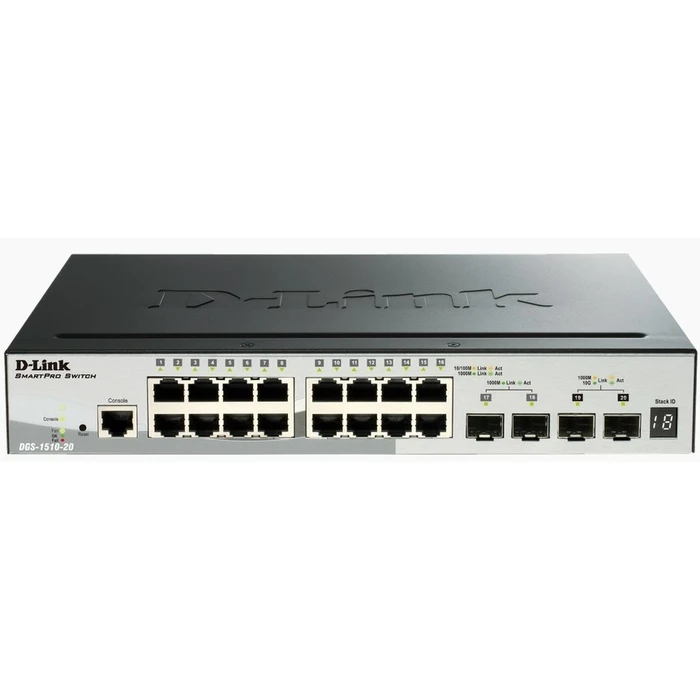

Network Switch D-Link DGS-1510-20 Managed L3 (10/100/1000) Black

Technical Specifications

• Pallet height (air)
  2.03 m
• Shipping (inner) case length
  56.3 cm
• Master (outer) cases per pallet (sea)
  30 pc(s)
• Shipping (inner) case width
  36.4 cm
• Pallet gross weight (sea)
  457.7 kg
• Products per shipping (inner) case
  5 pc(s)
• Shipping (inner) case gross weight
  14.6 kg
• Master (outer) cases per pallet (air)
  30 pc(s)
• Shipping (inner) case height
  37.9 cm
• Pallet gross length
  110 cm
• Shipping (inner) case net weight
  8.04 kg
• Pallet gross weight (air)
  457.7 kg
• Products per pallet (air)
  150 pc(s)
• Pallet height (sea)
  2.03 m
• Products per pallet (sea)
  150 pc(s)
• Pallet gross width
  120 cm
• Stackable
  Y
• Safety
  cUL, CB
• Rack mounting
  Y
• Product colour
  Black
• Number of fans
  1 fan(s)
• LED indicators
  Activity
• AC input frequency
  50 - 60 Hz
• Power consumption (typical)
  20.3 W
• AC input voltage
  100 - 240 V
• Static port security
  Y
• IGMP snooping
  Y
• DHCP features
  DHCP server
• SSH/SSL support
  Y
• Access Control List (ACL)
  Y
• MAC address filtering
  Y
• Heat dissipation
  41.602 BTU/h
• Operating temperature (T-T)
  -5 - 50 °C
• Storage relative humidity (H-H)
  0 - 90%
• Operating relative humidity (H-H)
  0 - 95%
• Storage temperature (T-T)
  -20 - 70 °C
• Switch layer
  L3
• Switch type
  Managed
• Quality of Service (QoS) support
  Y
• Web-based management
  Y
• Height
  44 mm
• Width
  280 mm
• Weight
  1.24 kg
• Depth
  180 mm
• 10G support
  Y
• Flow control support
  Y
• Port mirroring
  Y
• Cable types supported
  Cat5
• MAC address auto-learning supported
  Y
• Head-of-line (HOL) blocking
  Y
• Auto-negotiation
  Y
• Broadcast storm control
  Y
• Link aggregation
  Y
• Full duplex
  Y
• Networking standards
  IEEE 802.1D
• Auto MDI/MDI-X
  Y
• VLAN support
  Y
• Physical stacking (units)
  6
• Virtual stacking (units)
  32
• Noise level
  43.8 dB
• Package weight
  2.71 kg
• Package height
  104 mm
• Package depth
  346 mm
• Package width
  346 mm
• Management protocols
  Telnet, SNMP, SNTP, ICMPv6, IPv4/v6, RMON v1, LLDP, LLDP-MED, NTP, Telnet
• Power connector
  DC-in jack
• SFP module slots quantity
  2
• Basic switching RJ-45 Ethernet ports quantity
  16
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• SFP+ module slots quantity
  2
• Harmonized System (HS) code
  85176990
• MAC address table
  16000 entries
• Number of static routes
  512
• Jumbo frames support
  Y
• Forwarding rate
  56.54 Mpps
• Packet buffer memory
  1.5 MB
• Store-and-forward
  Y
• Switching capacity
  76 Gbit/s
• Power over Ethernet (PoE)
  N
• Multicast support
  Y
