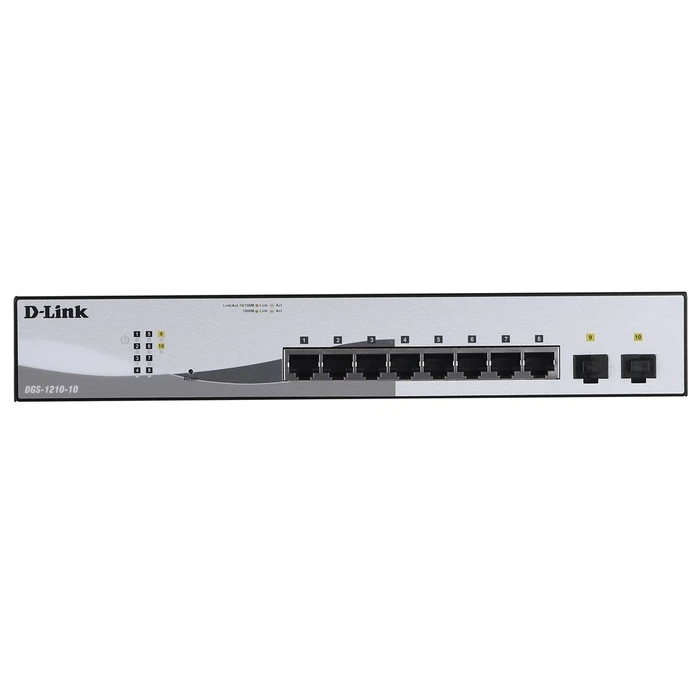

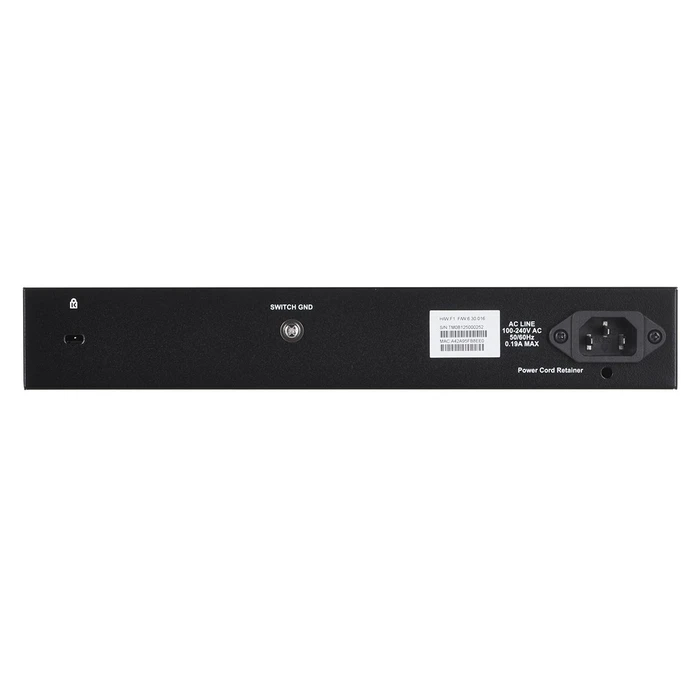

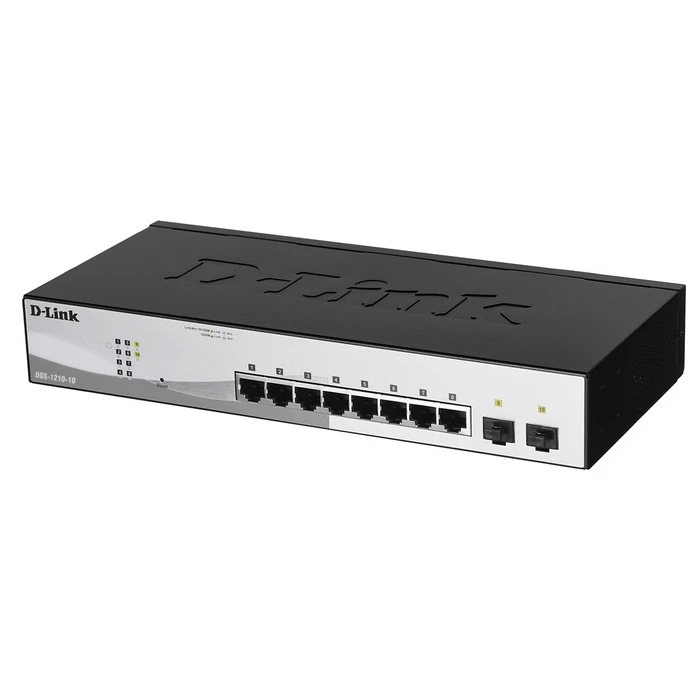

Network Switch D-Link DGS-1210-10/E 10-PORT 2 SFP

Technical Specifications

• Stackable
  Y
• Product colour
  Grey
• Form factor
  1U
• Rack mounting
  Y
• Power consumption (max)
  6.33 W
• AC input frequency
  50/60 Hz
• AC input voltage
  100 - 240 V
• Access Control List (ACL)
  Y
• IGMP snooping
  Y
• Loop protection
  Y
• MAC address filtering
  Y
• Heat dissipation
  373.96 BTU/h
• Storage temperature (T-T)
  -10 - 70 °C
• Operating temperature (T-T)
  0 - 40 °C
• Storage relative humidity (H-H)
  5 - 95%
• Operating relative humidity (H-H)
  10 - 95%
• Switch type
  Managed
• ARP inspection
  Y
• Switch layer
  L2
• Configuring Location Settings (CLI)
  Y
• MIB support
  Y
• Quality of Service (QoS) support
  Y
• Web-based management
  Y
• Height
  44 mm
• Weight
  980 g
• Width
  280 mm
• Depth
  126 mm
• Spanning tree protocol
  Y
• Link aggregation
  Y
• Head-of-line (HOL) blocking
  Y
• 10G support
  N
• Auto-negotiation
  Y
• Flow control support
  Y
• Port mirroring
  Y
• Networking standards
  IEEE 802.3u
• Auto MDI/MDI-X
  Y
• Full duplex
  Y
• Mean time between failures (MTBF)
  205249 h
• Package weight
  2.08 kg
• Package height
  70 mm
• Package width
  286 mm
• Package depth
  325 mm
• SFP module slots quantity
  2
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity
  8
• Power connector
  DC-in jack
• Harmonized System (HS) code
  85176990
• Jumbo frames support
  Y
• MAC address table
  8000 entries
• Jumbo frames
  9216
• Forwarding rate
  14.88 Mpps
• Store-and-forward
  Y
• Packet buffer memory
  0.512 MB
• Switching capacity
  20 Gbit/s
• Power over Ethernet (PoE)
  N
• Multicast support
  Y
