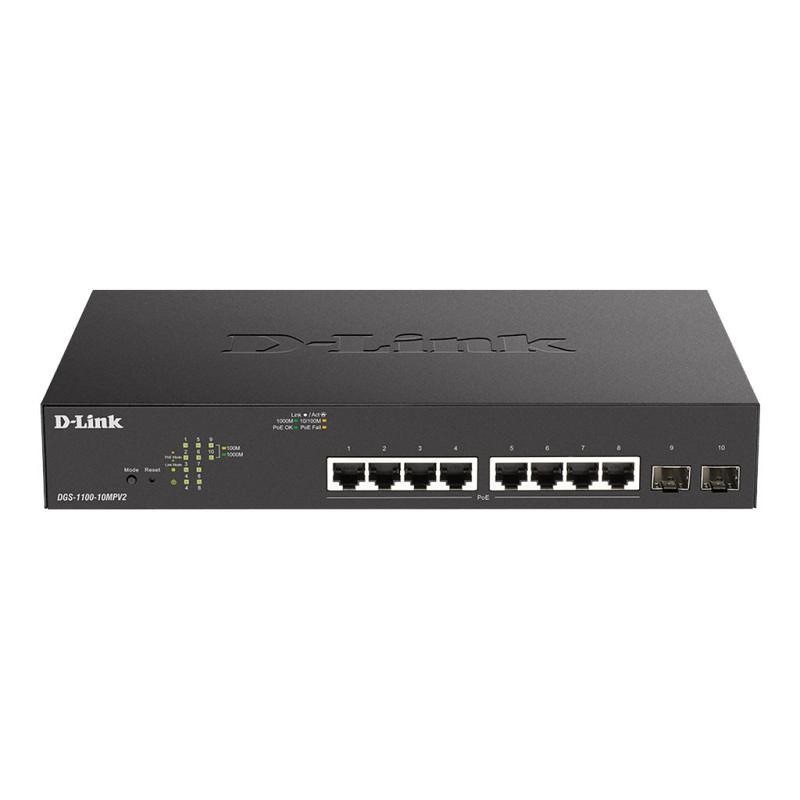

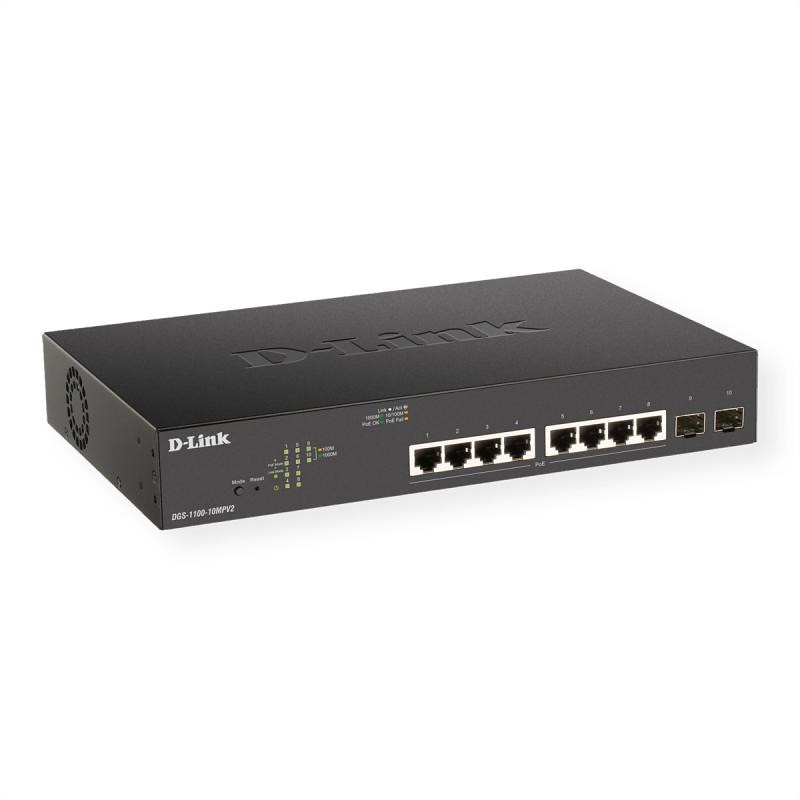

Network Switch D-Link DGS-1100-10MPV2 E

Technical Specifications

• Device Type
  Switch - 10 ports - smart
• Enclosure Type
  Desktop, rack-mountable 1U
• Subtype
  Gigabit Ethernet
• Ports
  8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
• Power Over Ethernet (PoE)
  PoE
• PoE Budget
  130 W
• Performance
  Switching capacity: 20 Gbps ¦ Forwarding performance: 14.88 Mpps
• Capacity
  VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128
• MAC Address Table Size
  8K entries
• Jumbo Frame Support
  10KB
• Routing Protocol
  IGMPv2, IGMP, IGMPv3
• Remote Management Protocol
  HTTP, ICMP
• Encryption Algorithm
  SSL
• Features
  Flow control, BOOTP support, IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, LLDP support, DHCP client, Voice VLAN, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, Unknown Storm Control, 4.1Mbit packet buffer, Asymmetric VLAN, Smart Fan
• Compliant Standards
  IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az
• Flash Memory
  16 MB
• Status Indicators
  Power, status, link/activity/speed
• Interfaces
  8 x 1000Base-T RJ-45 PoE ¦ 2 x 1000Base-X SFP
• Power Device
  Internal power supply
• Voltage Required
  AC 120/230 V (50/60 Hz)
• Power Consumption Operational
  11.7 Watt
• Power Consumption Stand by
  5.6 Watt
• Included Accessories
  11" rack mounting kit
• Rack Mounting Kit
  Included
• MTBF
  406,887 hours
• Compliant Standards
  FCC Class A certified, UL, C-Tick, BSMI, cUL, CB, LVD, VCCI Class A, RoHS 10
• Localisation
  Europe
• Software Included
  D-Link Network Assistant
• Width
  28 cm
• Depth
  18 cm
• Height
  4.4 cm
• Weight
  1.5 kg
• Service & Support
  Limited warranty - lifetime
• Min Operating Temperature
  -10 °C
• Max Operating Temperature
  50 °C
• Humidity Range Operating
  0 - 95% (non-condensing)
• Min Storage Temperature
  -40 °C
• Max Storage Temperature
  70 °C
• Humidity Range Storage
  0 - 95% (non-condensing)
