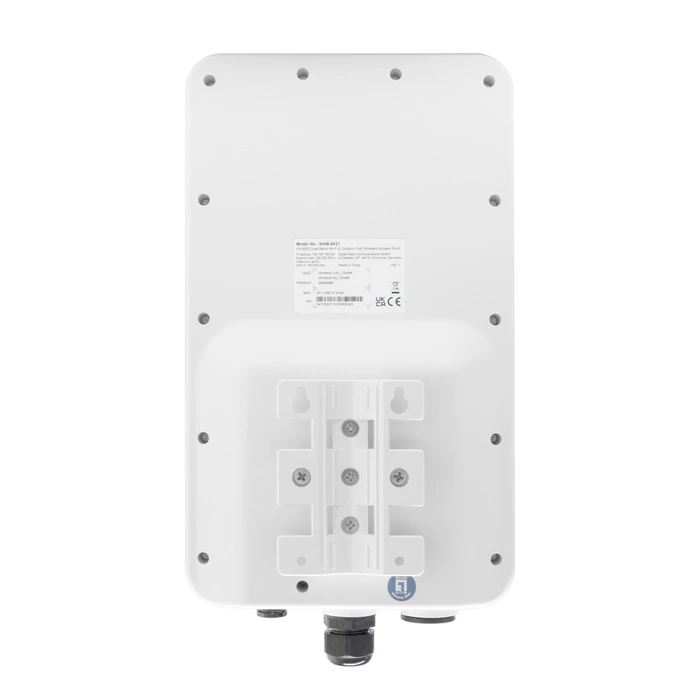

Access Point LevelOne WLAN outdoor PoE DualBand AX3000 WiFi6

Technical Specifications

• Supported security algorithms
  WPA2, WPA3
• Number of SSID support
  8
• Number of Ethernet LAN ports (RJ-45)
  1
• WAN Port
  WLAN
• Power over Ethernet (PoE)
  yes
• Power consumption (standard operation)
  16 W
• placement
  pole
• Product color
  White
• International protection class (IP code)
  IP67
• LED indicators
  Performance, status, system
• Country of origin
  China
• Antenna type
  Intern
• Antenna direction type
  With spherical directional characteristics
• Flash memory
  128 MB
• Storage capacity
  512 MB
• 2,4 GHz
  yes
• 6 GHz
  no
• 5 GHz
  yes
• Maximum data transfer rate
  3000 Mbit/s
• Maximum data transfer rate (2.4 GHz)
  574 Mbit/s
• Maximum data transfer rate (5 GHz)
  2401 Mbit/s
• Ethernet LAN data transfer rates
  10,100,1000 Mbit/s
• Network standard
  IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
• Cabling technology
  10/100/1000Base-T(X)
• Number of channels
  165 channels
• DESPITE
  yes
• MIMO Typ
  Multi User MIMO
• Spread-Spectrum Method
  OFDMA
• Maximum outside distance
  100 m
• Receiver sensitivity
  2.4 GHz Radio : l 802.11b / 1Mbps / RX Sensitivity : -90 (dBm) l 802.11b / 11Mbps / RX Sensitivity : -85 (dBm) l 802.11g / 6Mbps / RX Sensitivity : -90 (dBm) l 802.11g / 54Mbps / RX Sensitivity : -72 (dBm) l 802.11n HT20 / MCS0 / RX Sensitivity : -87 (dBm) l 802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm) l 802.11n HT40 / MCS0 / RX Sensitivity : -85 (dBm) l 802.11n HT40 / MCS7 / RX Sensitivity : -68 (dBm) l 802.11ax HE20 / MCS0 / RX Sensitivity : -83 (dBm) l 802.11ax HE20 / MCS11 / RX Sensitivity : -60 (dBm) l 802.11ax HE40 / MCS0 / RX Sensitivity : -83 (dBm) l 802.11ax HE40 / MCS11 / RX Sensitivity : -56 (dBm) 5 GHz Radio : l 802.11a HT20 / 6Mbps/ RX Sensitivity : -92 (dBm) l 802.11a HT20 / 54Mbps/ RX Sensitivity : -72 (dBm) l 802.11n HT20 / MCS0 / RX Sensitivity : -90 (dBm) l 802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm) l 802.11n HT40 / MCS0 / RX Sensitivity : -88 (dBm) l 802.11n HT40 / MCS7 / RX Sensitivity : -68 (dBm) l 802.11ac VHT20 / MCS0 / RX Sensitivity : -88 (dBm) l 802.11ac VHT20 / MCS8 / RX Sensitivity : -70 (dBm) l 802.11ac VHT40 / MCS0 / RX Sensitivity : -88 (dBm) l 802.11ac VHT40 / MCS7 / RX Sensitivity : -68 (dBm) l 802.11ac VHT80 / MCS0 / RX Sensitivity : -85 (dBm) l 802.11ac VHT80 / MCS9 / RX Sensitivity : -58 (dBm) l 802.11ax HE20 / MCS0 / RX Sensitivity : -88 (dBm) l 802.11ax HE20 / MCS11 / RX Sensitivity : -62 (dBm) l 802.11ax HE40 / MCS0 / RX Sensitivity : -86 (dBm) l 802.11ax HE40 / MCS11 / RX Sensitivity : -58 (dBm) l 802.11ax HE80 / MCS0 / RX Sensitivity : -84 (dBm) l 802.11ax HE80 / MCS11 / RX Sensitivity : -55 (dBm) l 802.11ax HE160 / MCS0 / RX Sensitivity : -82 (dBm) l 802.11ax HE160 / MCS11 / RX Sensitivity : -51 (dBm)
• Relative humidity in operation
  10 - 90%
• operating temperatur
  -20 - 50 °C
• Storage temperature range
  -20 - 80 °C
• Humidity during storage
  5 - 95%
• Wireless standard
  IEEE 802.11a/b/g/n/ac/ax
• Number of products included
  1 piece(s)
• Montageset
  yes
• Quick start overview
  yes
• Packaging width
  380 mm
• Packaging depth
  230 mm
• Packaging height
  107 mm
• Package weight
  1,73 kg
• Packaging type
  Box
• Width
  230 mm
• depth
  107 mm
• Height
  38 mm
• Weight
  1,3 kg
• Sustainability certificates
  CE, RoHS
