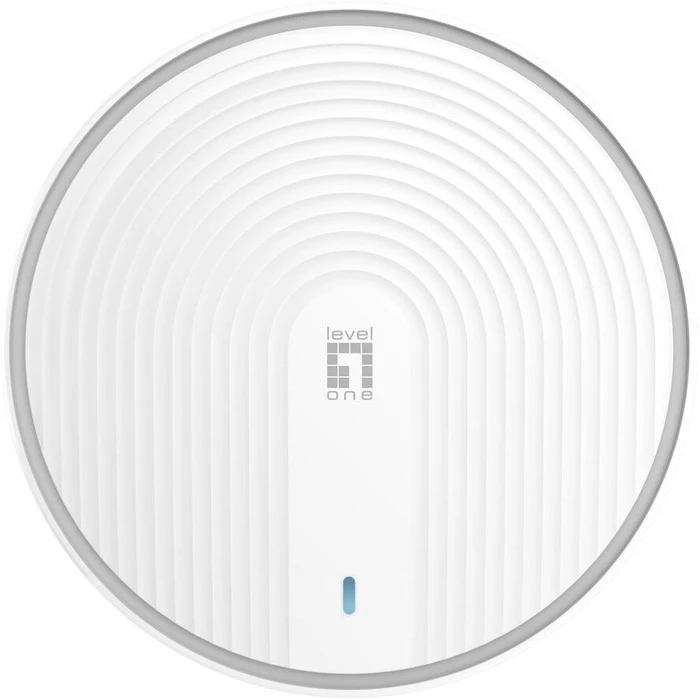

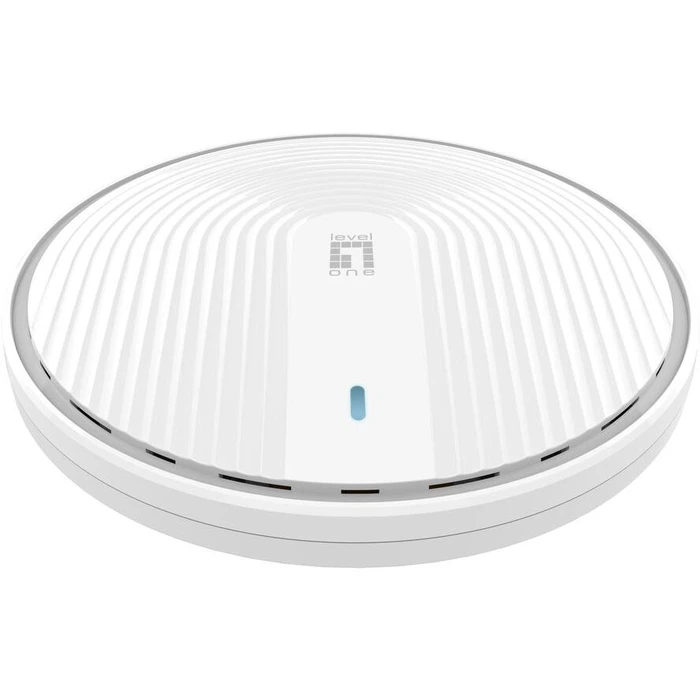

Access Point LevelOne WLAN AX1800 Wireless PoE DualBand WiFi6

Technical Specifications

• Supported security algorithms
  AES, WPA, WPA2, WPA3
• Features Service Set Identifier (SSID)
  Multiple SSIDs
• Number of SSID support
  8th
• Web-based management
  yes
• Number of Ethernet LAN ports (RJ-45)
  2
• Direct current connection (DC)
  yes
• Power over Ethernet (PoE)
  yes
• Power consumption (max.)
  14 w
• placement
  ceiling, wall
• product color
  White
• LED indicators
  status
• country of origin
  China
• antenna type
  Internal
• number of antennas
  4
• Antenna gain level (max)
  4dBi
• chipset
  Qualcomm IPQ6000
• Flash memory
  128MB
• RAM
  512MB
• 2.4GHz
  yes
• 5GHz
  yes
• 6GHz
  no
• Maximum data transfer rate
  1800Mbps
• Maximum data transfer rate (2.4 GHz)
  574 Mbps
• Maximum data transfer rate (5 GHz)
  1201 Mbps
• frequency band
  2,412 - 2,484, 5.18G - 5,825
• mesh standard
  IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
• number of channels
  165 channels
• MIMO
  yes
• MIMO type
  Multi-user MIMO
• spread spectrum method
  OFDMA
• operating modes
  gateway, repeater, AP
• pallet height net
  164.4 cm
• Net pallet length
  80 cm
• Net pallet width
  120 cm
• Number of boxes per pallet (air)
  10 piece(s)
• Operating relative humidity
  10 - 90%
• operating temperatur
  0 - 55?C
• Storage temperature range
  0 - 70 °C
• humidity during storage
  5 - 90%
• Supplied cables
  LAN (RJ-45)
• Quick Start Overview
  yes
• packaging width
  243mm
• packing depth
  235mm
• packing height
  76mm
• package weight
  750g
• Broad
  186mm
• depth
  186mm
• Height
  42.5mm
• Weight
  418.5g
• Shipping box width
  410mm
• Shipping carton length
  520mm
• Shipping carton height
  500mm
• Shipping carton weight
  16kg
• Number of products per shipping carton
  20 piece(s)
• sustainability compliance
  yes
• sustainability certificates
  CE, RoHS
