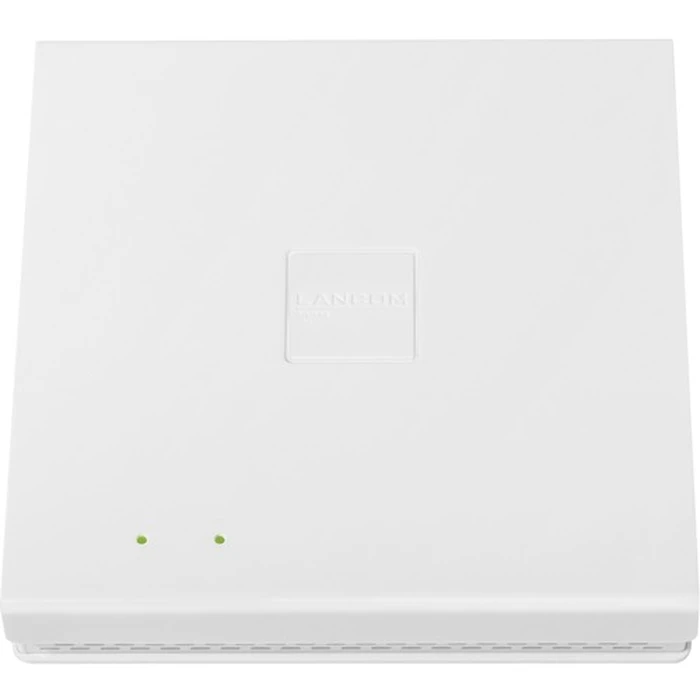

Access Point Lancom LX-6400 (WW)

Technical Specifications

• Firmware upgradeable
  Y
• AC input voltage
  12 V
• Security algorithms
  AES-CCMP, AES-GCMP, EAP-FAST, EAP-GTC, EAP-PEAP, EAP-TLS, EAP-TTLS, TKIP, WEP, WPA2, WPA3
• Operating relative humidity (H-H)
  0 - 90%
• Operating temperature (T-T)
  0 - 40 °C
• Maximum data transfer rate
  3550 Mbit/s
• Channel bandwidth
  160 MHz
• Spread spectrum method
  OFDMA
• Number of users
  511 user(s)
• Networking standards
  IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.11v, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az
• Ethernet LAN data rates
  10,100,1000,2500 Mbit/s
• VLAN support
  Y
• 2.4 GHz
  Y
• Maximal-Ratio Combining (MRC)
  Y
• Fast roaming
  Y
• Number of VLAN IDs
  4096
• Band steering
  Y
• MIMO type
  Multi User MIMO
• Maximum data transfer rate (2.4 GHz)
  1150 Mbit/s
• Maximum data transfer rate (5 GHz)
  2400 Mbit/s
• Antenna type
  Internal
• Antenna gain level (max)
  7 dBi
• Antennas quantity
  8
• Height
  42 mm
• Width
  205 mm
• Depth
  205 mm
• USB connector type
  USB Type-A
• USB 2.0 ports quantity
  1
• Ethernet LAN (RJ-45) ports
  2
• DC-in jack
  Y
• Certification
  CE : EN 62368-1:2014+AC:2015+A11:2017, EN 62479:2010, EN 301 489-1 V2.1.1, EN 301 489-17 V3.1.1, EN 300 328 V2.2.2, EN 301 893 V2.1.1 FCC Part 15B, 15C, 15E
• Cable length
  3 m
• Cable lock slot
  Y
• LED indicators
  Y
• Product colour
  White
• Housing material
  Synthetics
• Placement
  Table
• Cable lock slot type
  Kensington
