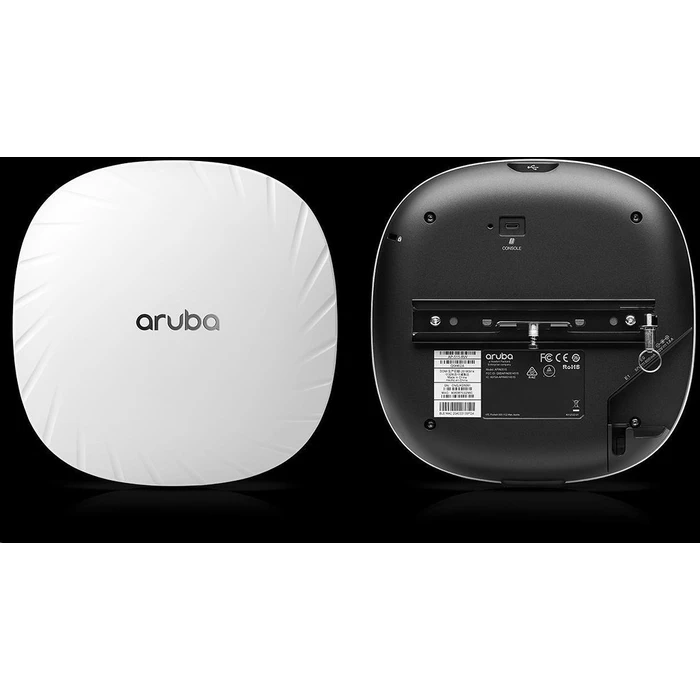

Access Point HPE ARUBA AP-535 (RW) UNIFIED STOCK

Technical Specifications

• Device Type
  Radio access point
• Ruggedized Design
  Indoor
• Width
  24 cm
• Depth
  24 cm
• Height
  5.7 cm
• Weight
  1.27 kg
• Networking
  Networking
• Form Factor
  External
• Connectivity Technology
  Wireless
• Data Transfer Rate
  2.4 Gbps
• Line Coding Format
  CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA
• Data Link Protocol
  IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
• Spread Spectrum Method
  OFDM, DSSS
• Frequency Band
  2.4 GHz, 5 GHz
• Performance
  Maximum data rate (2.4 GHz): 1.150 Mbps ?¦ Maximum data rate (5 GHz): 2.4 Gbps ?¦ Aggregate bandwidth: 3.55 Gbps
• Capacity
  Wireless clients per Wi-Fi radio: 1024 ?¦ OFDMA units: 37 ?¦ BSSIDs per radio: 16
• Status Indicators
  System, status
• Features
  Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Energy-Efficient Ethernet (EEE), Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyser, Very High Throughput (VHT) support, security slot (Kensington security lock compatible), Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT)
• Encryption Algorithm
  WPA, WPA2, WPA3
• Compliant Standards
  IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax
• Aerial
  Aerial
• Antenna
  Internal
• Antenna Qty
  4
• Directivity
  Omni-directional
• Gain Level
  5.4 dBi
• Internet of Things (IoT)
  Internet of Things (IoT)
• Internet of Things (IoT) Compatible
  Yes
• Communications Technology
  Bluetooth, Zigbee
• Expansion / Connectivity
  Expansion / Connectivity
• Interfaces
  1 x HPE Smart Rate - RJ-45 ?¦ 1 x 5GBase-T - RJ-45 ?¦ 1 x USB 2.0 - Type A ?¦ 1 x console - micro-USB
• Miscellaneous
  Miscellaneous
• Included Accessories
  Base bracket
• MTBF
  114 years
• Compliant Standards
  EN 60950, IEC 60950, UL 60950, UL 2043, FCC, EN 60601-1-2, EN 60601-1-1, EMC 2014/30/EU, LVD 2014/35/EU, ISED, RED 2014/53/EU
• Power
  Power
• Power Over Ethernet (PoE) Supported
  PoE
• Power Consumption Operational
  26.4 Watt
• Software / System Requirements
  Software / System Requirements
• OS Required
  ArubaOS, InstantOS
• Dimensions & Weight (Shipping)
  Dimensions & Weight (Shipping)
• Shipping Width
  28.5 cm
• Shipping Depth
  30 cm
• Shipping Height
  10.5 cm
• Shipping Weight
  1.93 kg
• Manufacturer Warranty
  Manufacturer Warranty
• Service & Support
  Limited warranty - lifetime
• Environmental Parameters
  Environmental Parameters
• Min Operating Temperature
  0 ?°C
• Max Operating Temperature
  50 ?°C
• Humidity Range Operating
  5 - 93% (non-condensing)
