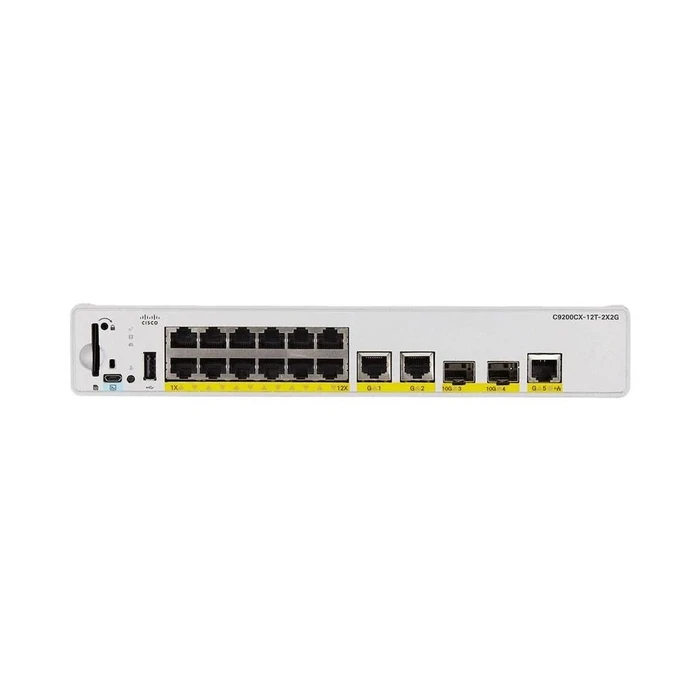

Network Switch Cisco Catalyst 9000 COMPACT 12

Technical Specifications

• Device Type
  Switch - 12 ports - L3 - Managed
• Enclosure Type
  Rack-mountable 1U
• Subtype
  Gigabit Ethernet
• Ports
  12 x 1000Base-T + 3 x 1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
• Power Over Ethernet (PoE)
  UPOE+
• Performance
  Switching capacity: 120 Gbps ?¦ Forwarding rate: 95.23 Mpps ?¦ Packet buffer size: 6 MB
• Capacity
  Virtual networks: 16 ?¦ IPv4 routes: 14000 ?¦ Direct IPv4 routes: 10000 ?¦ Indirect IPv4 routes: 4000 ?¦ IPv4 routing entries: 4000 ?¦ IPv6 routing entries: 2000 ?¦ Multicast scale: 1000 ?¦ QoS scale entries: 1000 ?¦ ACL scale entries: 1600 ?¦ Flexible NetFlow entries: 16000 ?¦ VLAN IDs: 4096 ?¦ PVST instances: 128 ?¦ STP Virtual Ports for PVST: 13000 ?¦ STP Virtual Ports for MST: 13000
• MAC Address Table Size
  32000 entries
• Jumbo Frame Support
  9198 bytes
• Routing Protocol
  OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
• Remote Management Protocol
  SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG
• Encryption Algorithm
  256-bit AES
• Features
  Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Zero-touch provisioning (ZTP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, trustworthy systems
• Compliant Standards
  IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt
• RAM
  4 GB
• Flash Memory
  8 GB
• Built-in Devices
  RFID tag
• Status Indicators
  Power
• Expansion / Connectivity
  Expansion / Connectivity
• Interfaces
  12 x 1000Base-T RJ-45 ?¦ 2 x 1000Base-T RJ-45 ?¦ 2 x 1/10GBase-X SFP+ uplink ?¦ 1 x 1000Base-T RJ-45 UPOE+ - 60 W ?¦ 1 x console (micro-USB) ?¦ 1 x USB 2.0
• Expansion Slots
  1 (total) / 1 (free) x SD Memory Card
• Power
  Power
• Power Device
  External power adapter (not included)
• Power Provided
  80 Watt
• Voltage Required
  AC 100-240 V
• Miscellaneous
  Miscellaneous
• MTBF
  755,270 hours
• Compliant Standards
  Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
• Software / System Requirements
  Software / System Requirements
• Software Included
  Cisco IOS Universal 17.8
• Dimensions & Weight
  Dimensions & Weight
• Width
  26.9 cm
• Depth
  16.5 cm
• Height
  4.4 cm
• Weight
  1.81 kg
• Manufacturer Warranty
  Manufacturer Warranty
• Service & Support
  Limited warranty - replacement - lifetime - response time: next business day ?¦ Technical support - consulting - 90 days
• Environmental Parameters
  Environmental Parameters
• Min Operating Temperature
  -5 ?°C
