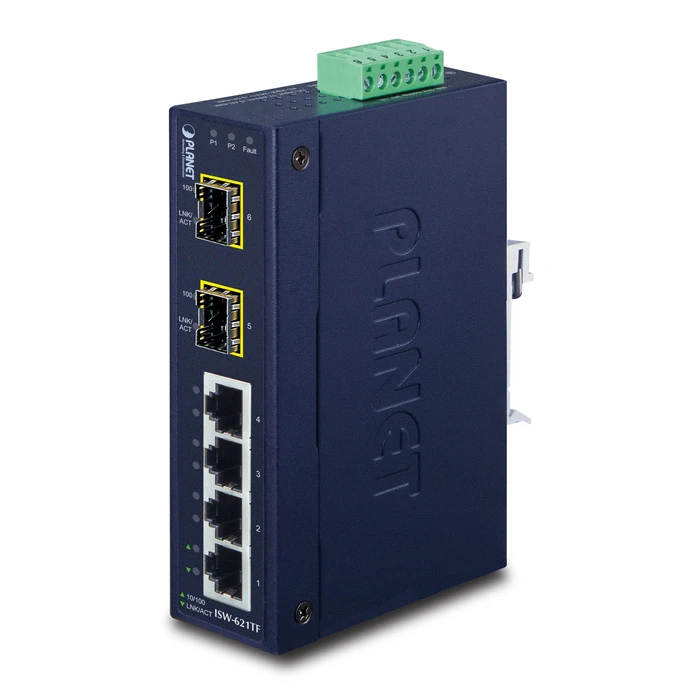

Network Switch Planet ISW-621TF Unmanaged L2 Fast Ethernet (10/100) Blue

Technical Specifications

• Wall mountable
  Y
• International Protection (IP) code
  IP30
• LED indicators
  Y
• Product colour
  Blue
• Rack mounting
  N
• Housing material
  Metal
• Power consumption (max)
  16 W
• Redundant power supply (RPS) support
  Y
• Heat dissipation
  54 BTU/h
• Operating temperature (T-T)
  -40 - 75 °C
• Storage temperature (T-T)
  -40 - 85 °C
• Operating relative humidity (H-H)
  5 - 90%
• Storage relative humidity (H-H)
  5 - 90%
• Switch layer
  L2
• Switch type
  Unmanaged
• Depth
  97 mm
• Width
  135 mm
• Weight
  442 g
• Height
  32 mm
• Flow control support
  Y
• Copper ethernet cabling technology
  100BASE-TX
• 10G support
  N
• MAC address auto-learning supported
  Y
• Full duplex
  Y
• MAC address auto-aging supported
  Y
• Auto MDI/MDI-X
  Y
• Networking standards
  IEEE 802.3u
• Basic switching RJ-45 Ethernet ports type
  Fast Ethernet (10/100)
• Basic switching RJ-45 Ethernet ports quantity
  4
• Fiber optic connector
  LC
• Installed SFP modules quantity
  2
• Fiber ports quantity
  2
• Fast Ethernet (copper) ports quantity
  4
• Throughput
  0.89 Mpps
• MAC address table
  2048 entries
• Store-and-forward
  Y
• Switching capacity
  1.2 Gbit/s
• Power over Ethernet (PoE)
  N
• Fiber ethernet cabling technology
  100BASE-FX
