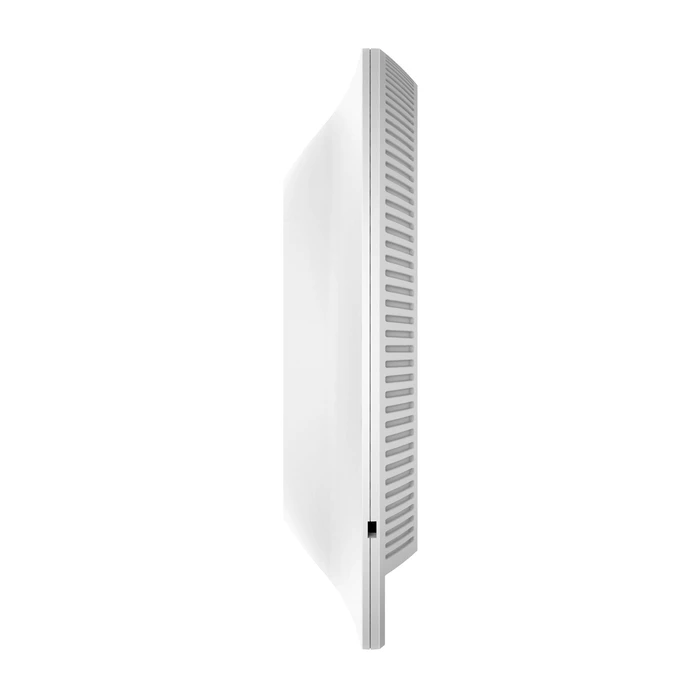

Access Point Grandstream Networks GWN7630 2330 Mbit/s White (PoE)

Technical Specifications

• Wi-Fi Multimedia (WMM)/(WME)
  Y
• Ethernet LAN data rates
  100
• MIMO
  Y
• Quality of Service (QoS) support
  Y
• Number of users
  200 user(s)
• Frequency band
  2.412 - 2.484; 5.18 - 5.825 GHz
• VLAN support
  Y
• Channel bandwidth
  80 MHz
• 2.4 GHz
  Y
• 5 GHz
  Y
• MIMO type
  Multi User MIMO
• Maximum data transfer rate
  2330 Mbit/s
• Transmitting power
  27 dBmW
• Maximum outdoor range
  175 m
• Networking standards
  IEEE 802.3at
• LED indicators
  Status
• Cable lock slot
  Y
• Product colour
  White
• Reset button
  Y
• Placement
  Ceiling, Wall
• Cable lock slot type
  Kensington
• Power over Ethernet (PoE)
  Y
• Power consumption (max)
  16.5 W
• Number of SSID supported
  15
• Security algorithms
  WPA2-PSK
• Storage temperature (T-T)
  -10 - 60 °C
• Operating temperature (T-T)
  0 - 40 °C
• Operating relative humidity (H-H)
  10 - 90%
• Width
  205.3 mm
• Weight
  590 g
• Height
  45.9 mm
• Depth
  205.3 mm
• Package weight
  930 g
• Mounting kit
  Y
• Number of products included
  1 pc(s)
• Package height
  86 mm
• Quick start guide
  Y
• Package width
  258 mm
• Package depth
  247 mm
• Supported network protocols
  IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• Ethernet LAN (RJ-45) ports
  2
• Antenna gain level (max)
  5 dBi
• Antennas quantity
  4
• Antenna type
  Internal
• Receiver sensitivity
  2.4G
• 802.11b
  -96dBm@1Mbps, -88dBm@11Mbps; 802.11g
• 5G
• 802.11a
  -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz
• Certification
  FCC, CE, RCM, IC
