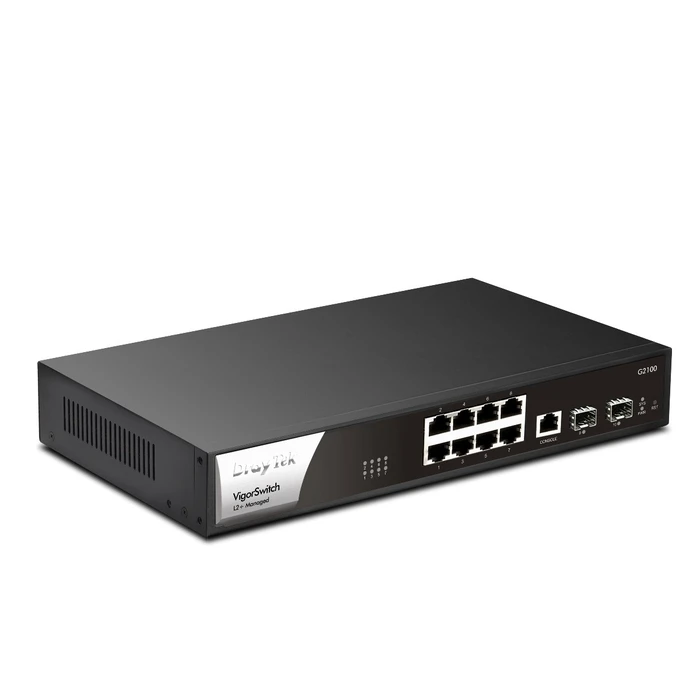

Network Switch Draytek VIGORG100 10 port

Technical Specifications

• Product colour
  Black, Silver
• Rack mounting
  Y
• Reset button
  Y
• Built-in display
  N
• Power over Ethernet (PoE)
  Y
• Power consumption (max)
  18 W
• AC input voltage
  100 - 240 V
• Total Power over Ethernet (PoE) budget
  140 W
• Power over Ethernet plus (PoE+) ports quantity
  8
• IPv6 support
  Y
• Security algorithms
  SNMPv2
• Authentication type
  RADIUS,TACACS+
• DHCP features
  DHCP client
• Remote Authentication Dial-In User Service (RADIUS)
  Y
• IGMP snooping
  Y
• DoS attack prevention
  Y
• SSH/SSL support
  Y
• ARP attack prevention
  Y
• Operating temperature (T-T)
  0 - 45 °C
• Storage temperature (T-T)
  -20 - 70 °C
• Operating relative humidity (H-H)
  10 - 90%
• Storage relative humidity (H-H)
  5 - 90%
• VLAN support
  Y
• Quality of Service (QoS) support
  Y
• Web-based management
  Y
• Syslog
  Y
• VPN Passthrough
  Y
• System event log
  Y
• Switch type
  Managed
• Command-line interface (CLI)
  Y
• User operation log
  Y
• Width
  270 mm
• Height
  44 mm
• Weight
  1.78 kg
• Depth
  181 mm
• VLAN support
  Y
• Copper ethernet cabling technology
  100BASE-TX
• 10G support
  N
• Ethernet LAN data rates
  10,100,1000 Mbit/s
• Networking standards
  IEEE 802.3at
• Rate limiting
  Y
• Multicast support
  Y
• Number of VLANs
  256
• VLAN tagging
  Y
• Link aggregation
  Y
• Audio detection
  Y
• Switching capacity
  20 Gbit/s
• Throughput
  4.1 Mpps
• MAC address table
  8000 entries
• Phone cable
  Y
• Mounting bracket(s) included
  Y
• Ethernet cable
  Y
• Jumbo frames support
  Y
• Management protocols
  SNMP
• VoIP protocols
  IPv4, IPv6
• Spanning tree protocol
  Y
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Console port
  RJ-45
• Gigabit Ethernet (copper) ports quantity
  8
• SFP/SFP+ slots quantity
  2
• Certification
  FCC Part 15 Class A, CE
