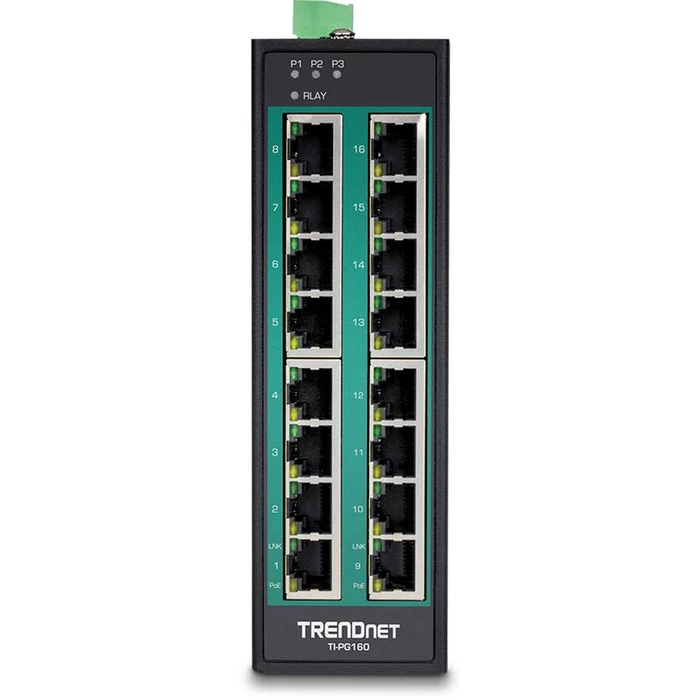

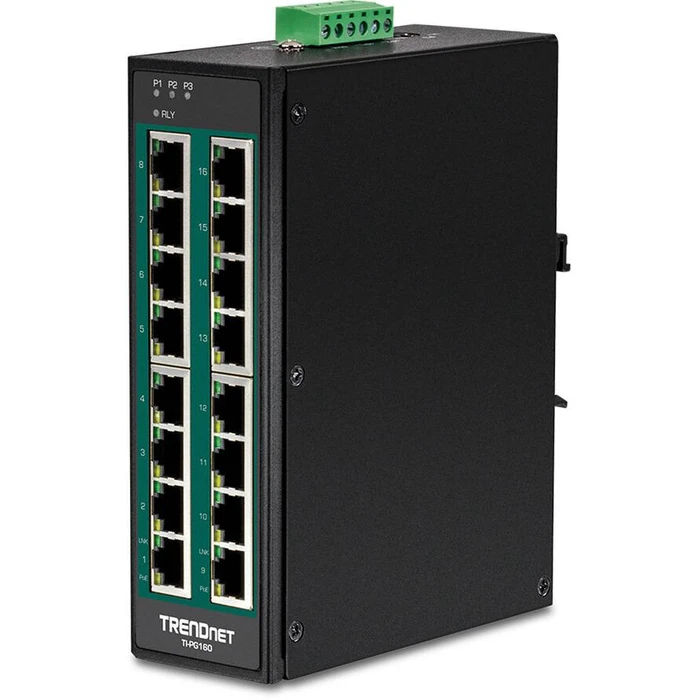

Network Switch Trendnet 16-Port Industrial Gigabit PoE+ DIN-Rail

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  16
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• mesh standard
  IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
• 10G support
  no
• full duplex
  yes
• MAC address table
  8192 entries
• Routing/Switching Capacity
  32 Gbps
• transfer rate
  23.8 Mpps
• Jumbo frames support
  yes
• jumbo frames
  9216
• product color
  Black
• housing material
  metal
• LED indicators
  yes
• International degree of protection (IP code)
  IP30
• DIN rail mounting
  yes
• wall mounting
  yes
• certification
  CE, FCC, UL
• switch type
  unmanaged
• Mean Time Between Failures (MTBF)
  699103 h
• Quick Start Overview
  yes
• Broad
  155mm
• depth
  120mm
• Height
  48mm
• weight
  500g
• operating temperatur
  -40 - 75℃
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet plus (PoE+) ports
  16
• Total power Power over Ethernet (PoE)
  240W
• Redundant power supply support
  yes
• AC input voltage
  100 - 240V
• AC input frequency
  50/60Hz
• DC input voltage
  48 - 56V
• Power consumption (max.)
  5.76W
