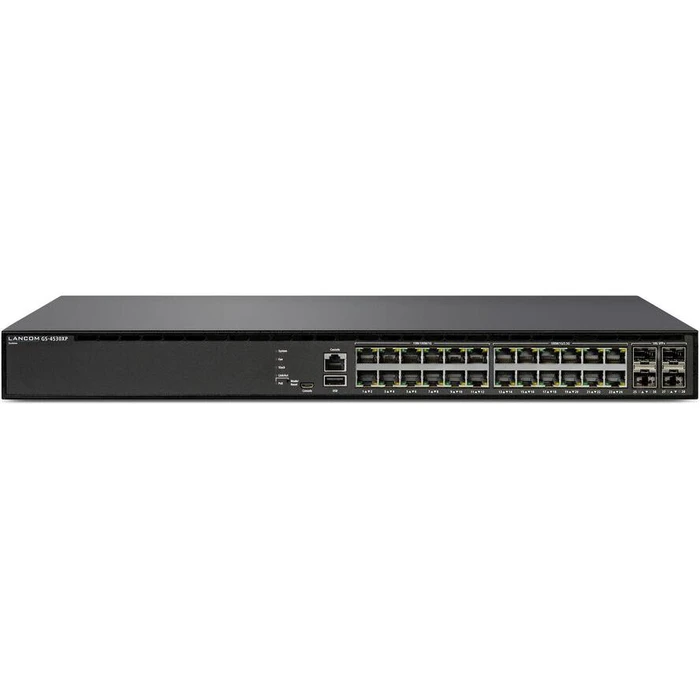

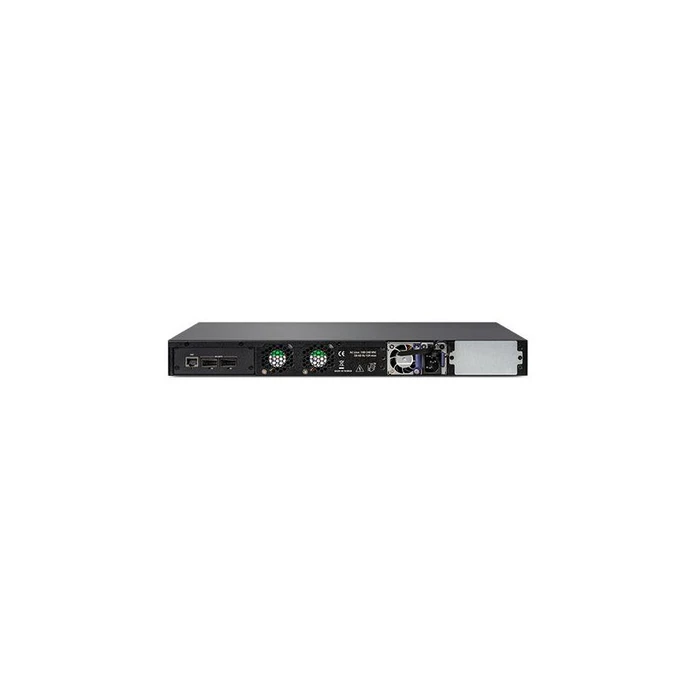

Network Switch Lancom GS-4530XP

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  30
• Basic Switching RJ-45 Ethernet Ports Type
  2.5G Ethernet (100/1000/2500)
• Number of Gigabit Ethernet (copper) ports
  12
• Number of 2.5G Ethernet (copper) ports
  12
• Number of installed SFP modules
  4
• Number of installed QSFP+ modules
  2
• console port
  RJ-45/Micro USB
• Number of USB 2.0 ports
  1
• mesh standard
  IEEE 802.1D,IEEE 802.1Q,IEEE 802.1Qav,IEEE 802.1Qbb,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab.802.3ab ,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3ak,IEEE 802.3at,IEEE 802.3az,IEEE 802.3bj,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• 10G support
  no
• port mirroring
  yes
• Policy-Based Routing
  yes
• Support data flow control
  yes
• Broadcast Storm Control
  yes
• link aggregation
  yes
• VLAN support
  yes
• MAC address table
  32000 entries
• throughput
  324 Gbps
• Store and Forward
  yes
• Static route
  yes
• Jumbo frames support
  yes
• Data packet buffer memory
  4MB
• DHCP functions
  DHCP client,DHCP relay,DHCP server,DHCP snooping
• access control list
  yes
• IGMP proxy
  yes
• authentication type
  RADIUS,TACACS+
• SSH/SSL support
  yes
• Multicast support
  yes
• Rack mount
  yes
• Stackable
  yes
• form factor
  1U
• product color
  Black
• housing material
  metal
• number of fans
  3 fans
• ventilation system
  Airflow from front to back
• switch type
  managed
• switch level
  L3
• Quality of Service (QoS) support
  yes
• cloud managed
  yes
• ARP inspection
  yes
• noise level
  60dB
• Firmware upgradeable
  yes
• Supplied cables
  AC, Micro USB, Serial
• rack mount kit
  yes
• operating manual
  yes
• weight
  5.5kg
• operating temperatur
  0 - 40 °C
• Storage temperature range
  0 - 50 °C
• Operating relative humidity
  10 - 90%
• heat dissipation
  273 BTU/hr
• Power over Ethernet (PoE)
  yes
• Total power Power over Ethernet (PoE)
  800W
• energy source
  AC
• Power adapter included
  yes
• AC input voltage
  100 - 240V
• AC input frequency
  50/60Hz
• Power consumption (max.)
  80W
