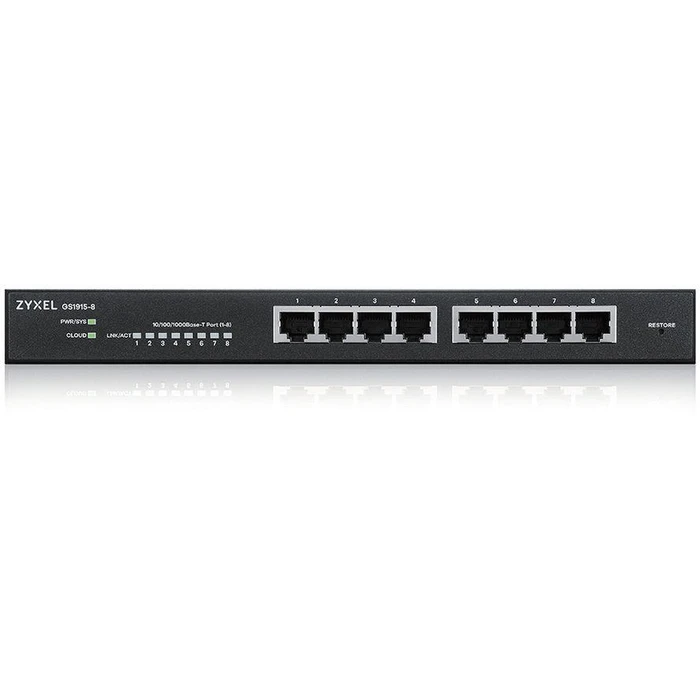

Network Switch Zyxel 8-Port GbE Smart, NebulaFlex, GS1915-8

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• Number of Gigabit Ethernet (copper) ports
  8th
• console port
  RJ-45
• power plug
  AC input jack
• mesh standard
  IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
• 10G support
  no
• Copper Ethernet cabling technology
  10BASE-T,100BASE-TX,1000BASE-T
• full duplex
  yes
• Auto MDI/MDI-X
  yes
• Rate Limit
  yes
• Broadcast Storm Control
  yes
• Support data flow control
  yes
• VLAN support
  yes
• MAC address table
  8000 entries
• Routing/Switching Capacity
  16 Gbps
• passage
  11.9 Mpps
• Store and Forward
  yes
• number of queues
  8th
• Jumbo frames support
  yes
• jumbo frames
  9000
• Data packet buffer memory
  525MB
• DHCP functions
  DHCP client
• IGMP snooping
  yes
• MAC address filtering
  yes
• SSH/SSL support
  yes
• Supported security algorithms
  802.1xRADIUS
• authentication
  Auto VLAN, MAC based authentication
• Multicast support
  yes
• management logs
  SNMP v1,v2,v3, RMON (1,2,3,9)
• product color
  black
• LED indicators
  yes
• Electromagnetic compatibility
  LVD EN60950-1, BSMI CNS14336-1
• certification
  CE, FCC, C-Tick, Class A, Class B, BSMI CNS13438
• switch type
  managed
• switch level
  L2
• Quality of Service (QoS) support
  yes
• Web-based management
  yes
• MIB support
  RFC 1213 MIB II, RFC 2819, RFC 1215, RFC 1493
• Mean Time Between Failures (MTBF)
  1144461 h
• Supplied cables
  AC
• Quick Start Overview
  yes
• operating manual
  yes
• User Guide
  yes
• packaging width
  302mm
• packing depth
  227mm
• packing height
  64mm
• package weight
  1.1kg
• broad
  250mm
• depth
  104mm
• height
  27mm
• Weight
  620g
• operating temperatur
  0 - 40 °C
• Storage temperature range
  -40 - 70?
• Operating relative humidity
  10 - 95%
• heat dissipation
  16.03 BTU/hr
• Power over Ethernet (PoE)
  no
• energy source
  AC
• AC input voltage
  220 - 240V
• AC input frequency
  50/60Hz
• Power consumption (standard operation)
  4.7W
