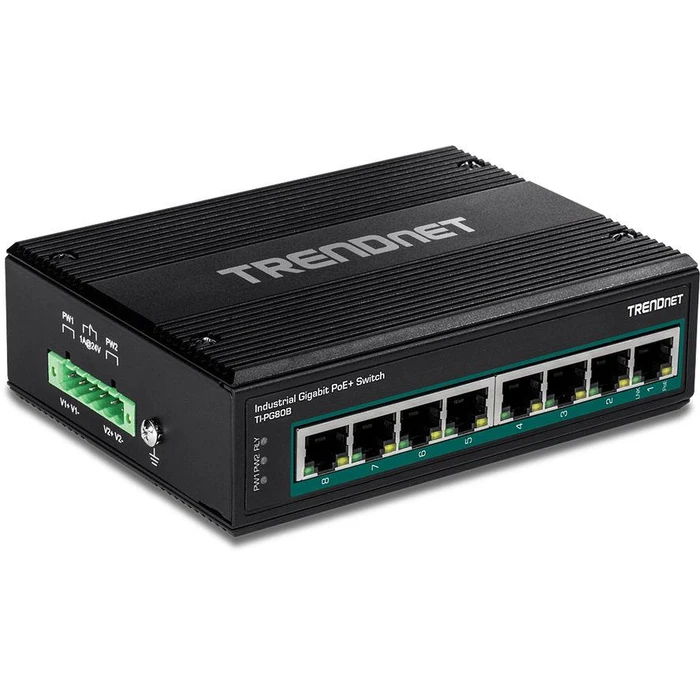

Network Switch Trendnet 8-Port Indus. Gigabit PoE+ DIN-Rail (24-56V)

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  8th
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• mesh standard
  IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
• 10G support
  no
• full duplex
  yes
• half duplex
  yes
• MAC address table
  4000 entries
• Routing/Switching Capacity
  16 Gbps
• transfer rate
  11.9 Mpps
• Jumbo frames support
  yes
• jumbo frames
  9000
• Data packet buffer memory
  1MB
• product color
  black
• housing material
  metal
• LED indicators
  yes
• International degree of protection (IP code)
  IP30
• wall mounting
  yes
• DIN rail mounting
  yes
• certification
  CE FCC IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5
• Mean Time Between Failures (MTBF)
  529765 h
• Quick Start Overview
  yes
• broad
  142mm
• depth
  105mm
• height
  36mm
• Weight
  622g
• operating temperature range
  -40 - 75?
• Operating relative humidity
  0 - 95%
• Power over Ethernet (PoE)
  yes
• Total power Power over Ethernet (PoE)
  200W
• DC input voltage
  24 - 56V
• Power consumption (max.)
  5.3W
