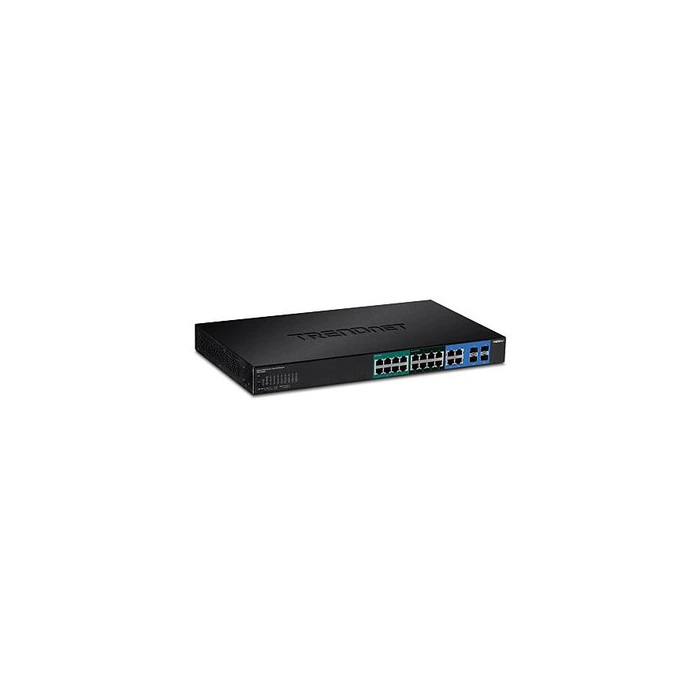

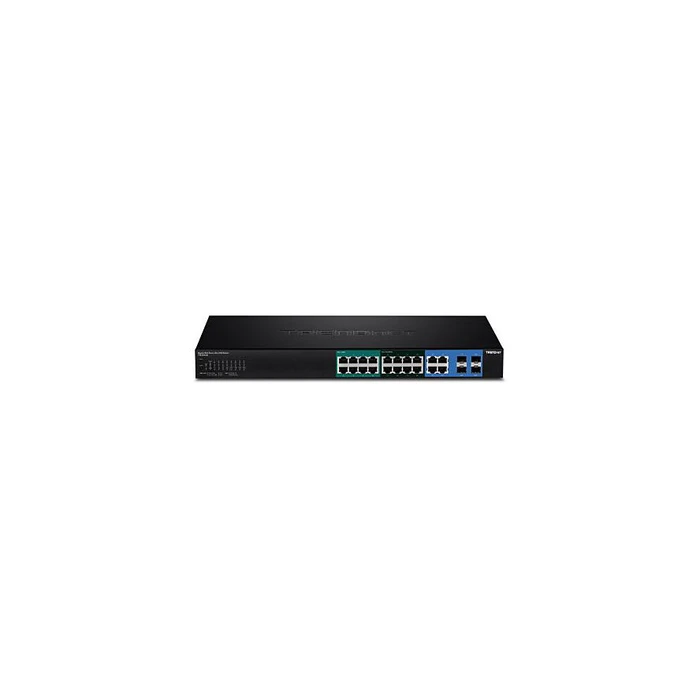

Network Switch Trendnet 20-port Gbit UPoE 370W Web Smart 19"

Technical Specifications

• Number of basic switching RJ-45 Ethernet ports
  24
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• Quantity of SFP module slots
  4
• mesh standard
  IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE.802.3az ,IEEE 802.3bt,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
• 10G support
  no
• Head of Line (HOL) blocking
  yes
• link aggregation
  yes
• Spanning Tree Protocol
  yes
• VLAN support
  yes
• Virtual LAN functions
  Multicast VLAN, Private VLAN, VLAN Identifier ( VLAN ID), Voice VLAN, Tagged VLAN
• MAC address table
  8000 entries
• Routing/Switching Capacity
  40 Gbps
• transfer rate
  29.8 Mpps
• Jumbo frames support
  yes
• jumbo frames
  10
• DHCP functions
  DHCP snooping
• IGMP snooping
  yes
• Supported security algorithms
  HTTPS,SNMP,SNMPv3,SSL/TLS
• Rack mount
  yes
• form factor
  1U
• product color
  black
• LED indicators
  yes
• number of fans
  2 fans
• certification
  CE, FCC, UL
• switch type
  managed
• Quality of Service (QoS) support
  yes
• Web-based management
  yes
• MIB support
  RMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q-VLAN, LA MIB IEEE 802.3ad, LLRMON MIB RFC 1271, IPV4 MIB RFC 1213, IPV6 MIB RFC 2465, GVRP MIB IEEE 802.1Q- VLAN, LA MIB IEEE 802.3ad, LLDP MIB IEEE 802.1AB, MLD SNOOPING MIB RFC 3019, PRIVATE VLAN MIB IEEE 802.1Q, DHCPSNOOP MIB RFC 2026, QOS MIB RFC 4323, SNMP MIB RFC 3415, STP MIB RFC 4318, PNAC MIB IEEE 802.1x, VLAN MIB IEEE 802.1q, DNS MIB RFC 1611, ACL MIB, BANDWIDTH CTRL MIB, LBD MIB, MIRROR MIBDP MIB IEEE 802.1AB,
• Compatible operating systems
  Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016
• noise level
  52.8dB
• buffer size
  412KB
• Mean Time Between Failures (MTBF)
  279589 h
• Supplied cables
  AC
• Quick Start Overview
  yes
• rack mount kit
  yes
• broad
  440mm
• depth
  250mm
• height
  44mm
• Weight
  3.86kg
• operating temperature range
  -5 - 50?C
• humidity in operation
  0 - 95%
• Power over Ethernet (PoE)
  yes
• Number of Power over Ethernet (PoE) ports
  8th
• Number of Power over Ethernet plus (PoE+) ports
  8th
• Power over Ethernet (PoE) performance per port
  60W
• Total power Power over Ethernet (PoE)
  370W
• AC input voltage
  100 - 240V
• AC input frequency
  50-60Hz
• Power consumption (operating)
  25.2W
